Nikon Eclipse E400 User Manual

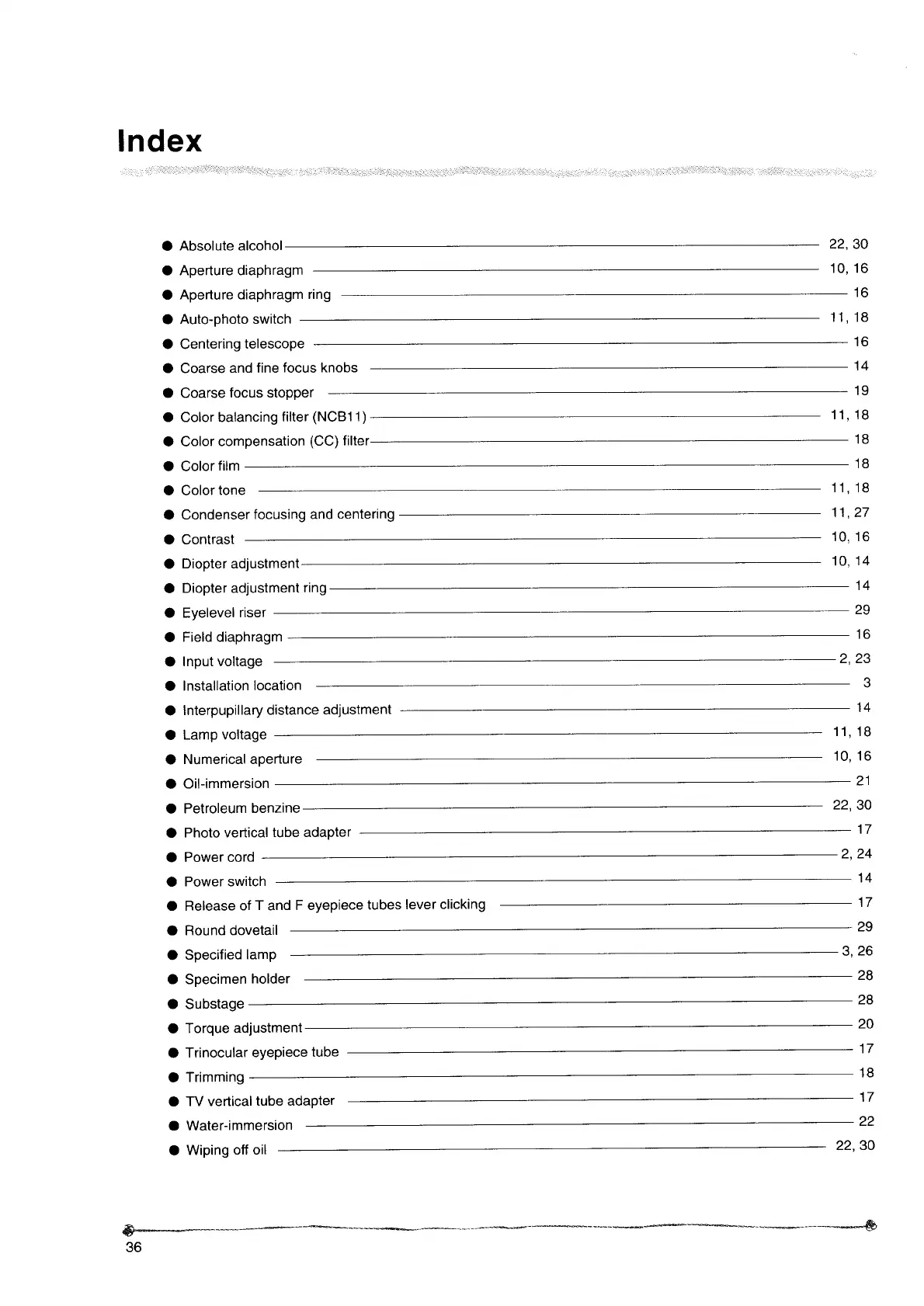

index
@ Absolute alcohol 22, 30
@
Aperture
diaphragm
10,
16
® Aperture diaphragm ring 16
© Auto-photo switch 11,18
© Centering telescope 16
© Coarse and fine focus knobs 14
© Coarse focus stopper 19
© Color balancing filter (NCB11) 11, 18
@ Color compensation (CC) filter 18
©
Color
film
18
© Color tone 11, 18
@ Condenser focusing and centering 11,27
@ Contrast 10, 16
@
Diopter
adjustment
10,
14
©
Diopter
adjustment
ring
14
@
Eyelevel
riser
29
@
Field
diaphragm
16
© Input voltage 2,23
© Installation location 3
©
Interpupillary
distance
adjustment
14
©
Lamp
voltage
11,
18
@
Numerical
aperture
10,
16
@
Oil-immersion
21
©
Petroleum
benzine
22,
30
@
vertical
tube
adapter
17
@
Power
cord
2,24
@
Power
switch
14
©
Release
of
T
and
F
eyepiece
tubes
lever
clicking
17
©
Round
dovetail
29
©
Specified
lamp
3,
26
©
Specimen
holder
28
©
Substage
28
O
Torque
adjustment
20
©
Trinocular
eyepiece
tube
17
@
Trimming
18
O
TV
vertical
tube
adapter
17
O
Water-immersion
22
@
Wiping
off
oil
22,
30
A

Nikon Eclipse E400 Specifications

General

Type	Biological Microscope
Optical System	CFI60 Infinity Optical System
Nosepiece	Quadruple nosepiece
Magnification	40x to 1000x
Power Supply	AC 100-240V, 50/60Hz
Lamp Power	6V 30W
Eyepiece	10x
Objective Lenses	4x, 10x, 40x, 100x
Stage	Mechanical stage
Focus	Coaxial coarse and fine focusing
Condenser	Abbe condenser, N.A. 1.25
Observation Tube	Binocular
Stage Dimensions	134mm
Interpupillary Distance Adjustment	50-75mm
Diopter Adjustment	+/- 5 diopters
Illumination	Built-in Koehler illumination
