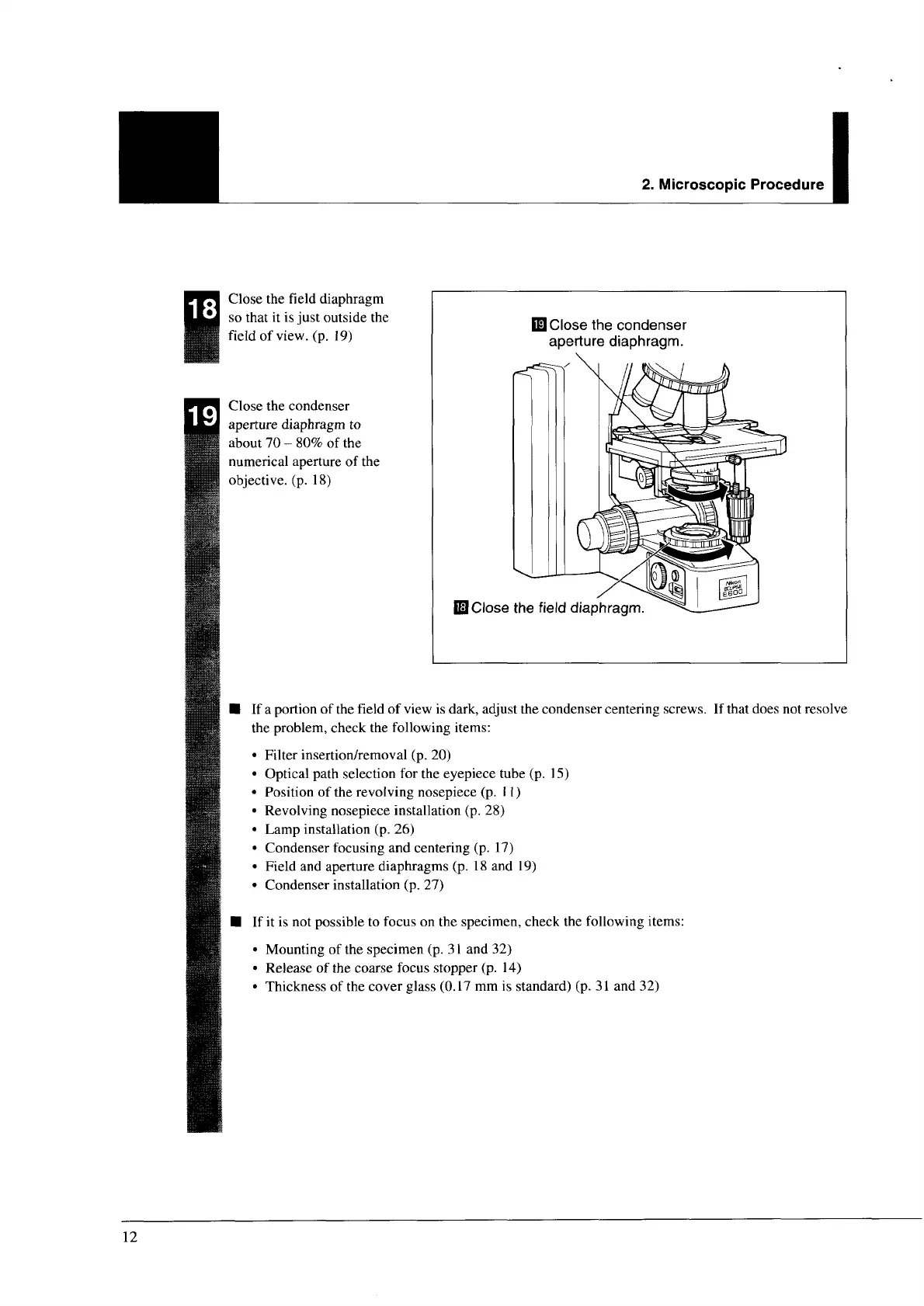

Page #13 background imageLoading...
Page #13 background image
2.
Microscopic
Procedure
Close
the
field
diaphragm
so
that
it
is
just
outside
the
lose
th
denser
field
of
view.
(p.
19)
EC
e
conden
aperture
diaphragm.
Close
the
condenser
aperture
diaphragm
to
¿about
70
—
80%
of
the
numerical
aperture
of
the
objective.
(p.
18)
I]
Close
the
field
diaphragm.
Cura
portion
of
the
field
of
view
is
dark,
adjust
the
condenser
centering
screws.
If
that
does
not
resolve
the
problem,
check
the
following
items:
*
Filter
insertion/removal
(p.
20)
¢
Optical
path
selection
for
the
eyepiece
tube
(p.
15)
*
Position
of
the
revolving
nosepiece
(p.
11)
*
Revolving
nosepiece
installation
(p.
28)
+
Lamp
installation
(p.
26)
*
Condenser
focusing
and
centering
(p.
17)
+
Field
and
aperture
diaphragms
(p.
18
and
19)
¢
Condenser
installation
(p.
27)
M
If
it
is
not
possible
to
focus
on
the
specimen,
check
the
following
items:
*
Mounting
of
the
specimen
(p.
31
and
32)
*
Release
of
the
coarse
focus
stopper
(p.
14)
¢
Thickness
of
the
cover
glass
(0.17
mm
is
standard)
(p.
31
and
32)
12
