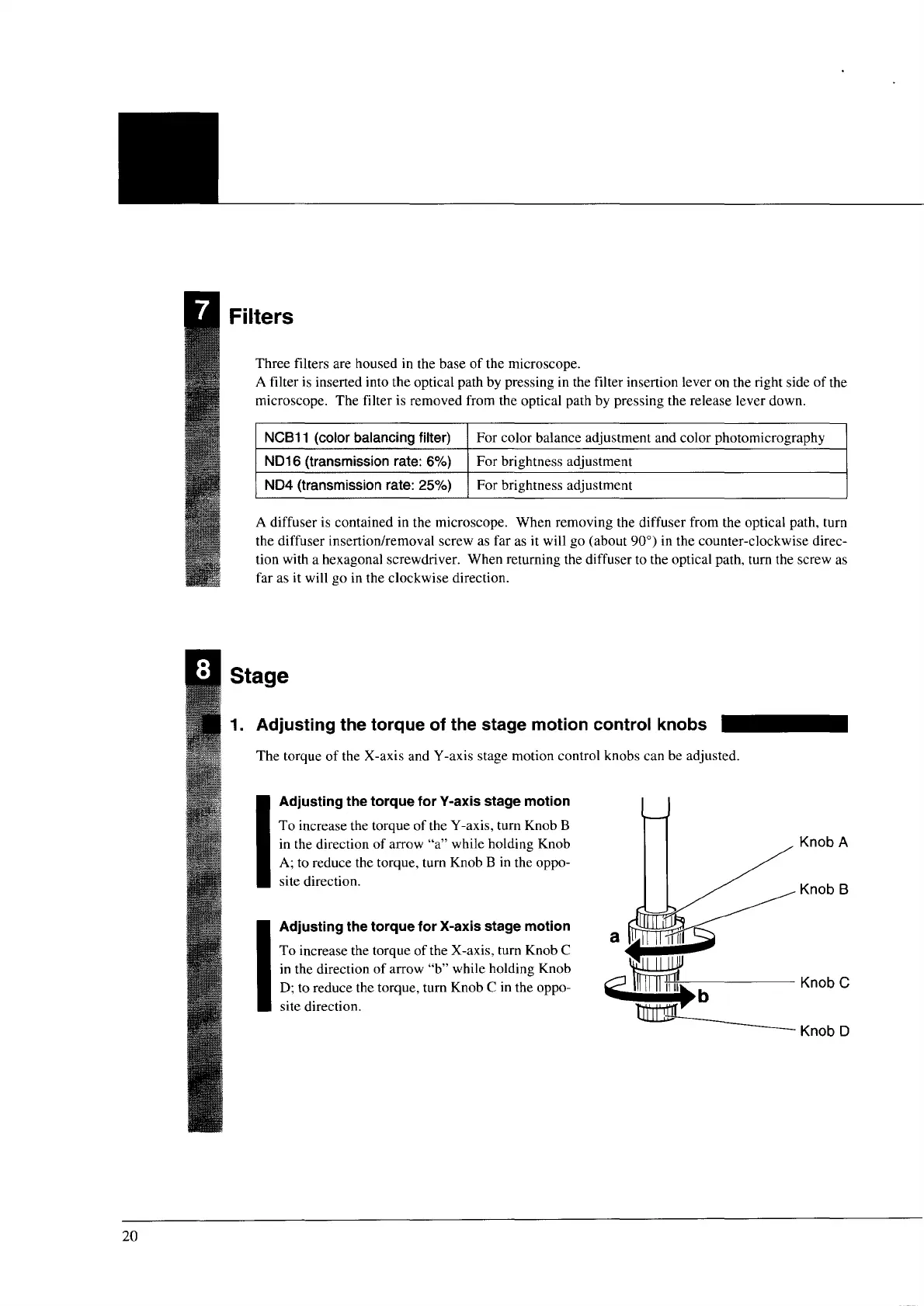

7 | Filters
Three filters are housed in the base of the microscope.
A filter is inserted into the optical path by pressing in the filter insertion lever on the right side of the
microscope. The filter is removed from the optical path by pressing the release lever down.
NCB11 (color balancing filter) | For color balance adjustment and color photomicrography
ND16 (transmission rate: 6%) | For brightness adjustment
ND4 (transmission rate: 25%) | For brightness adjustment
A diffuser is contained in the microscope. When removing the diffuser from the optical path, turn
the diffuser insertion/removal screw as far as it will go (about 90°) in the counter-clockwise direc-
tion with a hexagonal screwdriver. When returning the diffuser to the optical path, turn the screw as
far as it will go in the clockwise direction.
| 8 Stage
1. Adjusting the torque of the stage motion control knobs [HH
The torque of the X-axis and Y-axis stage motion control knobs can be adjusted.
Adjusting the torque for Y-axis stage motion
To increase the torque of the Y-axis, turn Knob B
in the direction of arrow “a” while holding Knob Knob A
A; to reduce the torque, turn Knob B in the oppo-
site direction. Knob B
Adjusting the torque for X-axis stage motion a à
il
To increase the torque of the X-axis, turn Knob C
in the direction of arrow “b” while holding Knob You
D; to reduce the torque, turn Knob C in the oppo- 1011 b Knob C
site direction. Tri
Knob D
20
