Nikon Eclipse E600 User Manual

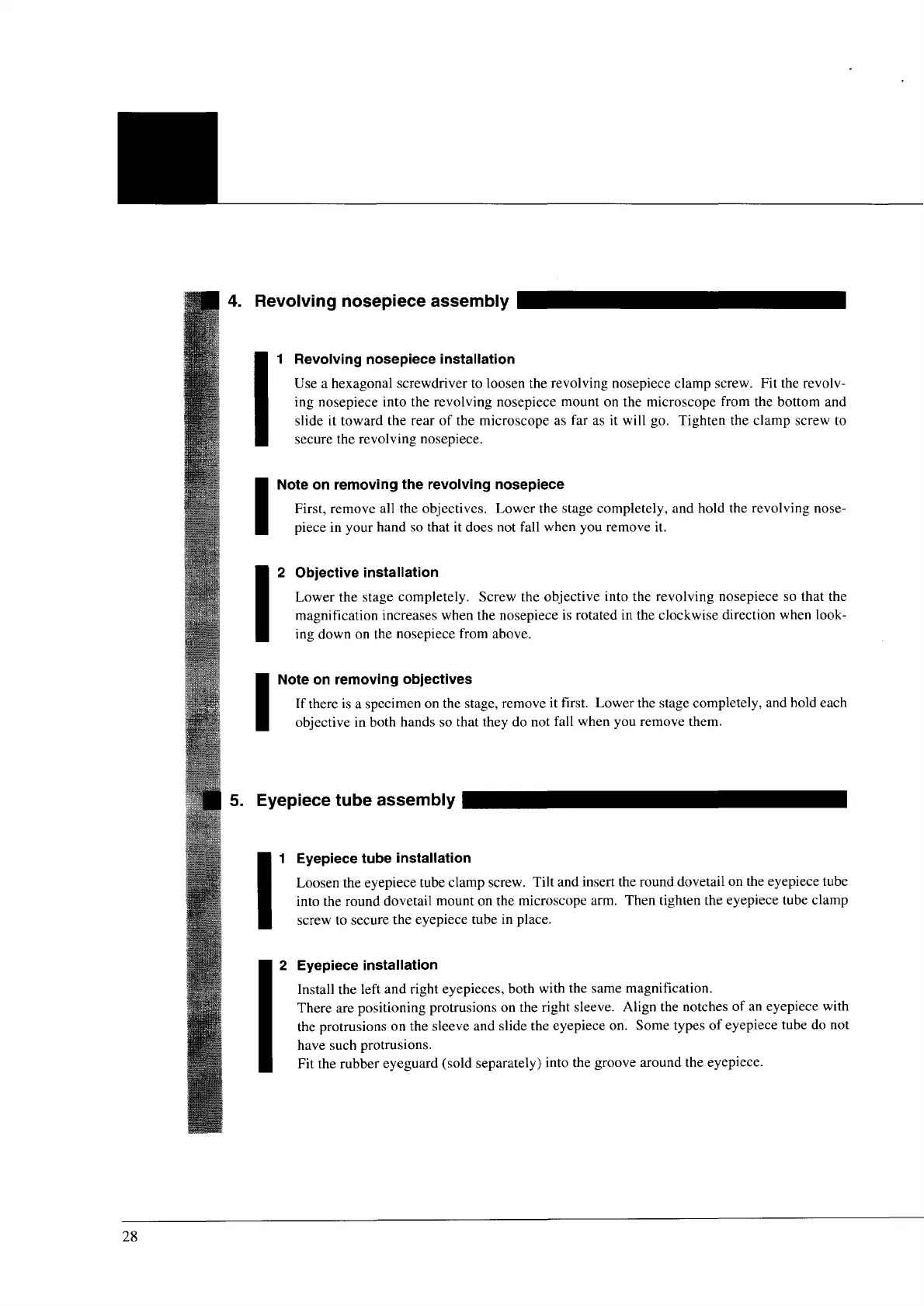

4. Revolving nosepiece assembly L LgŽLg„LÉLg2K„2="Yx2„».—
1 Revolving nosepiece installation
Use a hexagonal screwdriver to loosen the revolving nosepiece clamp screw. Fit the revolv-
ing nosepiece into the revolving nosepiece mount on the microscope from the bottom and
slide it toward the rear of the microscope as far as it will go. Tighten the clamp screw to
secure the revolving nosepiece.
Note on removing the revolving nosepiece
First, remove all the objectives. Lower the stage completely, and hold the revolving nose-
piece in your hand so that it does not fall when you remove it.
2 Objective installation
Lower the stage completely. Screw the objective into the revolving nosepiece so that the
magnification increases when the nosepiece is rotated in the clockwise direction when look-
ing down on the nosepiece from above.
Note on removing objectives
If there is a specimen on the stage, remove it first. Lower the stage completely, and hold each
objective in both hands so that they do not fall when you remove them.
| 5. Eyepiece tube assembly MM
1 Eyepiece tube installation
Loosen the eyepiece tube clamp screw. Tilt and insert the round dovetail on the eyepiece tube
into the round dovetail mount on the microscope arm. Then tighten the eyepiece tube clamp
screw to secure the eyepiece tube in place.
2 Eyepiece installation
Install the left and right eyepieces, both with the same magnification.
There are positioning protrusions on the right sleeve. Align the notches of an eyepiece with
the protrusions on the sleeve and slide the eyepiece on. Some types of eyepiece tube do not
have such protrusions.
Fit the rubber eyeguard (sold separately) into the groove around the eyepiece.
28
