Nikon eclipse lv150 - Microscope Part Identification: LV-UEPI; Main Components with LV-UEPI Illuminator

10
Names of Each Part
1
When Configured with the Illuminator LV-UEPI
*1: For DIC microscopy or simplified polarization microscopy.
*2: For DIC microscopy.
Names of Parts
6
x
6 STAGE
JAPAN
F
.
STOP A
.
STOP
BF
DF
100
0
0
100
IN
OU
T
Filter sliders
Vertical tube
Binocular part
Main body of
the microscope
Stage
Power indicator
Illuminator LV-UEPI
Lamphouse
DIC slider
*2
Tool holders
Analyzer slider
*1
Polarizer slider
*1
Objective
Nosepiece
Eyepiece tube LV-TI3
“CAUTION for
heat” symbol

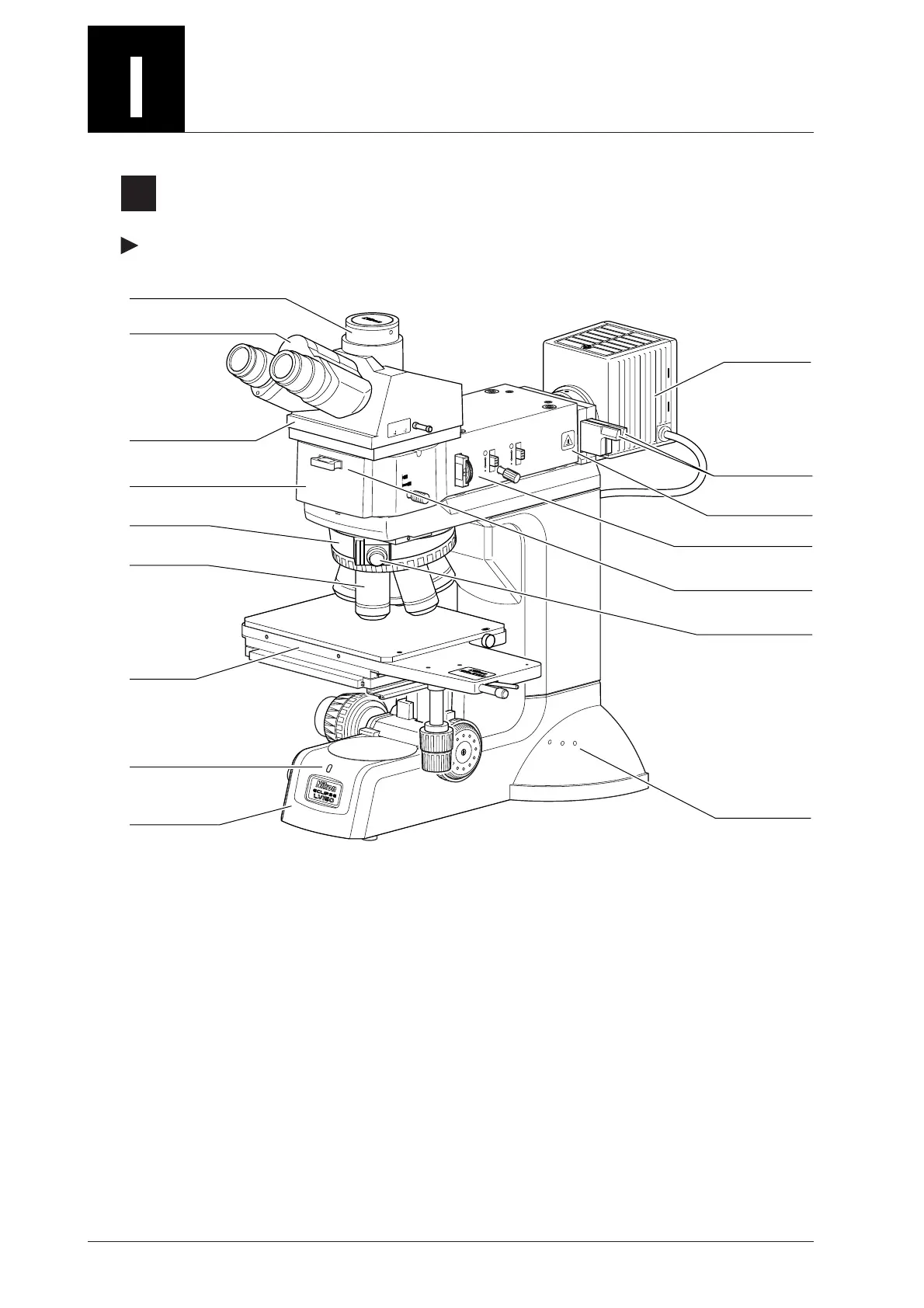

This drawing depicts the ECLIPSE LV150A microscope configured with the LV-UEPI
illuminator, LV-TI3 eyepiece tube, LV-LH50PC lamphouse, 6x6 stage, and attachments for DIC
microscopy.
