29

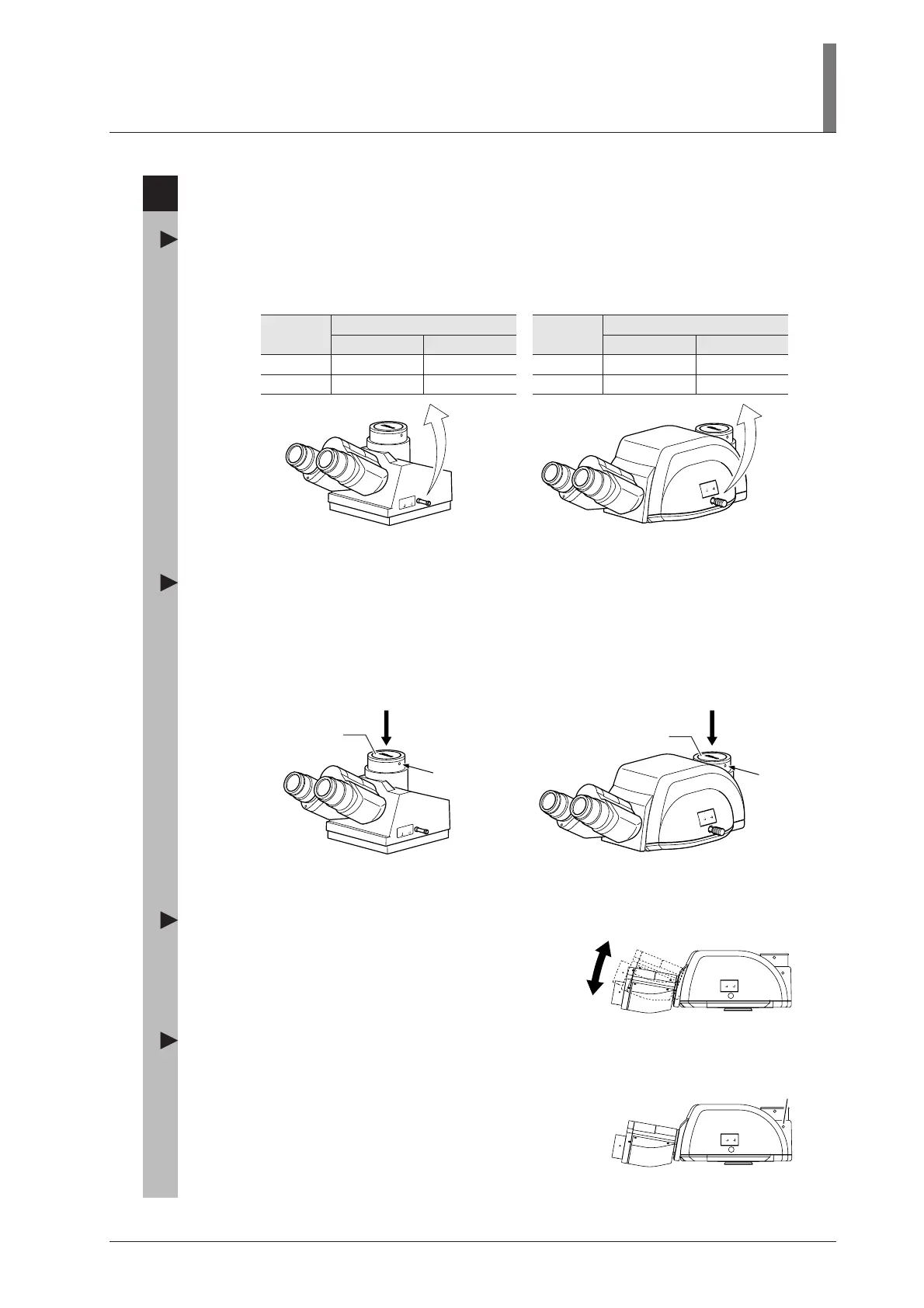

III. Operation of Each Part
4
Eyepiece Tube
Optical path selection
The optical path selection lever can be used to switch between the proportions of light reaching the
binocular part and the vertical tube.
Vertical tube adapters
When attaching photomicrographic equipment or TV camera to the vertical tube of the trinocular
eyepiece tube, you must first mount the adapter (photomicrographic vertical tube adapter or direct
C-mount adapter; both sold separately). Insert the adapter into the vertical tube and secure it with
the clamp screw using a hexagonal screwdriver.
100 0
0
100
IN OUT
100 20
0
100
IN
OU
T
LV-TT2
Lever
position
Binocular part Vertical tube
Light proportion
100IN 0
0OUT 100
Lever
position
Binocular part Vertical tube
Light proportion
100IN 0
20OUT 80
Eyepiece tube LV-TI3 Eyepiece tube LV-TT2
100 20
0
100
IN
OUT
LV-TT2
100
0
0
100
IN OUT
Cap
Eyepiece tube LV-TI3 Eyepiece tube LV-TT2
Clamp screw
Vertical tube adapter
Cap
Clamp screw
Vertical tube adapter
Angular adjustment of binocular part (for the LV-TT2 only)
With the trinocular eyepiece tube LV-TT2, the angle of
the binocular part can be adjusted. Adjust it to an easily
viewable angle.
Centering the binocular part (for the LV-TT2 only)
The binocular part and the vertical tube part of the eyepiece
tube are centered before the shipping, so usually they can be
used with no adjustment.
But some cameras are not aligned their centers of the CCD
to the mount. You can center the vertical part by adjusting
two centering screws on the back of the vertical tube for
such cameras.
100 20
0100
IN OUT
LV-TT2
100 20
0 100
IN OUT
LV-TT2
Centering screws
(two locations)
