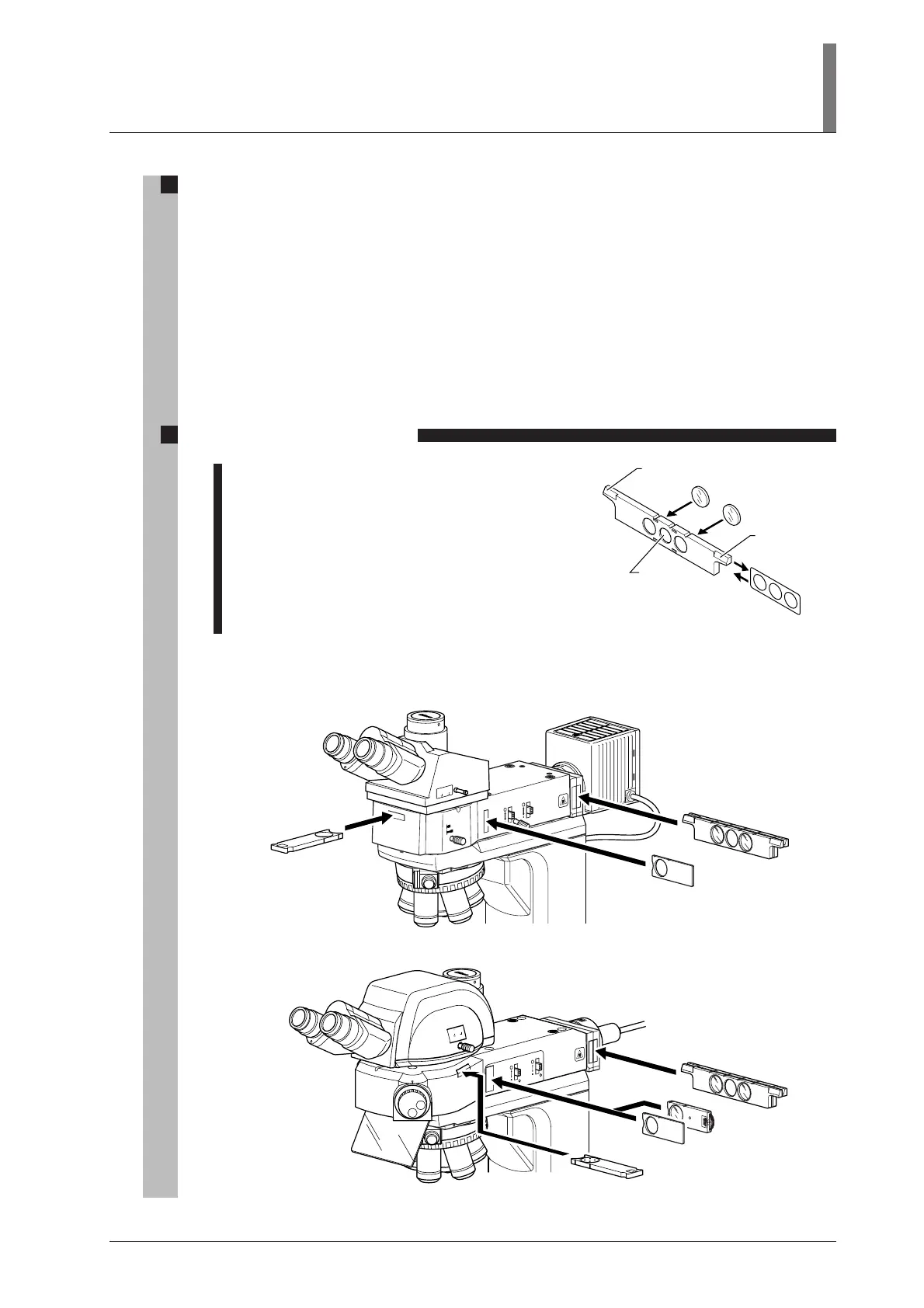

IV. Assembly
51
2.
Sliders (dummy sliders, polarizer slider, lambda plate slider, and analyzer slider)
• For the LV-UEPI:
The sliders are to be inserted into the slots on the front and the right side of the illuminator. In case
of dummy sliders, slide them in till the limit (so that the empty hole will be set in the optical path).
• For the LV-UEPI2:
The LV-UEPI2 has covers over the slider slots. Remove the covers before inserting sliders.
For sliders that are not in use, the covers can be set in place, eliminating the need of inserting
dummy sliders.
Note that the slots for polarizer slider and lambda plate slider share a single cover. When using only
a polarizer, therefore, insert a dummy slider in front of the polarizer slider.
3. Filter sliders and filters
1 Remove each filter slider from the illuminator.
(There are two sliders.)
2 Pull out the locking plate from the filter slider.
3 Insert the desired filter. (Two filters can be set on the
filter sliders.)
4 Reinstall the locking plate.
5 Affix the label to the appropriate lug of the filter
slider.
6 Attach the filter sliders to the illuminator.
Filter “B” label
Empty
Filter “A” label
Filter “A”
Filter “B”
Locking plate
ND4, ND16, and NCB filters are
already set on the filter sliders at the
factory. You can set an additional
filter in the empty position.
For the LV-UEPI
For the LV-UEPI2
