Nikon Optiphot - Arm Unit Disassembly

R-4104.A
DISASSEMBL Y PROCEDURE
3. Arm Unit
3. Arm Unit (OPTIPHOT, LABOPHOT)
!) Releasing HS set screws @§3> x4 (LABOPHOT: ~ x4), take oif rear coverQ.
2) Releasing HS set screws @x4, take oif dovetail @ (LABOPHOT: Screw @ and
dovetail
Q§j)) (Fig. 29).
3) Releasing HS screws @x4 (LABOPHOT: @x4), take off cover plate @.(Fig. 29).
Lubricant (G202)

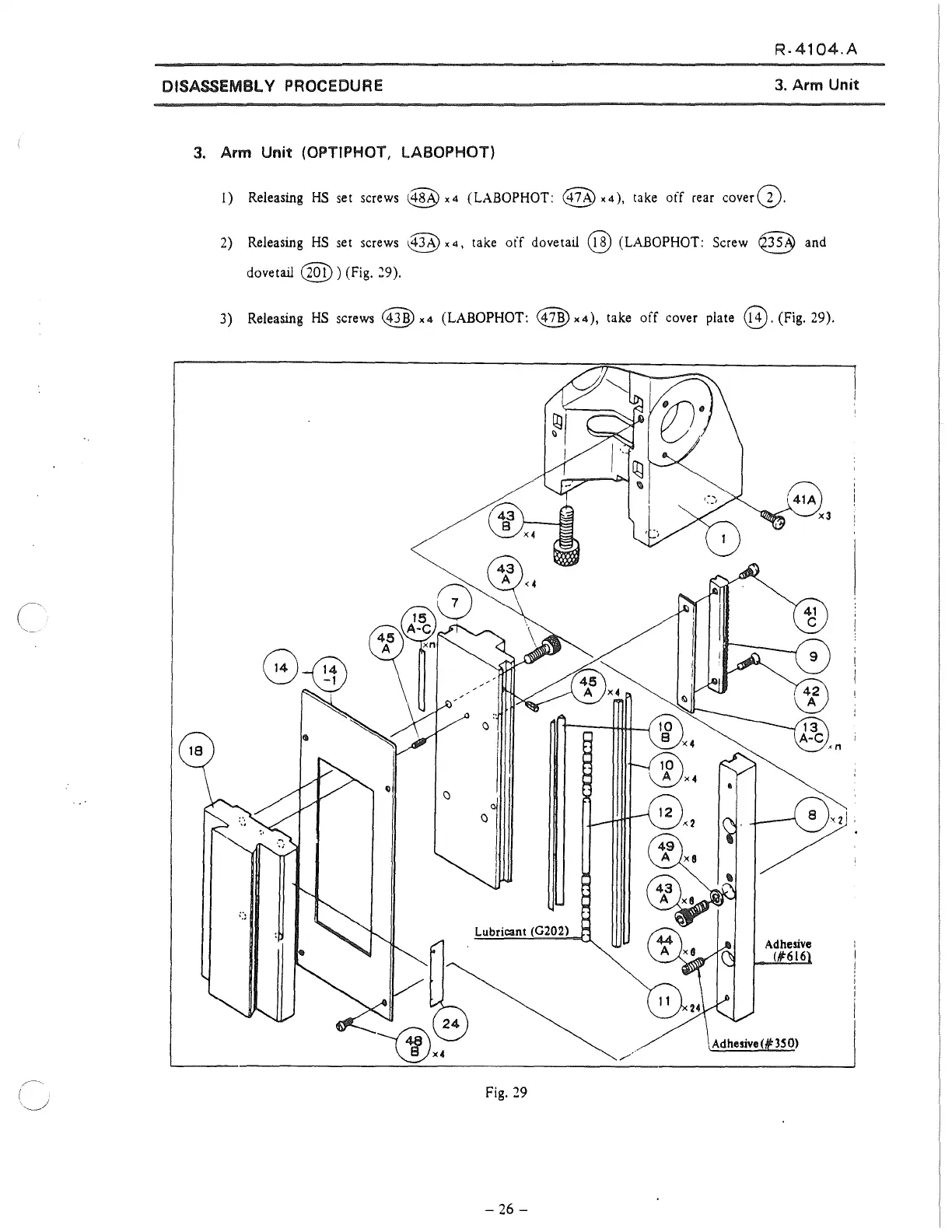

Fig. 29
- 26 -
Adhesive
(#'616
