Nikon SMZ25 User Manual

Chapter 1 Components
3
2
Microscopy System Using Diascopic Illumination and Epi-fluorescence
Illumination
2.1

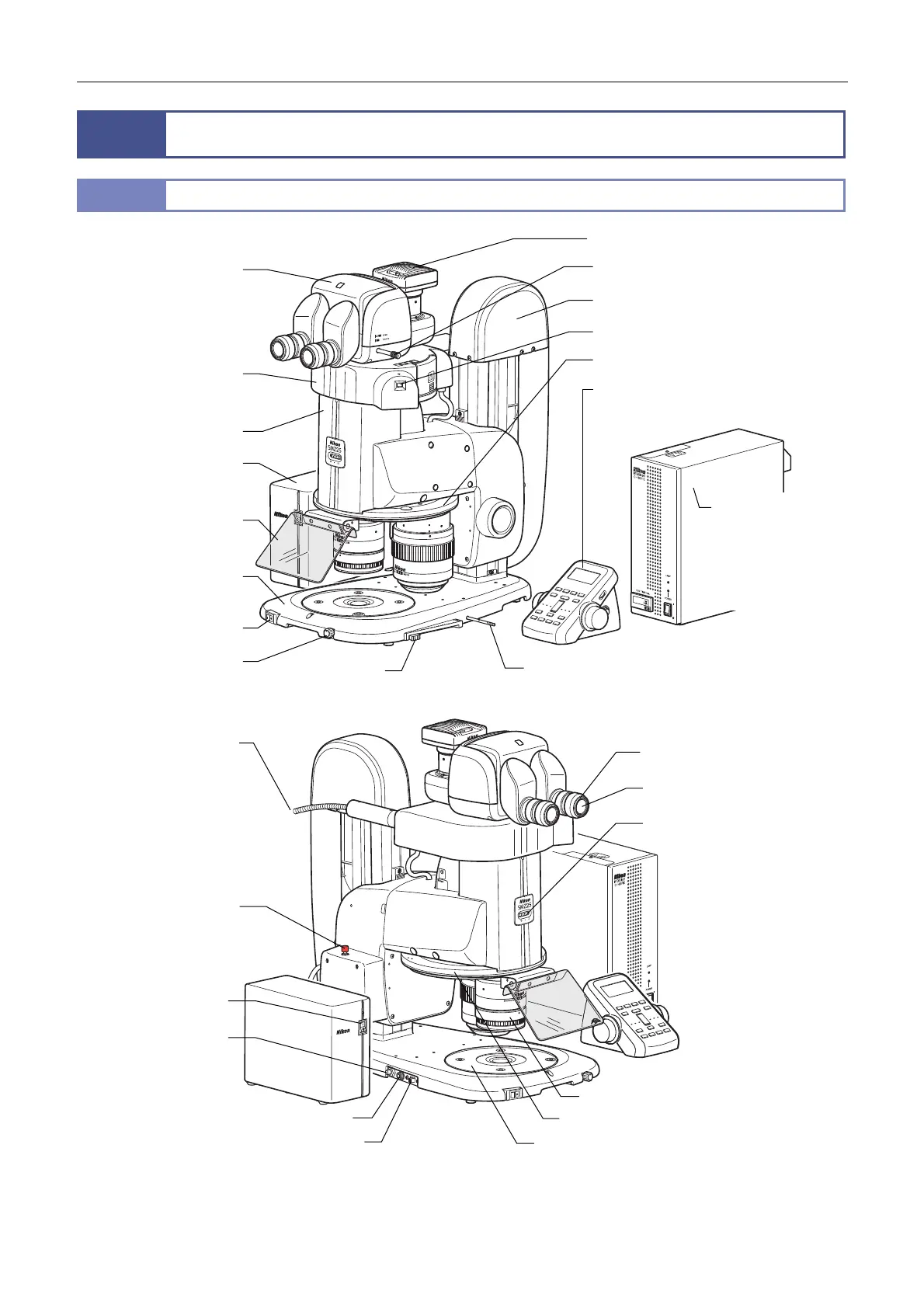

Names of the Devices and Operation Sections
For the names of the components needed for assembly and connections such as the fixing screws and connectors, see
Chapter 3, “3 Assembly Procedures.”
Optical path switching leve
r
P2-DBL LED Diascopic
Illumination Base
C-HGFIE HG
precentered fiber
illuminator
(Refer to the
instruction manual
supplied with the HG
precentered fiber
illuminator.)
P2-CTLA Control Box
SMZ25 Zooming Body
P2-RNI2 Intelligent Nosepiece
P2-EFLM Motorized
Epi Fluorescence
Attachmen
t
P2-MFU Motorized Focus Unit
DS camera
P2-TERG 100
Trinocular Tilting Tube
Eyepiece
Diopter adjustment ring
STOP switch
Turret address check window
Light shielding plate
LED powe
r
ON/OFF switch
LED brightness control
dial
HG fibe
r
(to the HG precentered
fiber illuminator)
Power switch
AC adapte
r
input terminal
OCC adjustmen
t
knob
P2-RC Remote Controlle
r
(See “2.2 Buttons on the
P2-RC Remote Controller.”)
LED brightness control terminal
LED brightness control selection switch
A
perture diaphragm dial
Objective
Nosepiece
Stage plate
Prism sheet IN/OUT leve
r

Nikon SMZ25 Specifications

General

Zoom Ratio	25:1
Eyepiece Tube Diameter	30 mm
Type	Stereo Zoom Microscope
Objective Lenses	1x, 2x
Working Distance	60 mm (with 1x objective)
Illumination	LED illumination
Motorization	Motorized options available
Ergonomics	Adjustable eyepieces
Optical System	Greenough optical system
