Nikon SMZ25 User Manual

Chapter 2 Microscopy Procedures
12
10

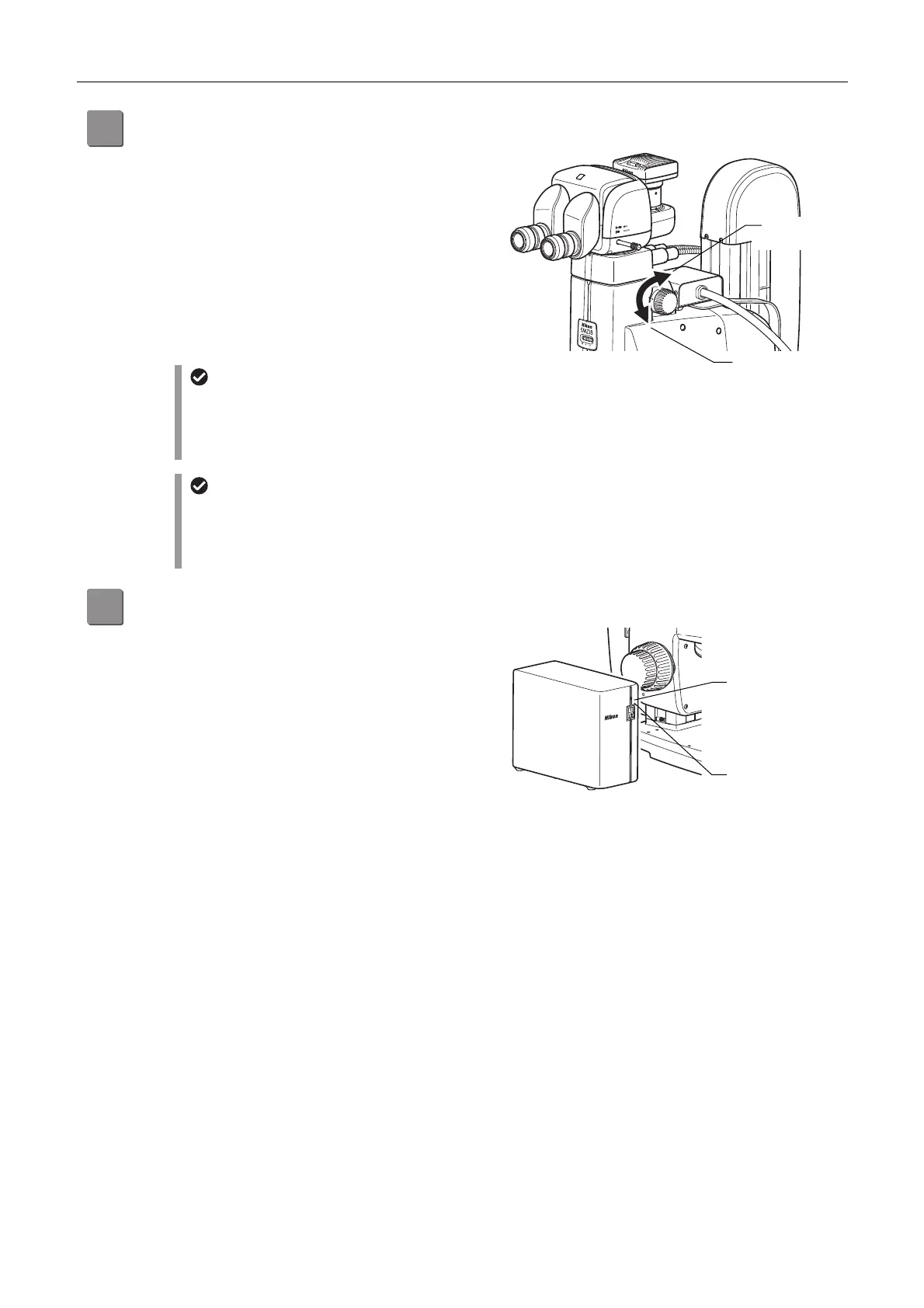

Change the magnification using the zoom knobs.
Turn the zoom knobs on the right and left of the SMZ18
Zooming Body to change the magnification. The figure
shows the turning directions of a knob and the
corresponding changes in magnification.
• Turning the knob backward: Magnification increase
• Turning the knob forward: Magnification decrease
The magnification continuously changes from 0.75x to
13.5x.
Zoom magnification values are marked on the zoom
knobs.
Zooming in/out
Click stop during image zooming
It is also possible to cause a click stop to occur at
predetermined magnification positions during
image zooming.
(See Chapter 8, “1.1 SMZ18 Zooming Body.”)
P2-CIA Coaxial Epi Illuminator
For the P2-CIA Coaxial Epi Illuminator, available
objectives and zooming ratios are restricted. For
details, see Chapter 8, “7.1 P2-CIA Coaxial Epi
Illuminator.”
11
Turn off the power after completing microscopy.
Turn off the P2-CTLB Control Box by pressing the power
switch to the “O” position.
Check that the power LED on the control box turns off.
A
lso turn off the LED light source for fiber illuminator.
Power off
Magnification
decrease
Magnification
increase
Power LED: Off
Power switch: “O”
position

Nikon SMZ25 Specifications

General

Zoom Ratio	25:1
Eyepiece Tube Diameter	30 mm
Type	Stereo Zoom Microscope
Objective Lenses	1x, 2x
Working Distance	60 mm (with 1x objective)
Illumination	LED illumination
Motorization	Motorized options available
Ergonomics	Adjustable eyepieces
Optical System	Greenough optical system
