Manual
In the ”Manual” menu it is possible to test the functions of the unit manually.
” ” indicates that the menu point flashes and can be set to another value
Use of t he CTS 600 panel :
- pr ess ESC t o go one st ep back i n t he menu
- pr ess qpt o move up or down i n a menu or t o
adj ust an act i vat ed menu
- pr ess ENTER t o act i vat e a menu
- pr ess ENTER t o conf i r m a menu
- pr ess OFF t o t ur n of f t he uni t
- pr ess ON t o t ur n t he uni t on
HEATING
SURFACE
AIR
EXCHANGE
DEFROST
TEMP.
CONTROL
ROOM
CONTROL
SERVICE
ENTER
INLET
CONTROL
RESTART
OFF
PRESET
OFF
MANUAL
OFF
MANUAL
”OFF”
ENTER
MANUAL
DEFROST
MANUAL
INLET
MANUAL
EXHAUST
MANUAL
VENT+CPR
MANUAL
VEN+HEAT
Manual test of ventilation
& heat. Under test there
are 50% signal to the
heating surface
Manual test of ventilation
& compressor
Manual test of exhaust
Manual test of inlet
Manual test of the
defrost function.
Manual test de-activated
(normal working)
MANUAL
FLAPS
Manual test of flaps

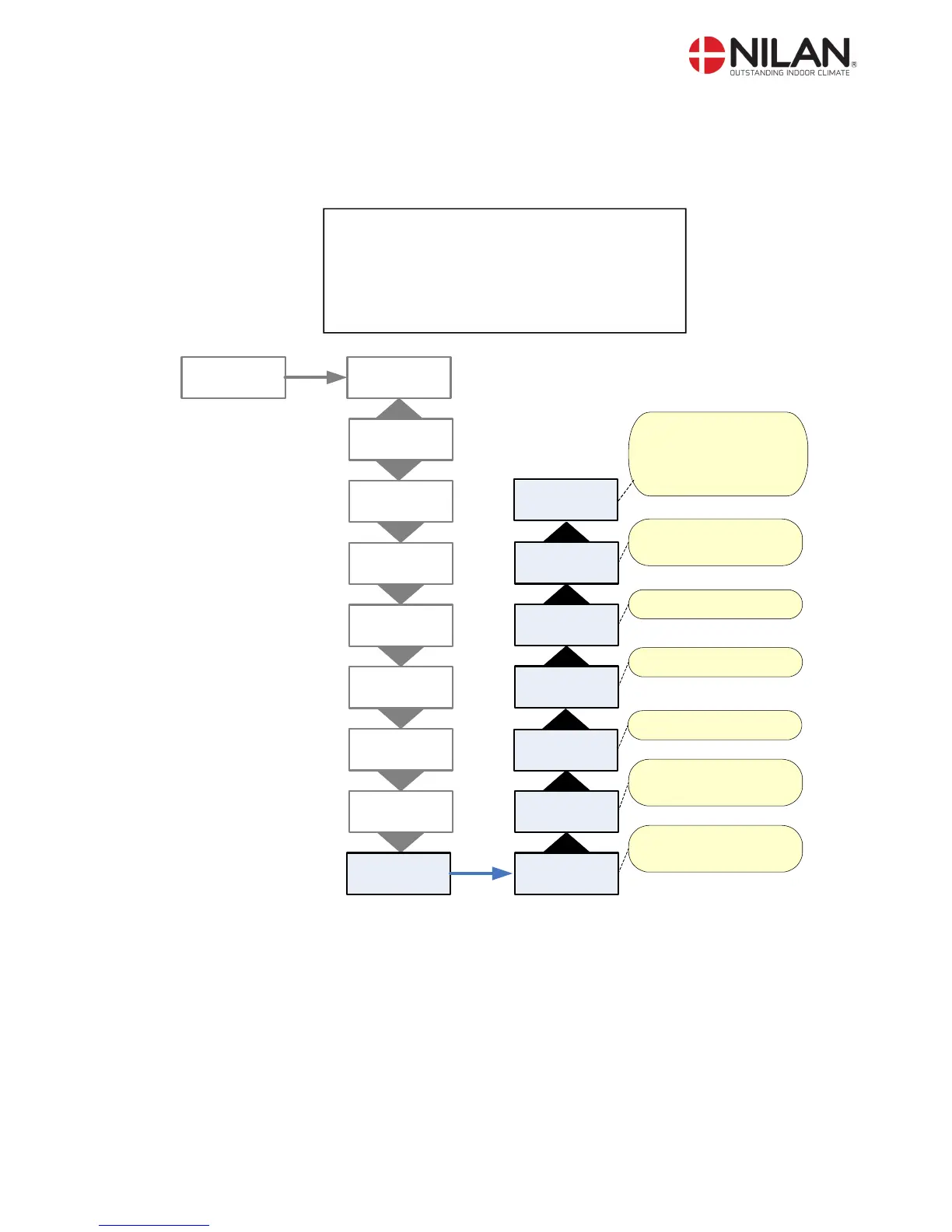

Figure 16: The "Manual" menu
