A-6 - FORM NO. - 56041820 - SC750, SC800, SC750 ST, SC800 ST
KNOW YOUR MACHINE
As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to an item
shown on these pages unless otherwise noted. Refer back to these pages whenever necessary to pinpoint the location of an item mentioned in
the text. NOTE: Refer to the service manual for detailed explanations of each item illustrated on the next 4 pages.

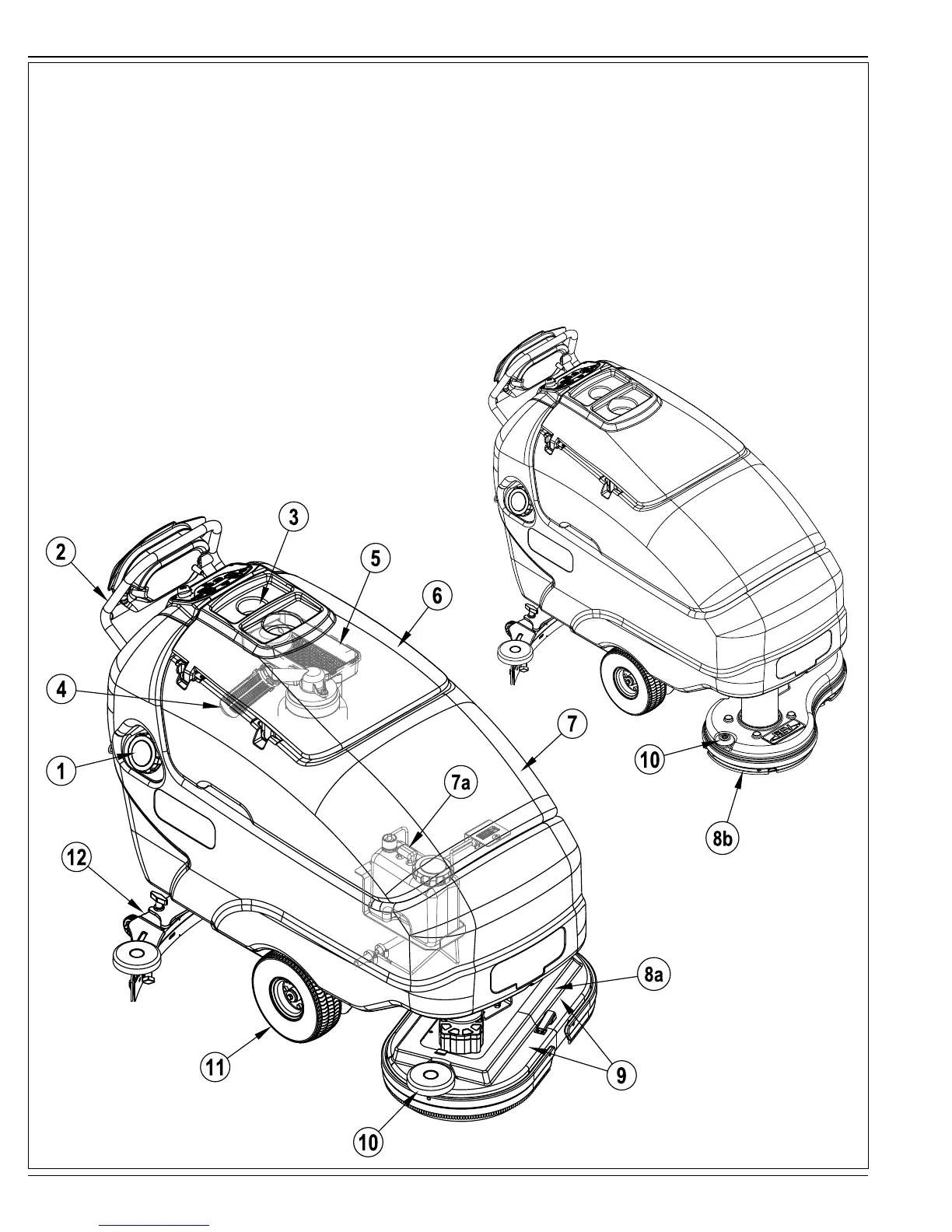

1 Solution Tank Fill
2 Operator Control Handle
3 Bottle Holders
4 Recovery Tank Shutoff Float
5 Debris Tray
6 Recovery Tank Lid
7 Recovery Tank (Detergent Cartridge Access Cover)
7a Detergent Cartridge (EcoFlex models only)
8a Scrub Deck (Disc models)
8b Scrub Deck (REV model)
9 Brush Housings (include Bristle Skirt)
10 Scrub Deck Bumper Wheel
11 Drive Wheel
12 Squeegee Assembly
To Next Page
