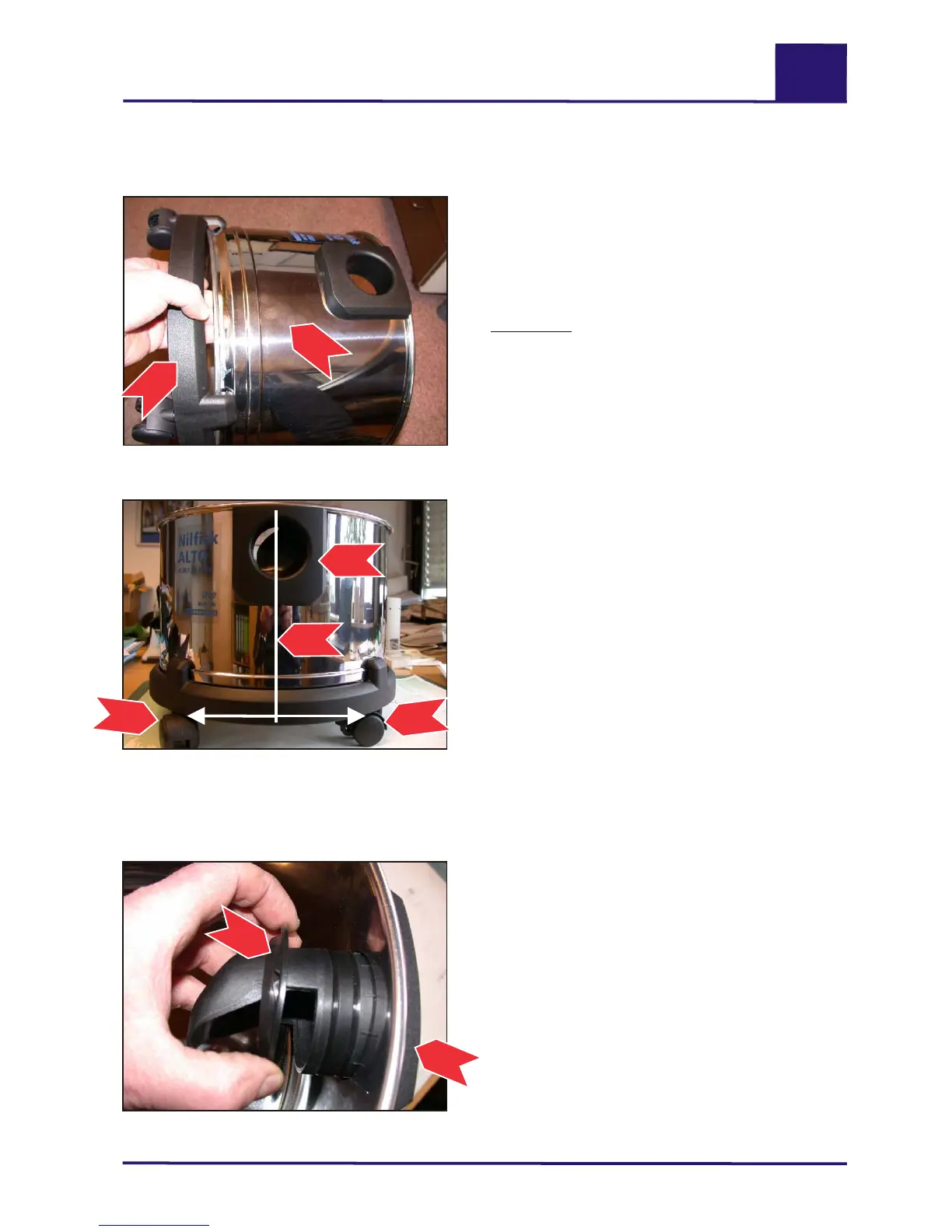

2.1 Disassembling/assembling the container ring (Aero 20 INOX only)
Pulling off container ring (2) by hand from
container (1).
Container / intake fitting
1.) Remove the suction head from the container (1)
2.) Put down the container (1) on its side. Firmly
pull off the container ring (2) by hand downwards
from the container (1) and remove it.
3.) Assembly:
Place the container (1) with its opening facing
downwards and press the container ring (2) onto
the container (1) as far as it will go, making sure
the intake fitting (3) is “centred” (5) between two
castors (4).
Aligning castors (4) “centred” (5) to intake
fitting (3).
2.2 Disassembling/assembling the intake fitting (Aero 20 INOX only)
1.) Remove the suction head from the container.
2.) Undo the retaining ring (1) by turning it while
pulling it off to the rear.
3.) Remove the intake fitting (2) from the
container.
4.) Assemble in the reverse order, making sure
the retaining ring (1) is positioned correctly.
Pulling off retaining ring (1) by hand from
intake fitting (2).
2 Container (Aero)
Aero 4155
1
2
Aero 4161
1
2
Aero 4157
3
4
4
5
