D
f s
Nil i
k
AL
T
O
Bud
y/A
e
ro_
V
r.
1.
0_
1
7
106
d
e
0

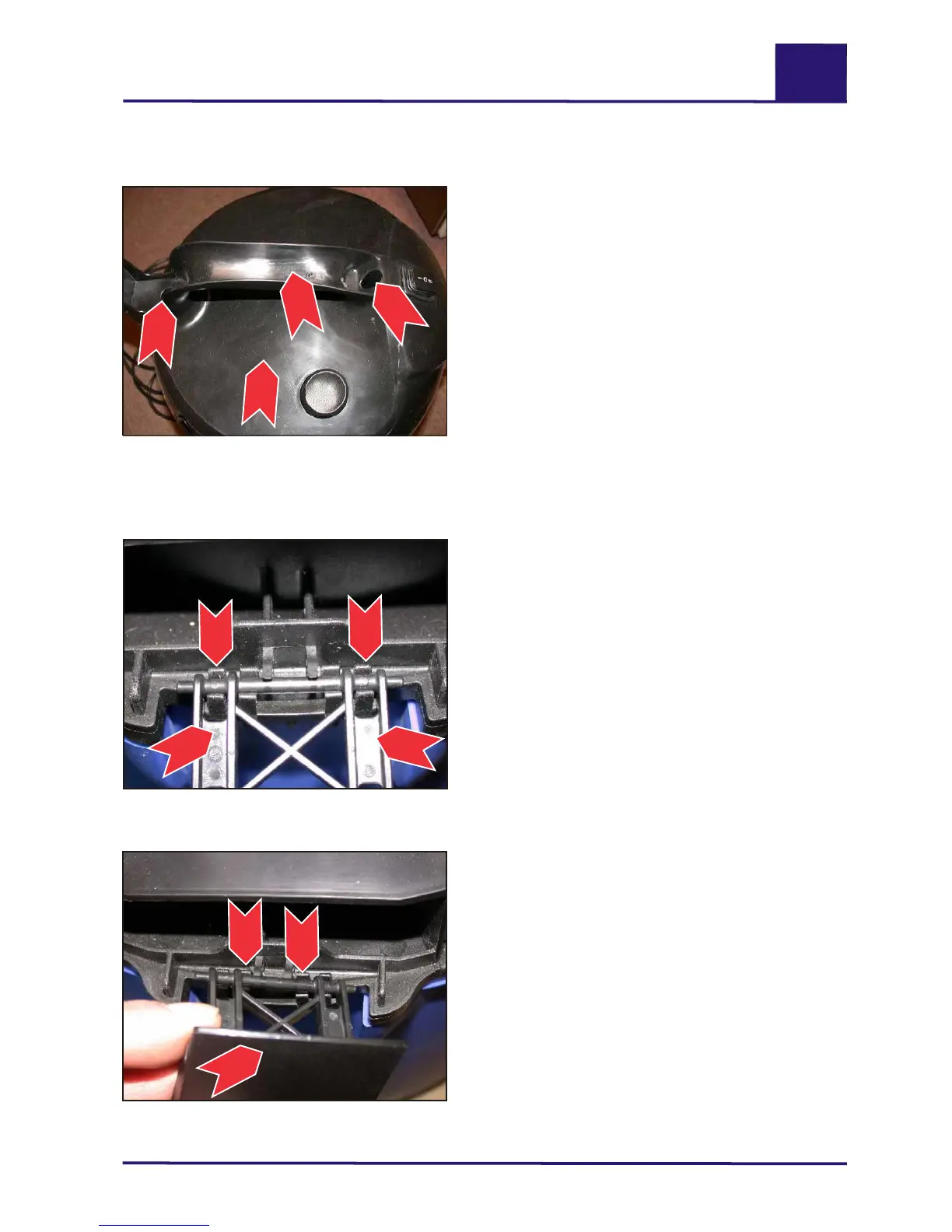

3.1 Disassembling/assembling the cover
3.2 Disassembling/assembling the locking clamp
1.) Undo the two screws (1) at the handle with a
Phillips screwdriver.
2.) Lift off the cover and put it down to the side.
3.) Assemble in the reverse order, making sure
cables are not squashed or caught up.
1.) Remove the cover ( see D/3.1 page 14).
2.) Pull out the clamp (1) laterally upward of the
snap-on connection (2).
3.) Assemble in the reverse order.
Cover / Clamps
Cover (2) with handle (3).
Locking clamp (1) mounted correctly on the
base.
3 Suction head / electrical components (Aero)
Pull out the clamp of the snap-on connecti-
on (2)
Aero 4092
1
1
3
2
Aero 4292
1
1
2
2
Aero 4293
1
2
2
evc
S
r
i
e
14/23
