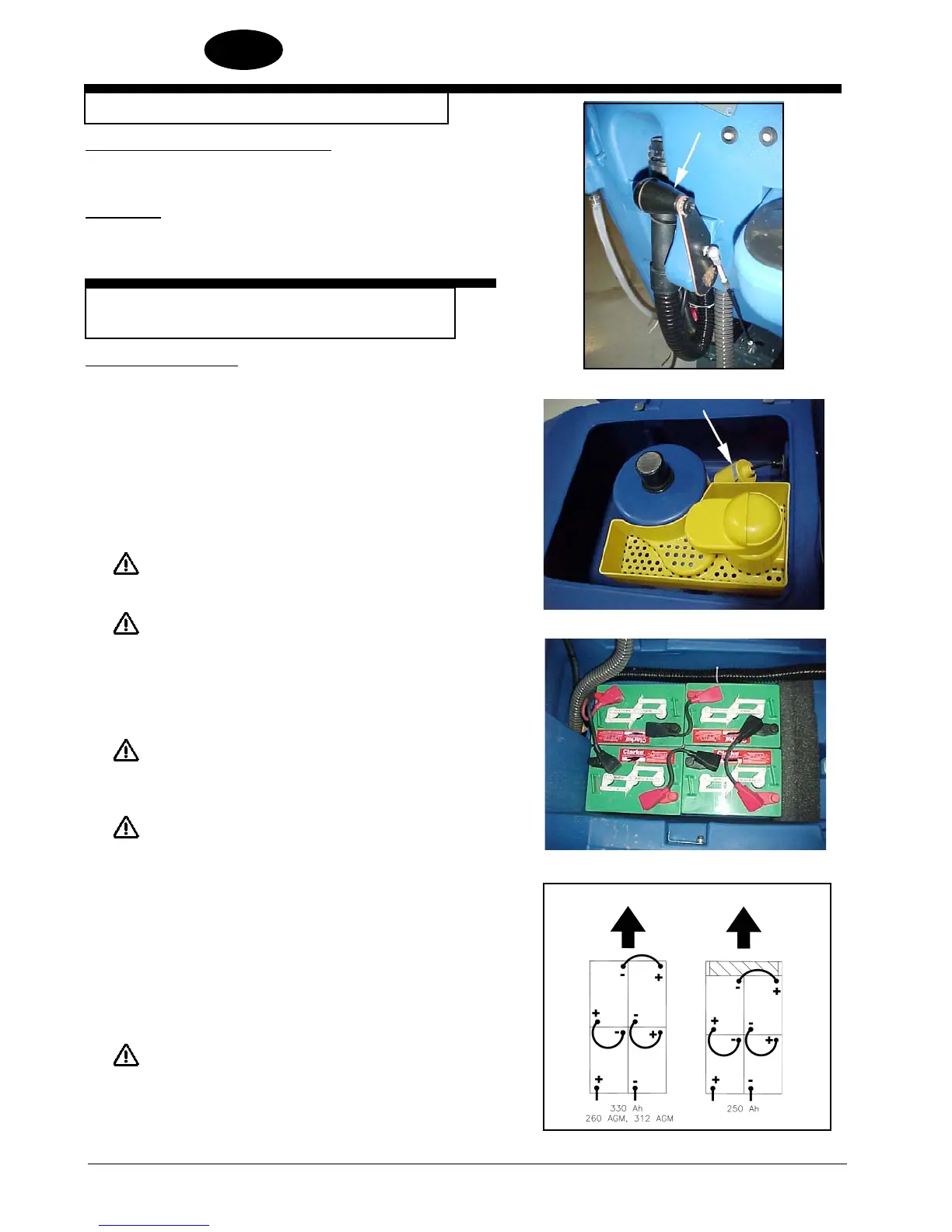

-10- FORM NO. 71492A Nilfi sk ALTO Operator’s Manual (EN) - SCRUBTEC 866, 871, 866, Boost 8 and 871C
Figure 2
Figure 3
Figure 4
Figure 5
FRONT
MACHINE CONTROLS AND FEATURES
Squeegee Lift Handle (Manual Squeegee Lift) (See fi gure 2)
The squeegee lift handle is located below the control handles in the center. It is
used to raise or lower the squeegee.
Float Shut Off (See Figure 3).
The shut-off switch for the vac motor is located in the recovery tank. It automati-
cally turns off the vac motor when the recovery tank is full.
HOW TO PREPARE THE MACHINE
FOR OPERATION
How To Install The Batteries
This machine uses four - 6 volt batteries. The batteries are located in the battery
compartment under the recovery tank.
To install the batteries, follow this procedure:
1. Turn machine off. Set brake (if equipped).
2. Make sure recovery tank is empty.
3. Tip up the recovery tank to it’s full open position. See
fi gure 4.
CAUTION: Before raising the tank, be sure tank is
empty.
WARNING: Do not operate the machine while the
recovery tank is in the open position. The
tank can be accidentally bumped and it may
slam shut.
4. Place the batteries in the tray as shown in Figure 5.
WARNING: The batteries are heavy. Lifting batteries
without help could result in an injury. Get
help to lift the batteries.
WARNING: Working with batteries can be dangerous.
Always wear eye protection and protective
clothing when working near batteries. NO
SMOKING!
5. Connect the cables between batteries and install battery cable assembly
as indicated. See fi gure 5.
6. Join the connector from the battery pack to the connector on the control
panel.
7. Close recovery tank by slowly lowering the tank.
WARNING: Never charge any battery with an unsuitable
battery charger. Carefully follow the instruc-
tions by the manufacturer of the batteries
and battery charger.
revised 9/10
