Nixie Clock IN-14 - Clock Appearance Layout; IR Remote Control Function; Operation Beep Tones

IN-14(IN-8-2) Nixie Tube Clock Instructions http://www.nixieclock.org


Designer: YanZeyuan. China. Email: yanzeyuan@163.com Website: www.nixieclock.org  3/8

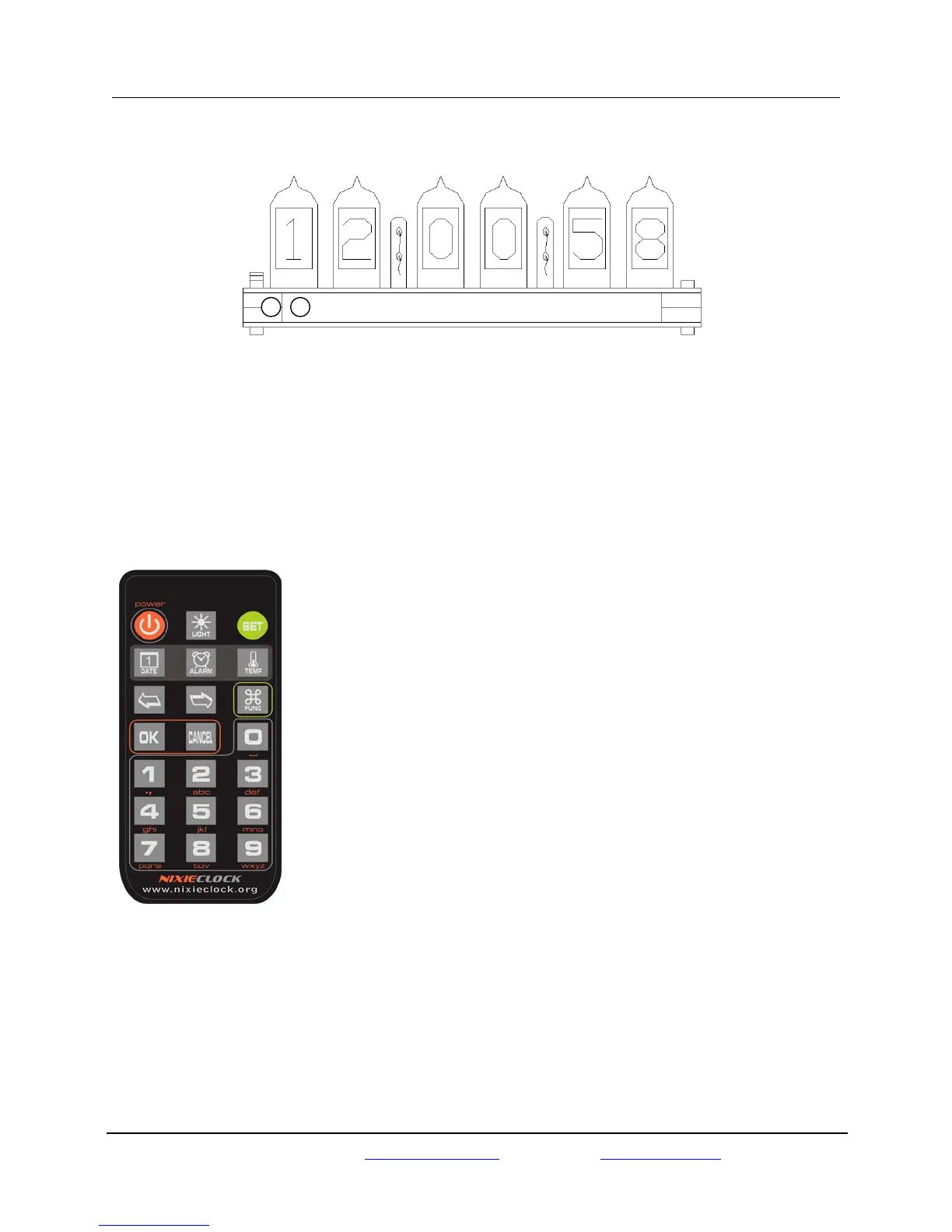

Appearance Layout
Num Name Num Name
① IR receiver ② Stainless steel screw
③ Nixie tubes ④ Neon colons
⑤ Acrylic base ⑥ Temp. sensor port
⑦ GPS port
IR Remote Control Function
1. POWER 2. BACKLIGHT 3. SET
4. DATE 5. ALARM 6. TEMPERATURE
7. LEFT 8. RIGHT 9. FUNCTION
10. OK 11. CANCEL 12. NUM 0
13. NUM 1 14. NUM 2 15. NUM 3
16. NUM 4 17. NUM 5 18. NUM 6
19. NUM 7 20. NUM 8 21. NUM 9
IR controller uses (1) CR2025 cell. Transportation rules may not
permit shipment with lithium battery installed. Please insert
battery or remove protective insulator to operate.
Operation Beep Tones
Beep Description Meaning
Be a short beep (low pitched) Power on/In set mode
Be a short beep (high pitched) Normal Operation
Be..bebe a long and two short beeps Power off
Bebebebe four short beeps Set Error/Cancel/Alarm
Be… a long beep Confirm and saved/GPS sync success
④
④
①
②
③
⑤
③ ③ ③ ③ ③
⑥⑦
