Nixie Tube Clock ‘Nixie QTC’
Issue 11a (11 December 2014)
www.pvelectronics.co.uk
- 18 -

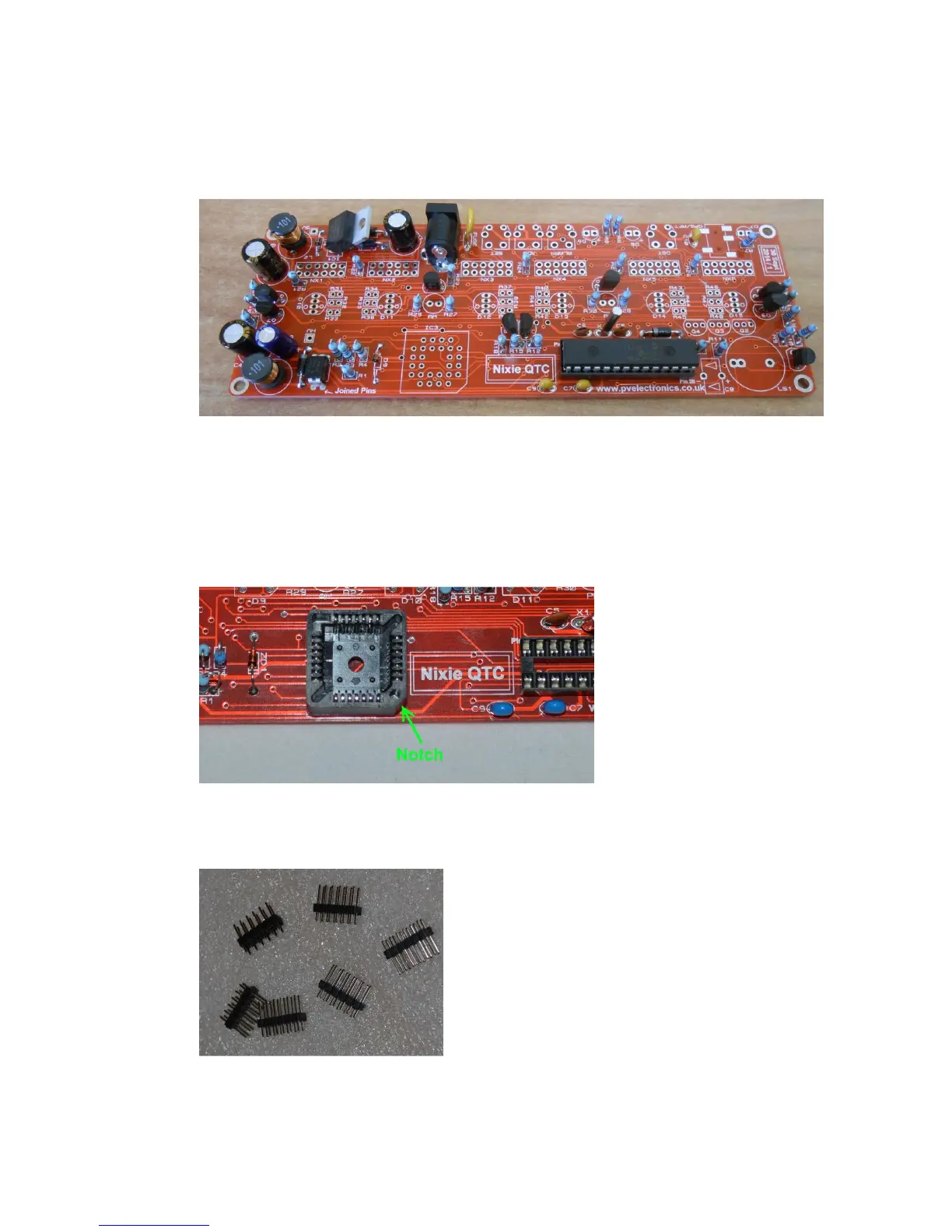

This is how the PCB should look now:
4.9 Socket for IC3
Align the notch on one corner of the socket with the marking on
the PCB. Be careful not to force in the socket if all pins are not
aligned. Ensure all pins are fully pushed through the holes before
soldering in place.
4.10 NX1 – NX6 (6X2 way male pin header)
