7. MOUNTING THE RGB TUBE LIGHTING COMPONENTS
7.1 RGB LEDs D10 – D15.
Q2 – Q4 (2N7000)
R31 – R48 (270 Ω)
Start by installing the 18 resistors R31 to R48 and then the 3
transistors Q2, Q3 and Q4.

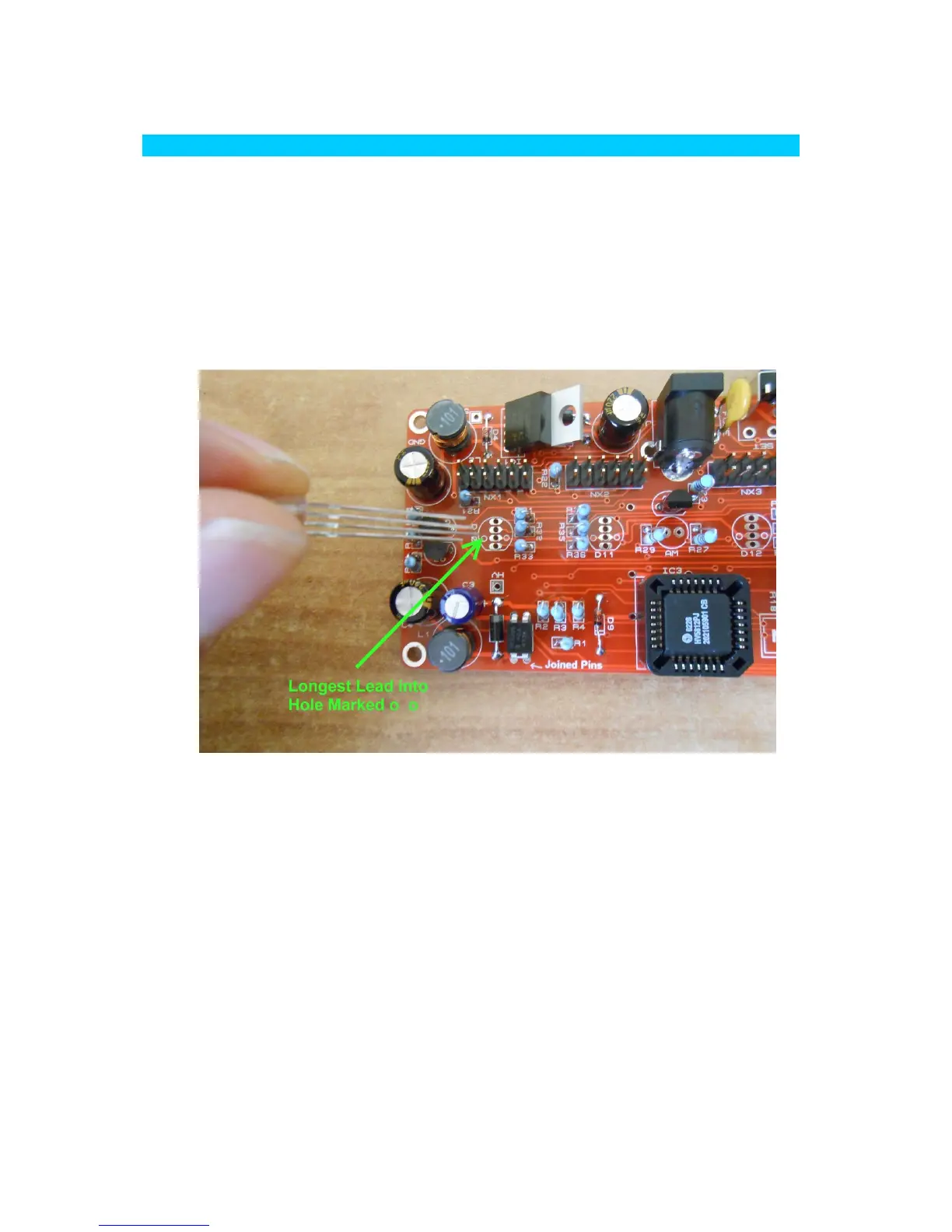

To install the RGB LEDs, first note the longest of the 4 leads and
ensure it goes into the pad marked with the two small circles:
