4.12 D7 (5mm Green LED)
D6, D8 (5mm Yellow LED)
SET, ADJ, ALARM, DST (Push switches)

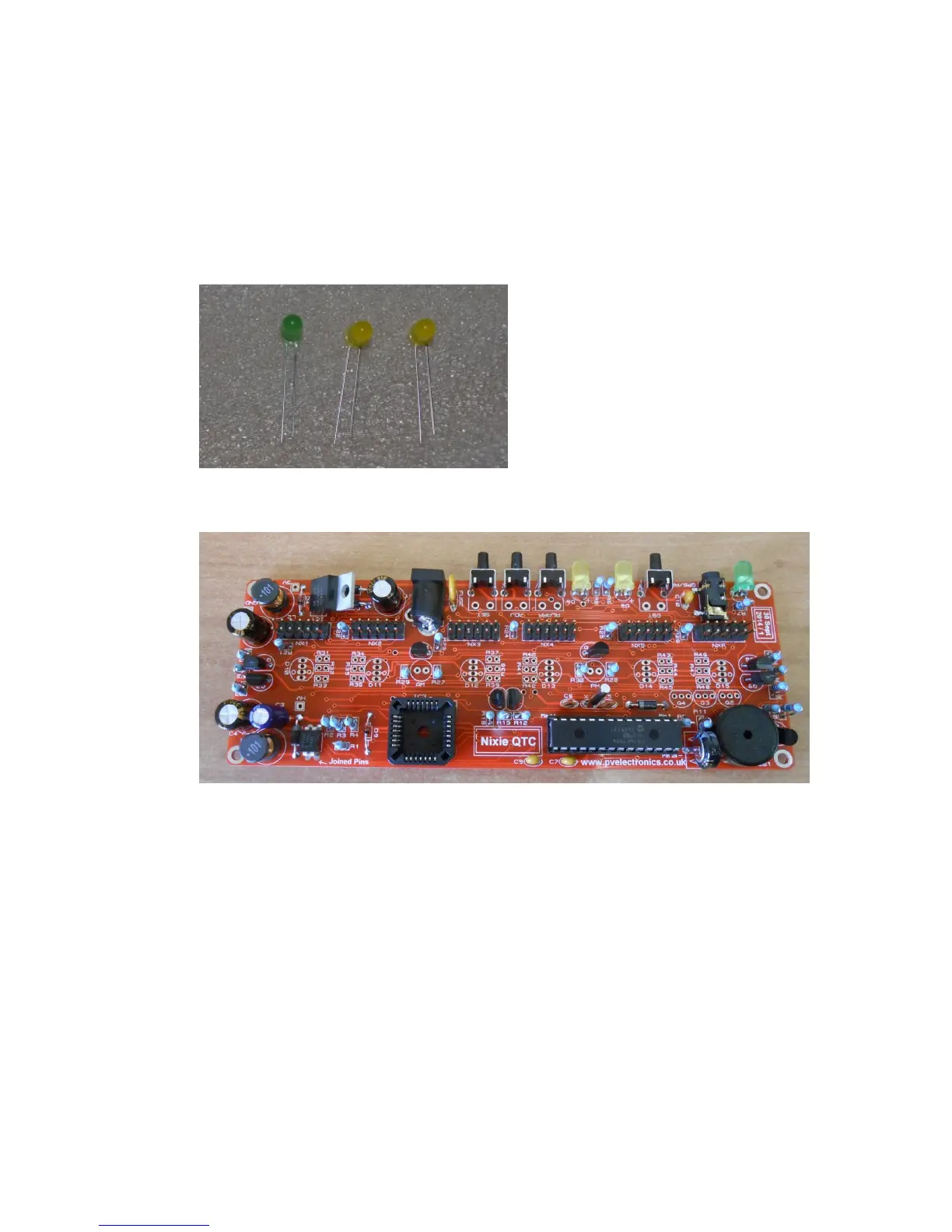

First, bend the leads of the LEDs as shown below, paying attention
to the longer (+) lead being on the left hand side. Then solder in
place with the body of the LED just touching the PCB.
Then place and solder the 4 push button switches:
4.13 AM, PM Neon Indicators
It is a good idea to install these components at the very end of the
assembly, when you have a better idea of a suitable height that
will look perfect with your design of case. So, do not install them
now but remember to install them some time later! Use small
pieces of the clear insulation supplied to prevent shorts on the
leads.
