Nixie Tube Clock ‘Nixie QTC’

Issue 11a (11 December 2014)

www.pvelectronics.co.uk

- 40 -

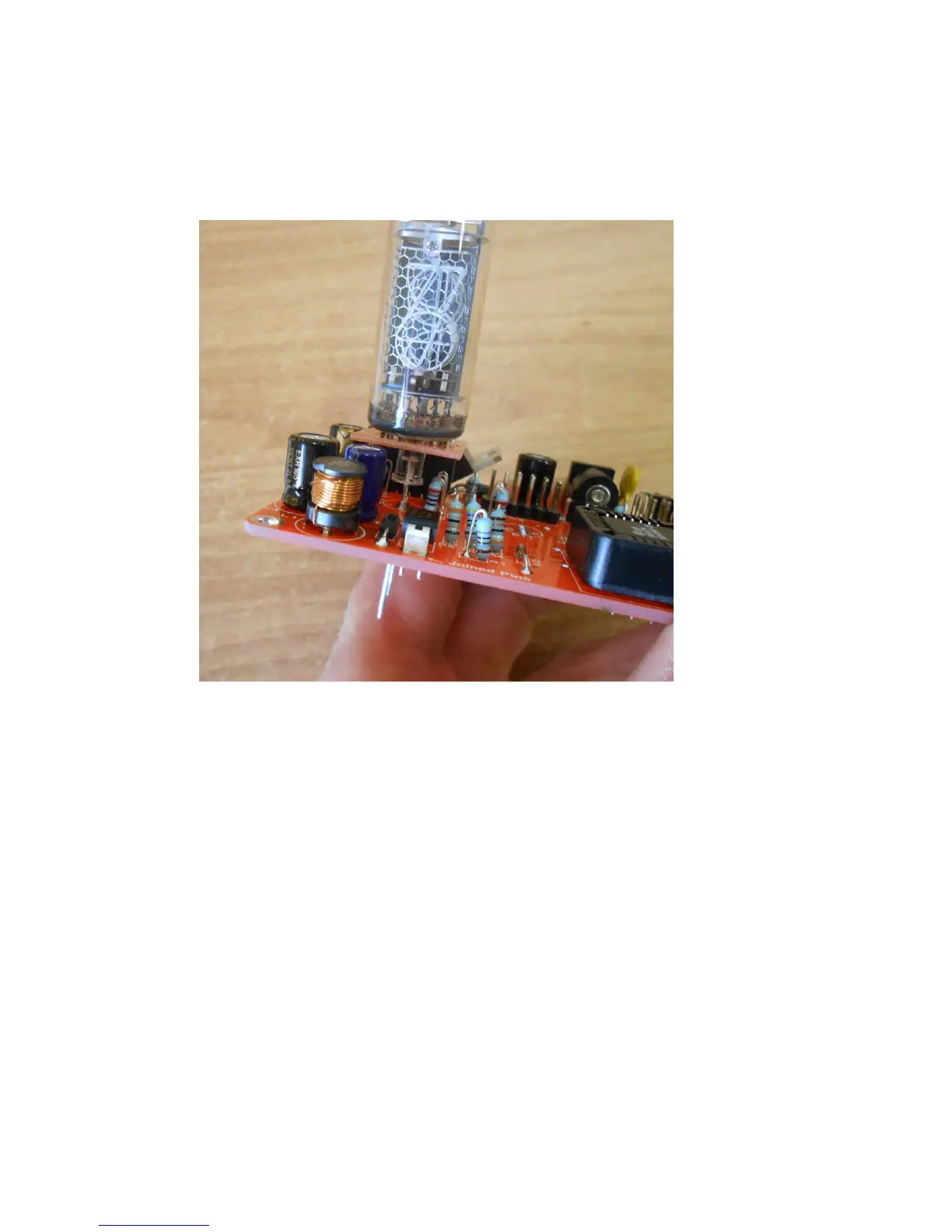

Then, place a Nixie Tube assembly into position on the 6X2

connectors. Push the RGB LED gently into position under the tube

and then solder in place:
