NOTE: IN-14 Cells supplied from August 2013 will not have
the two holes either side of the anode. Simply clip off the
two leads either side of the anode.

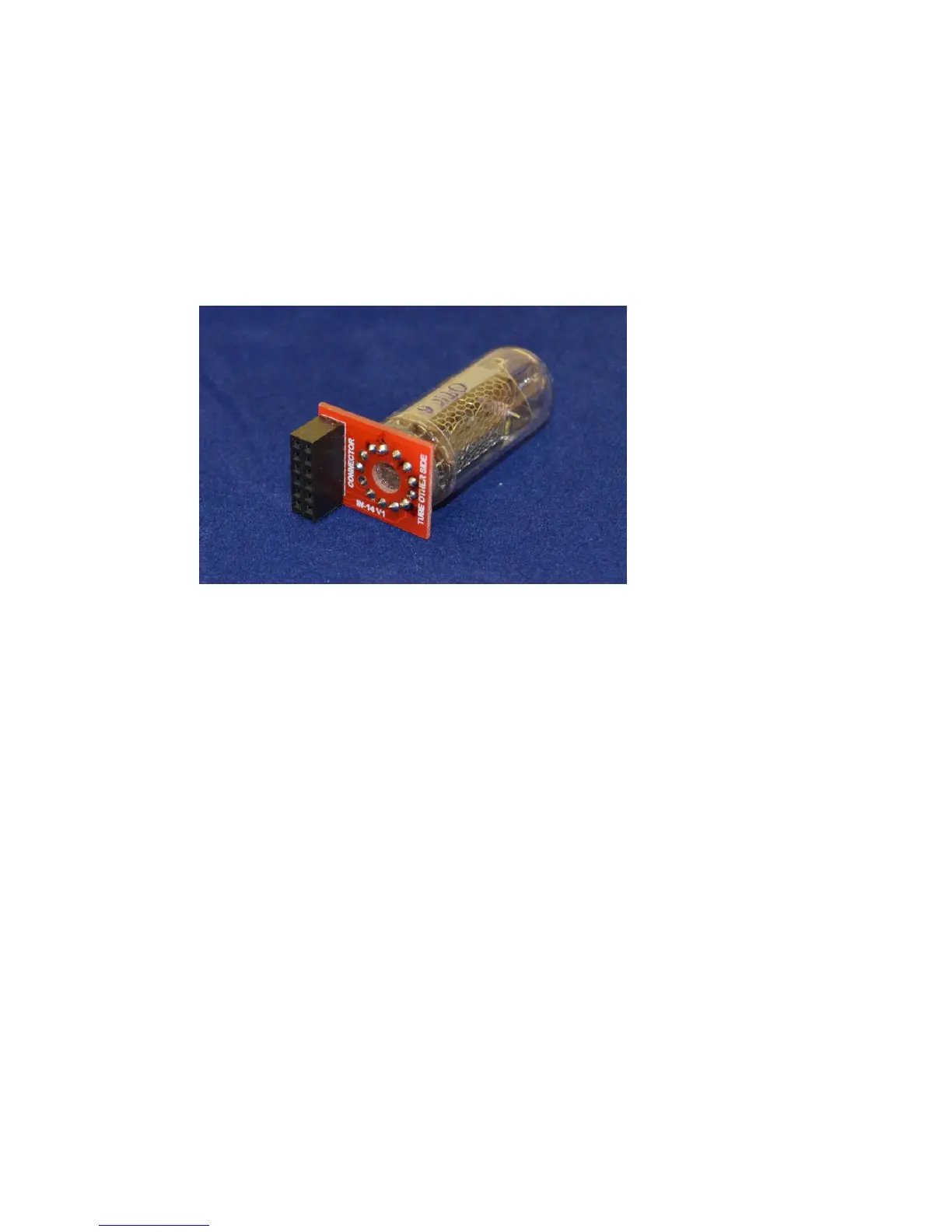

Now you can insert and solder in the tube. Pay attention that the
tube sits squarely on the PCB.
Then solder on the connector (which may be in two pieces).
The tube cell is now complete. Repeat for the other 5 tubes.
Then move on to step 6.
