Pay attention that the tube sits squarely on the PCB. Ensure the
tube is facing perfectly forwards before soldering - you may need
to twist it a little.
Then solder on the connector.

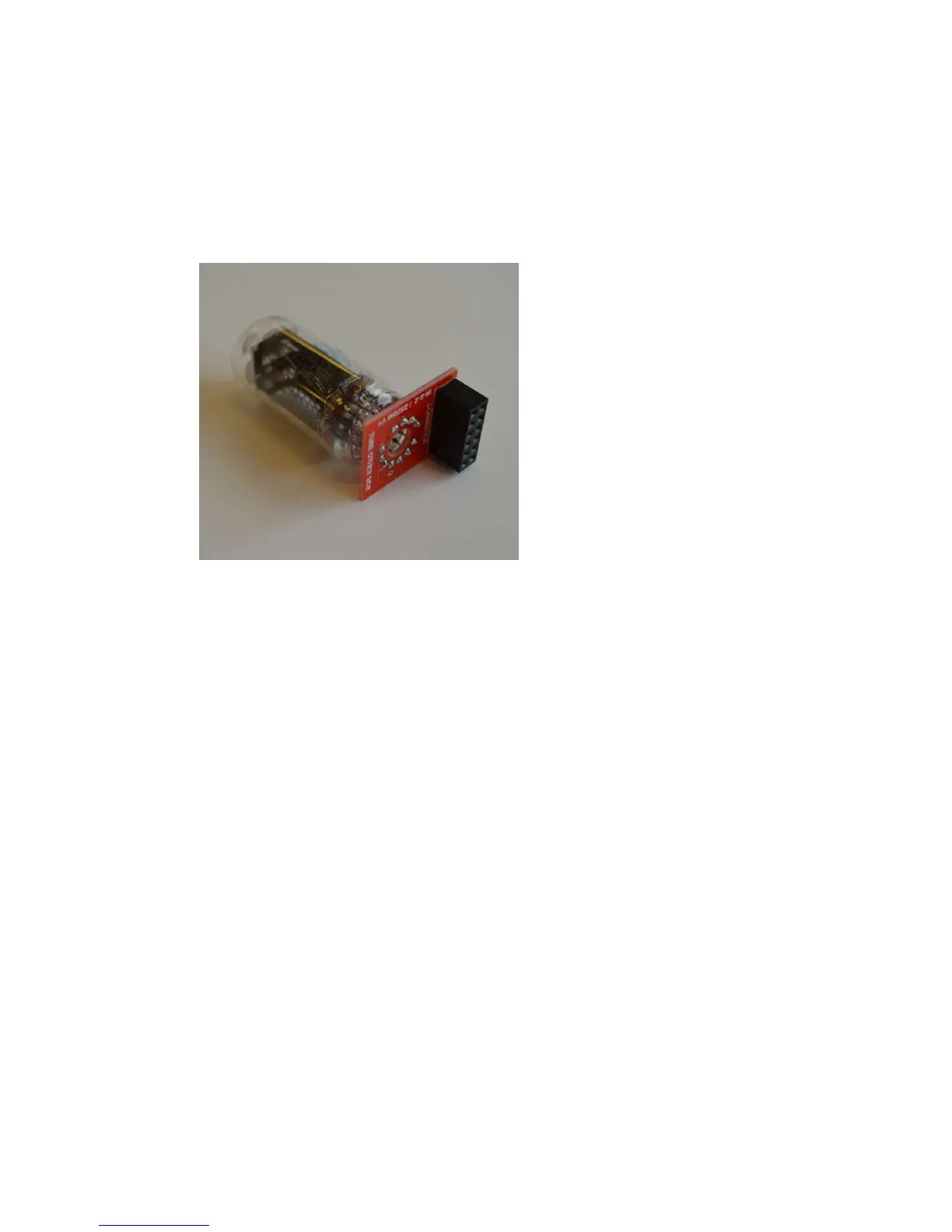

The tube cell is now complete. Repeat for the other 5 tubes.
Then move on to step 6.
