2.5.1 RRC2040 battery parts
2.5 Battery parts
The LF10 primary battery configuration is the RRC2040, which is a small portable battery in an integrating housing.
TheRRC2040 battery option is presented in Section 2.5.1, while the second battery option called the Tracer battery –
anexternal battery configuration – is described in Section 2.5.3.
2.5.2 RRC2040 external battery charger
The RRC2040 charger has two parts: the charger unit and the power supply unit. The charger unit has connectors for the
battery in the charging bay and a DC barrel input for power supply. The power supply has universal power supply input
for which the fitting power cable can be chosen, depending on the given region.

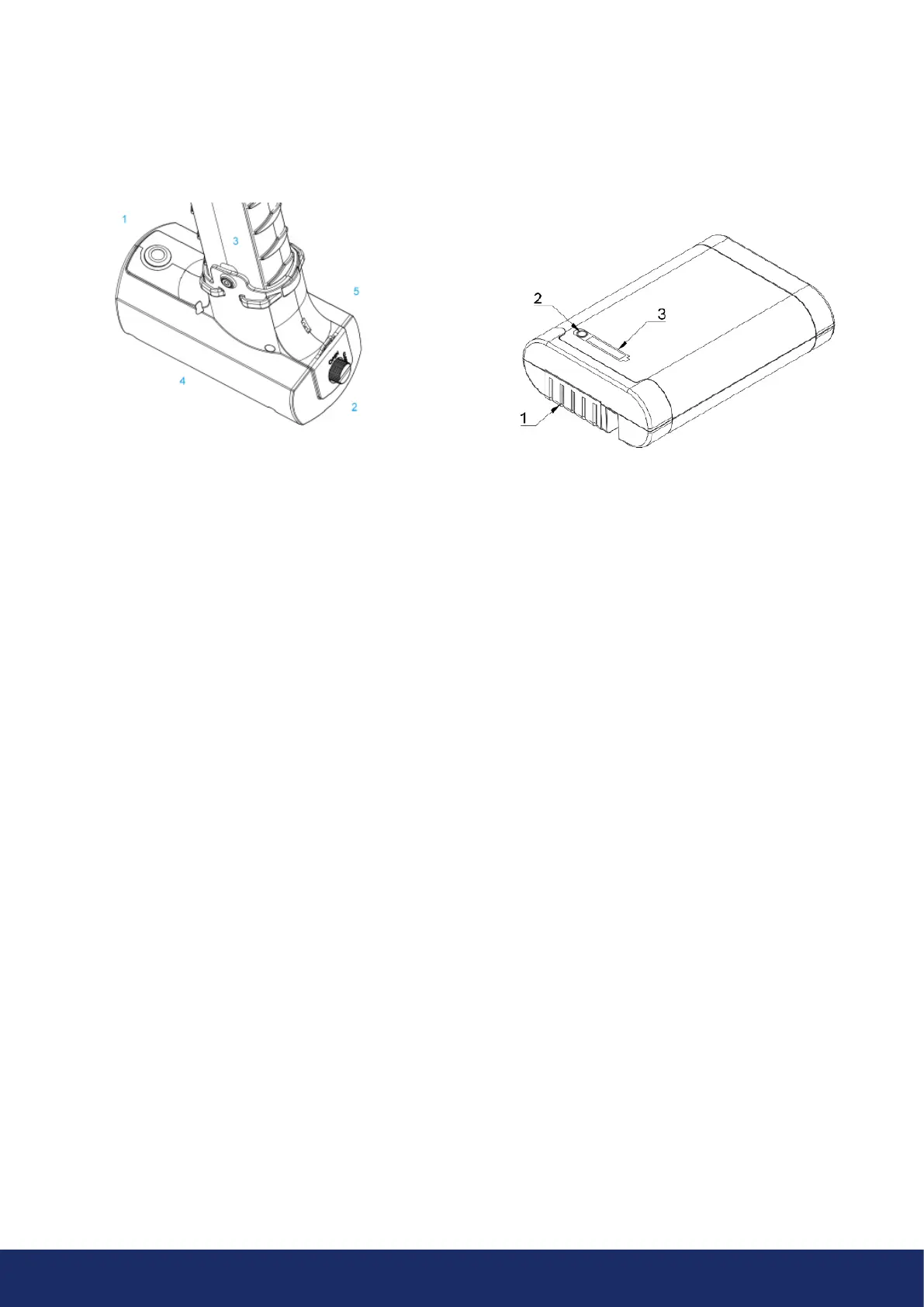

Image 3: RRC2040 battery housing
Image 4: RRC2040 battery
1: Power button
2: Battery cover
3: Fixing screw
4: Battery housing
5: Lanyard attachment point
1: Battery connectors
2: Charge gauge button
3: Battery charge indicator
