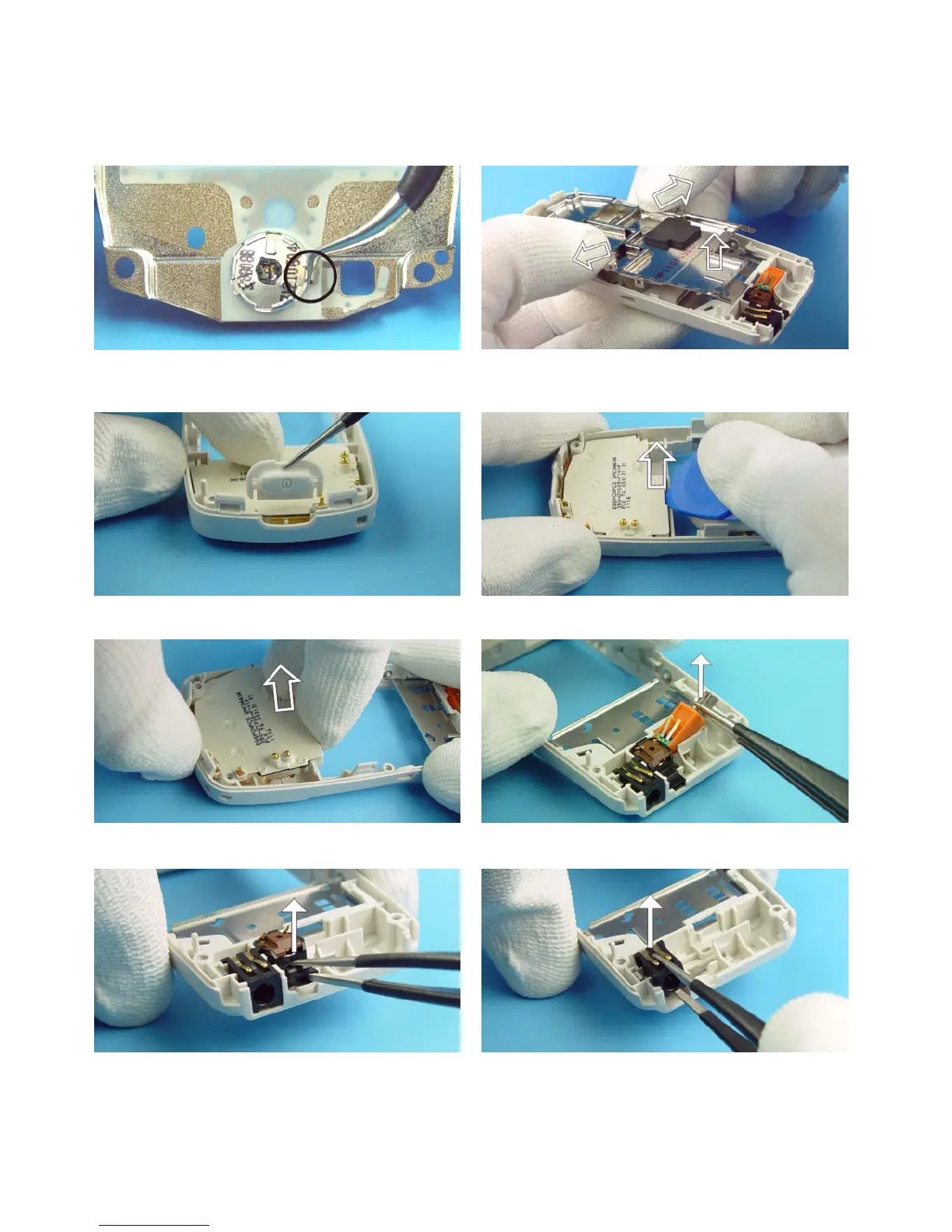

Remove Earpiece. Note the guiding pin when
assembling.
The Shielding is attached with hooks at its backside. To
remove the Shielding from B-Cover you first have to
expand B-Cover. Then push Shielding upwards.
Remove Power Key. Use SRT-6 to lift up the Antenna.
Now, the Antenna can be removed. Use tweezers when removing the Vibra Motor.
Use tweezers to pull up Microphone. To remove the DC-Jack, place tweezers between the
spring contacts and under the Jack. You’ll need to use
additional force to pull the Jack upwards.
