Nokia 3100 Service Manual

nokia
CONNECTING PEOPLE
PAGE 13 (22) Approved 1.0
Nokia Mobile Phones Customer Care EMEA
DJk
Technical Services, Repair Concepts Confidential 22.08.2003

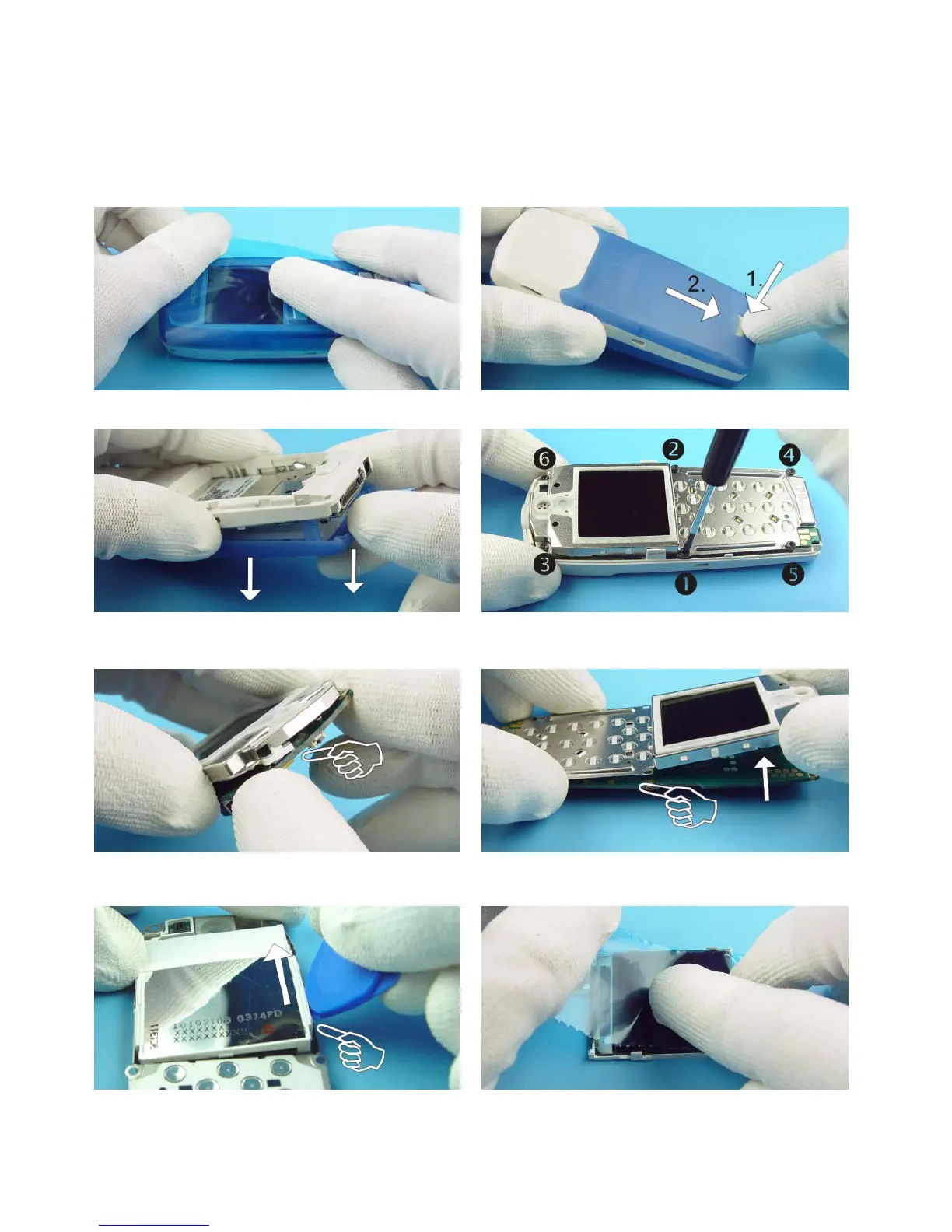

8. DISASSEMBLY INSTRUCTIONS (ALSO SEE THE VIDEO CLIPS ON CARE POINT)
If not already done protect window to avoid dust and
scratches with a film.
Press the Release Button before removing the C-Cover.
Remove A-Cover as shown in the picture. Unscrew the six T6 screws, using the order shown. For
assembly, the reverse order and a Torx T6 PLUS
with torque of 20Ncm have to be used.
Separate the module from the B-Cover and unplug the
display connector carefully by removing UI-Shield from
PWB.
Separate UI-Shield from PWB carefully. Key Dome is
attached with adhesive tape, which must not be
touched.
Use the SRT-6 to remove the LCD from the UI-Shield.
Prevent the Key Dome tape from getting dirty.
Always protect LCD window with a protection film to
avoid dust and scratches.
Service Manual 3100 Level 1&2 Copyright 2003 © Nokia Corporation
