Nokia 3100 Service Manual

nokia
CONNECTING PEOPLE
PAGE 21 (22) Approved 1.0
Nokia Mobile Phones Customer Care EMEA
DJk
Technical Services, Repair Concepts Confidential 22.08.2003
16. FORWARDING OF REPAIRS TO SERVICE LEVEL 3 OR 4 SUPPLIERS

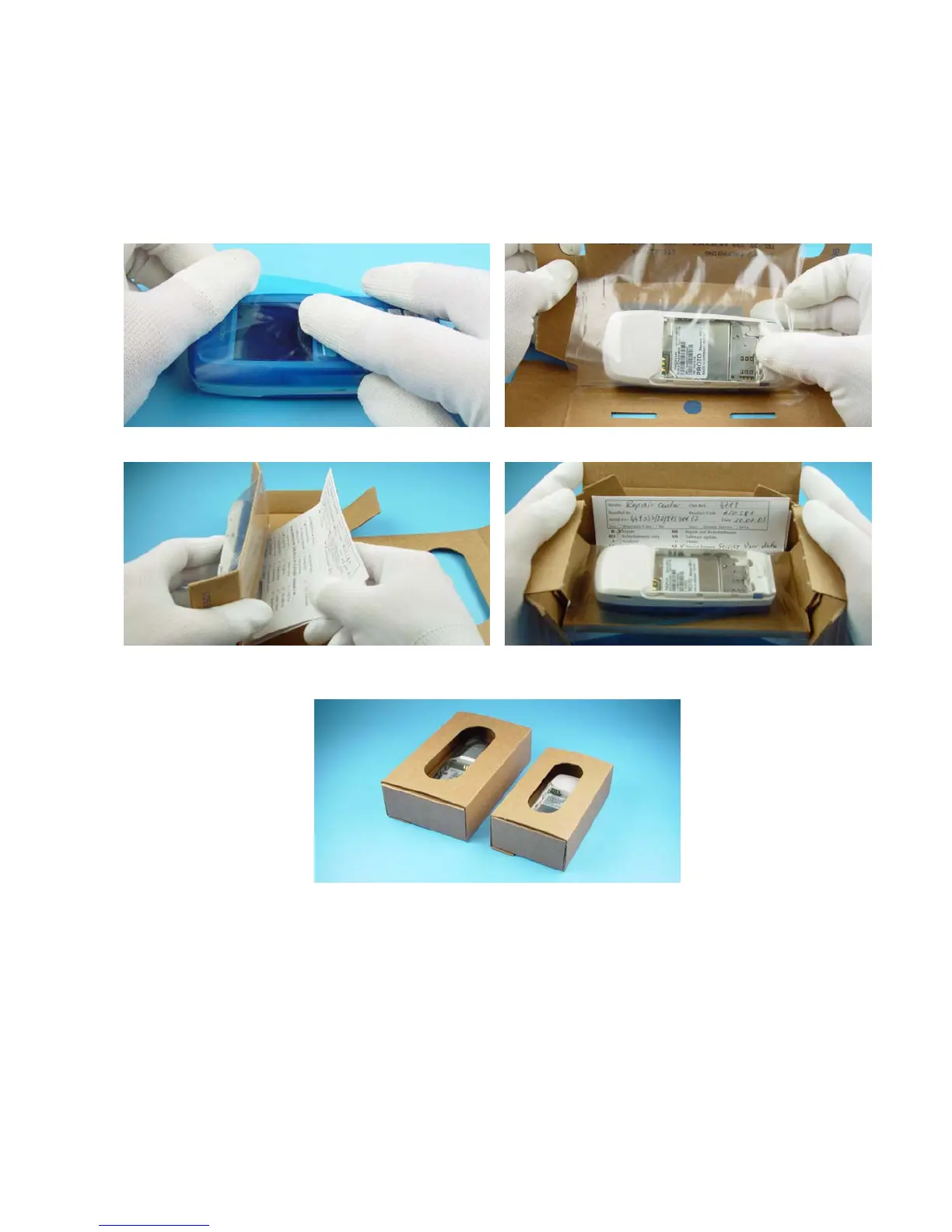

We recommend using the offered swap phone cartons as described in Spare Parts SB004.
Always Protect the window with a protection film. Put the unit under the stretch film.
Add repair documentation e.g. filled-in service note
into the swap carton.
Fold the swap carton as shown in Spare Parts SB-004.
There two different sizes of swap cartons for common mobile phones.
Service Manual 3100 Level 1&2 Copyright 2003 © Nokia Corporation

Nokia 3100 Specifications

General

FM radio	No
Ringer type	Polyphonic
Interface	Pop-Port, DKU-5
Bundled software	Nokia PC Suite (aviliable separetly)
Operating frequency	EGSM 900, GSM 1800, GSM 1900 MHz
Internal memory	0.484 MB
Product color	White
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5C
Battery capacity	850 mAh
Display type	-
Display resolution	128 x 128 pixels
Display number of colors	4096 colors
WAP	1.2.1
Data network	GPRS

Weight and Dimensions

Weight	85 g
