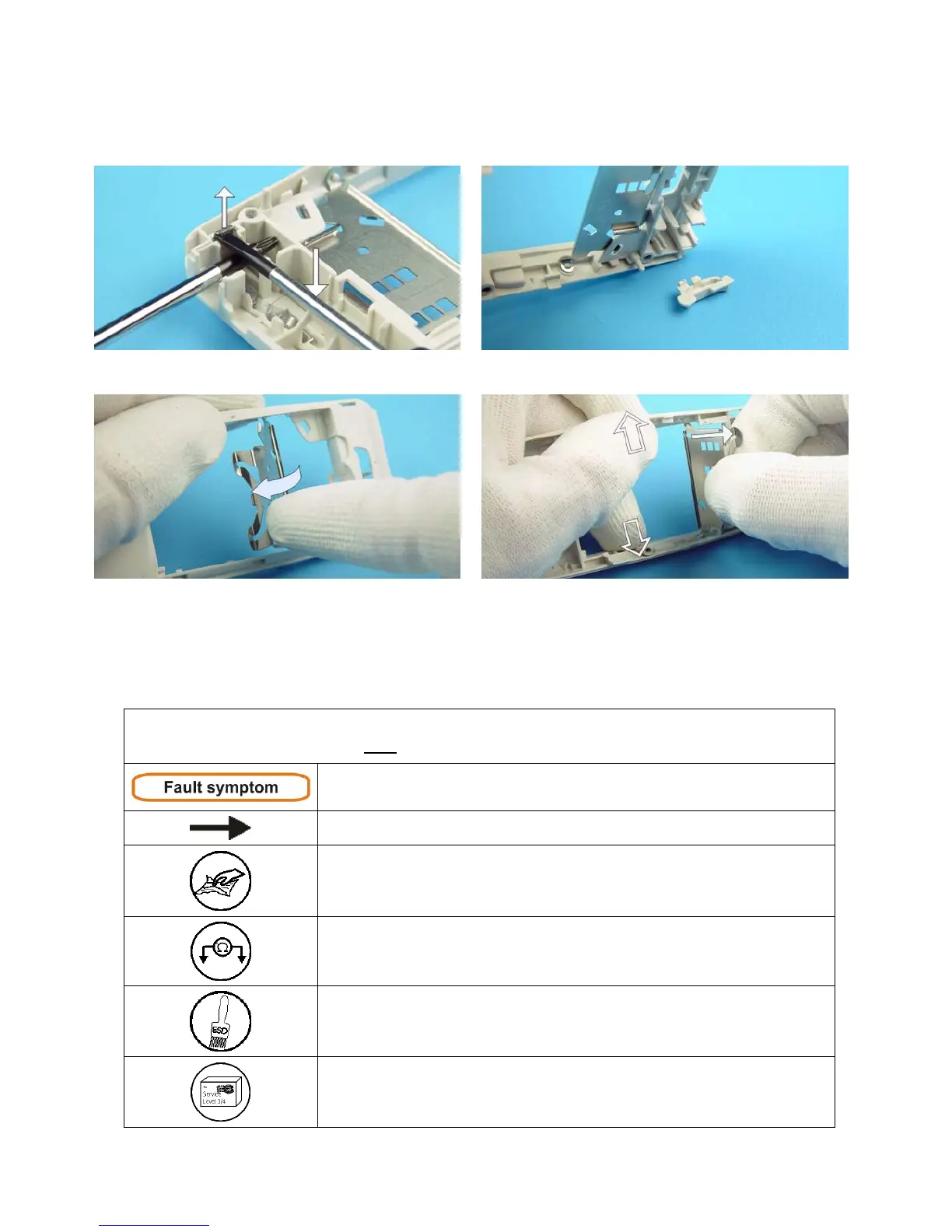

A straight bladed screwdriver can be used as lever to
remove the Release Spring.
Release Button drops out when turning B-Cover.
Open SIM-Flap and turn it as shown in the picture.
Expand B-Cover carefully and remove SIM-Flap.
9. LEGEND FOR QUICK TROUBLE SHOOTER
This legend is valid for all parts of the Quick Trouble Shooter
Follow the steps until the problem is solved. If this doesn’t help, you are not authorized to go forward.
Only underlined components ( e.g. I002
) can be changed.
The start point of repair activities regarding the appeared fault symptoms.
Follow the arrows step by step
Pads or contacts: Check optical and mechanical condition particularly
regarding to corrosion. Clean if necessary.
Measure component for electrical functionality and change, if needed.
(Level 2 only)
Pads or contacts: Check optical and mechanical condition particularly
regarding to corrosion. Clean with ESD brush only, if necessary.
No more actions possible send product to the appropriate service partner
with higher service level.
Service Manual 3100 Level 1&2 Copyright 2003 © Nokia Corporation

Nokia 3100 Specifications

General

FM radio	No
Ringer type	Polyphonic
Interface	Pop-Port, DKU-5
Bundled software	Nokia PC Suite (aviliable separetly)
Operating frequency	EGSM 900, GSM 1800, GSM 1900 MHz
Internal memory	0.484 MB
Product color	White
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5C
Battery capacity	850 mAh
Display type	-
Display resolution	128 x 128 pixels
Display number of colors	4096 colors
WAP	1.2.1
Data network	GPRS

Weight and Dimensions

Weight	85 g
