Nokia 5630 XPRESSMUSIC

5630 XpressMusic RM-431, RM-432
Service Manual Level 1&2
14 CONFIDENTIAL
9 10

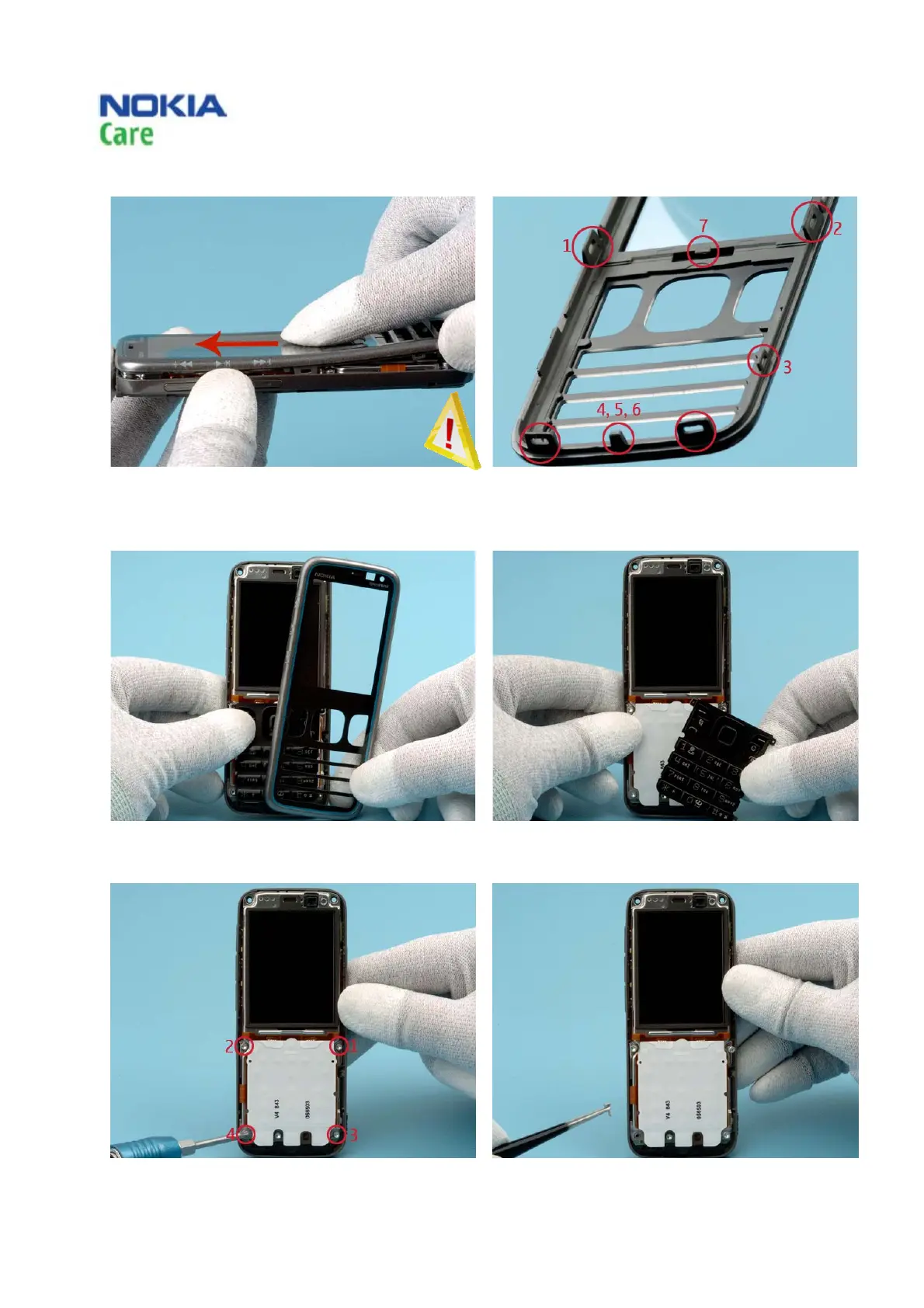

Then slide the A-COVER to the direction shown in
the picture to release the middle clip.
Before removing the A-COVER, make sure that you
have released all 7 clips.
11
12
Remove the A-COVER. Remove the ALPHA KEYMAT.
13
14
Unscrew the four T6+ screws. Use the tweezers to remove the screws.
