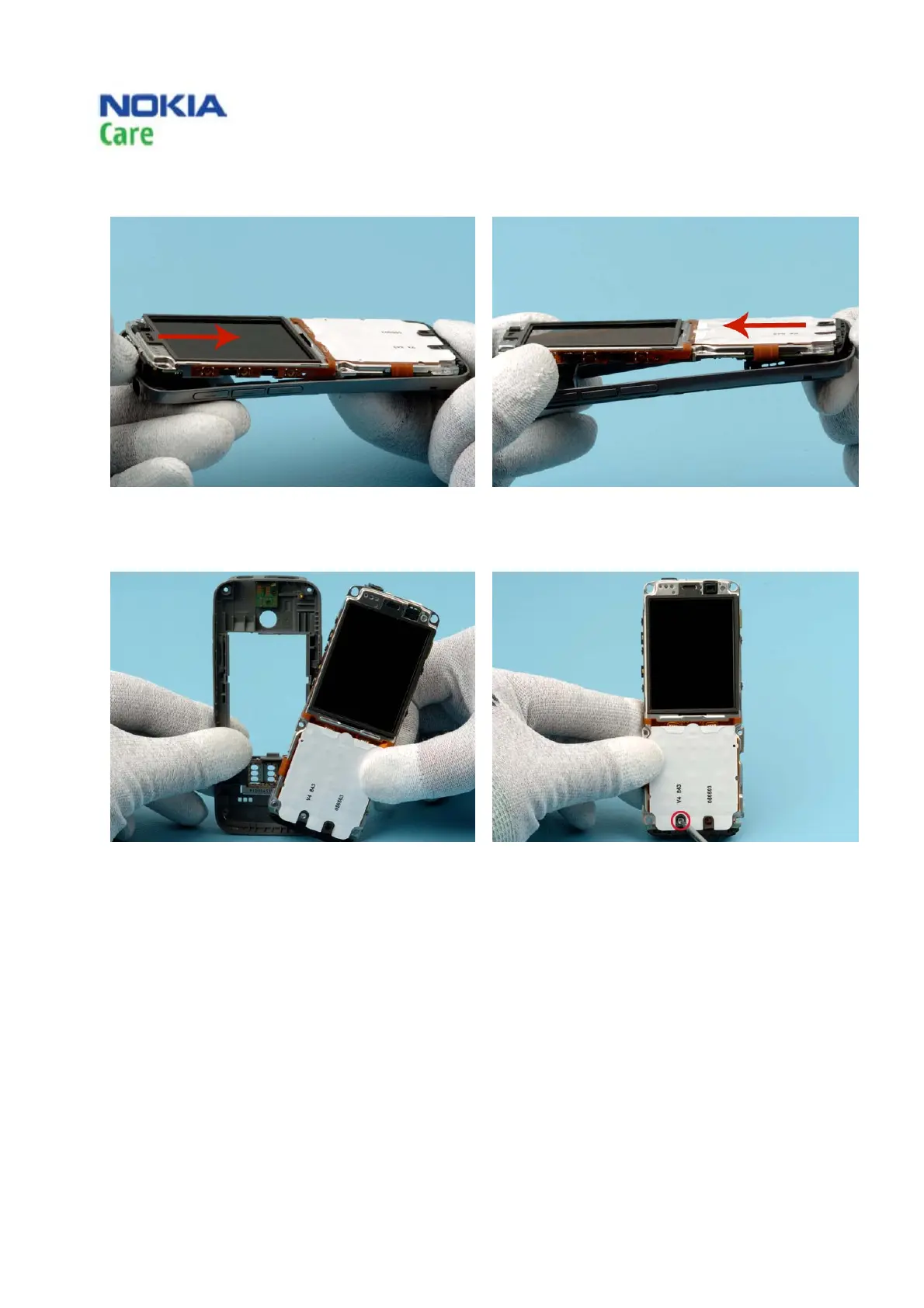

To remove the assembly, stretch the C-COVER
outwards over the audio connector.
Stretch the C-cover outwards to release the clip
which holds the assembly in place.
17
18
The cover and the assembly have now been
separated.
Unscrew the T6+ screw to remove the antenna.
