5630 XpressMusic RM-431, RM-432
Service Manual Level 1&2
17 CONFIDENTIAL
25
26

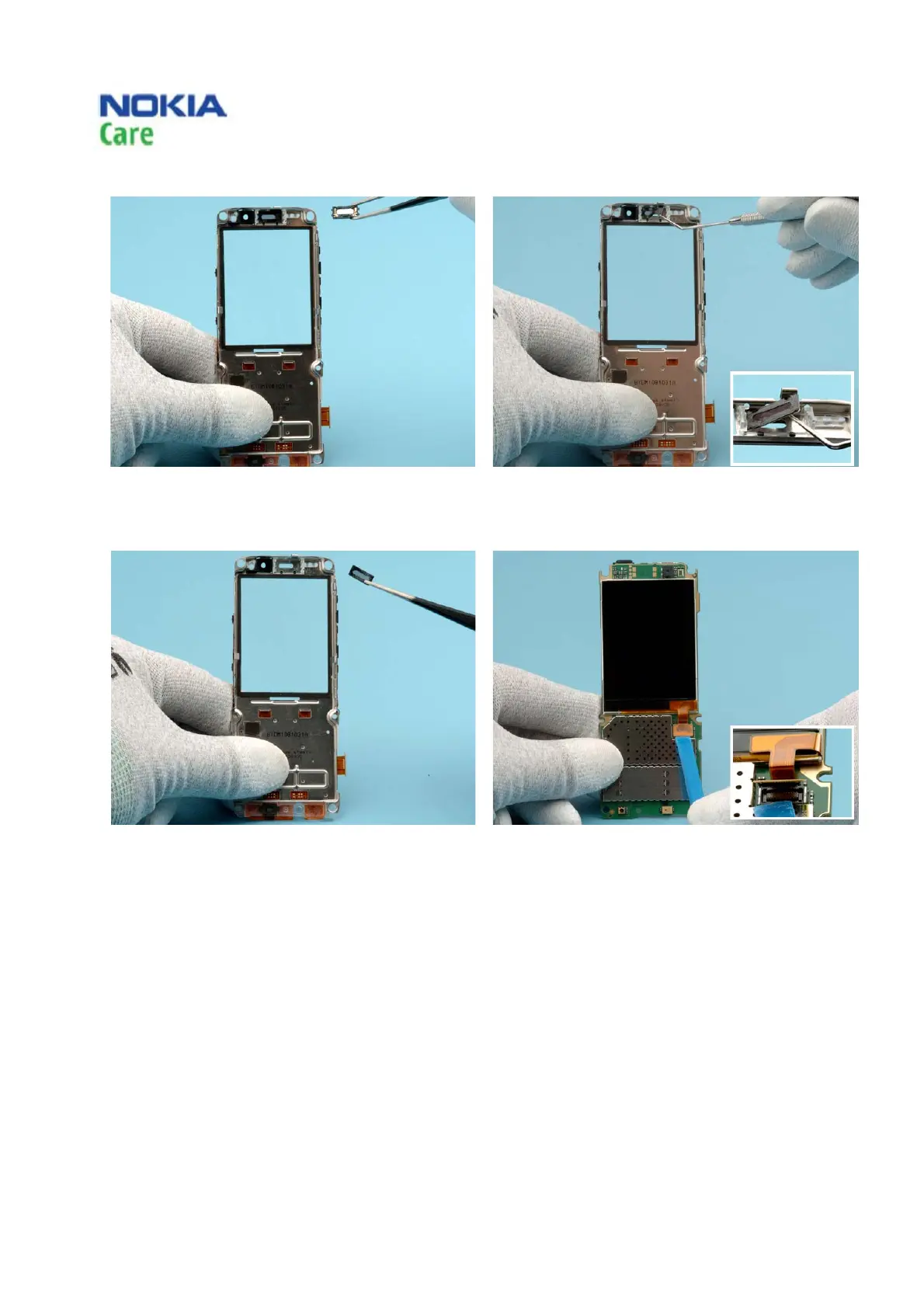

Remove the EARPIECE with the tweezers. Use the dental tool to lift and release the
adhesive net.
27
28
Use the tweezers to remove the adhesive net and
clear all adhesive residuals.
Use the SS-93 tool to open the connector of the
LCD.
Issue 1 Copyright © 2008 NOKIA. All rights reserved.
