Nokia 5630 XPRESSMUSIC

5630 XpressMusic RM-431, RM-432
Service Manual Level 1&2
18 CONFIDENTIAL
29 30

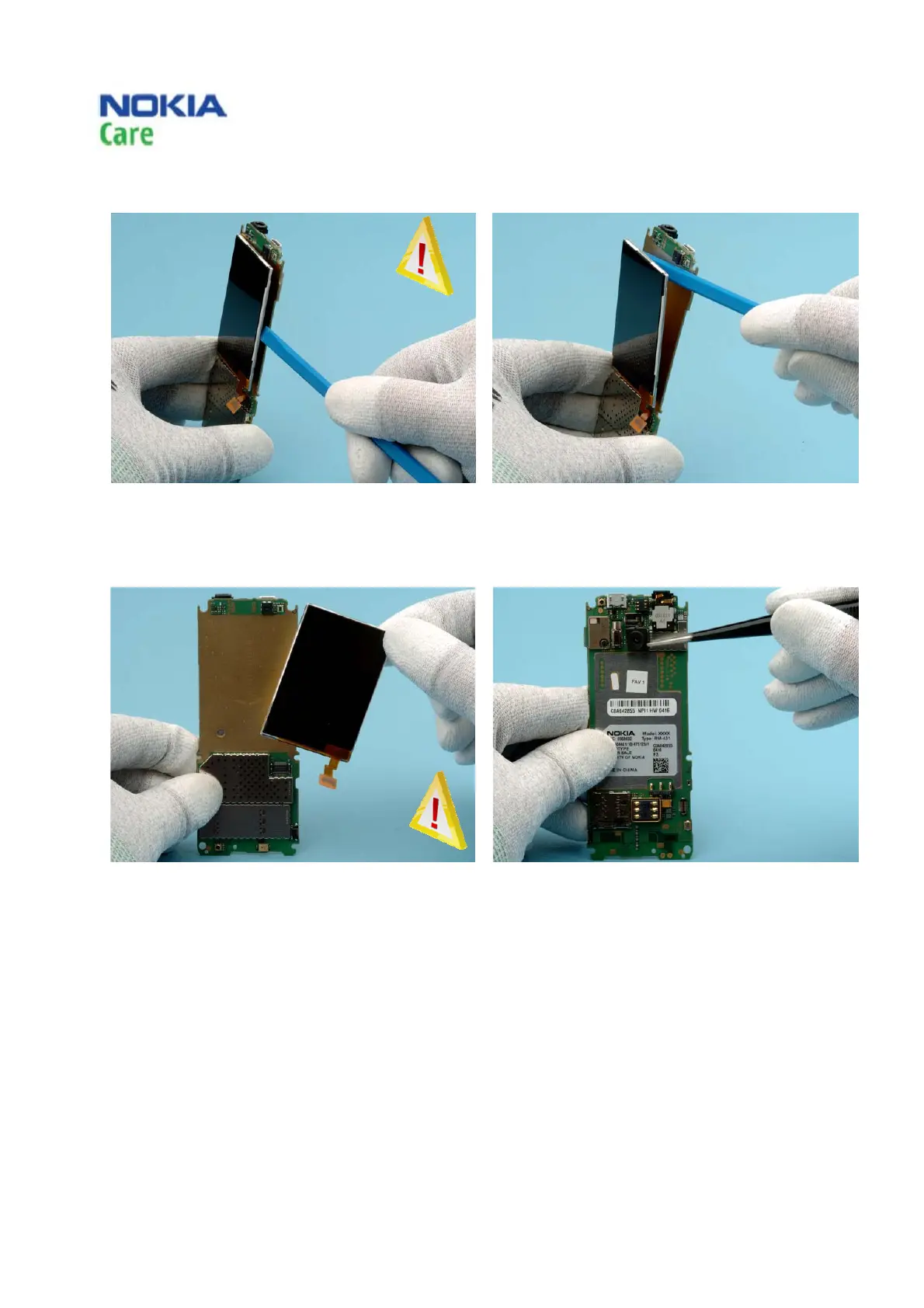

Carefully wedge the SS-93 tool under the LCD
MODULE and gently work the tool around the LCD
MODULE.
Use the SS-93 tool to release the LCD MODULE.
Note! The LCD MODULE is glued on the PWB.
31
32
Separate the LCD MODULE from the PWB.
Note: Only remove the LCD MODULE if it is
damaged. It cannot be used again after it has
been removed.
Use the tweezers to release the CAMERA BOOT.
