Nokia 7710 Service Manual

nokia
CONNECTING PEOPLE
PAGE 10 (25) Approved 1.0
CMO Sales and Marketing Customer Care EMEA
DJk
Service & Support Readiness, Repair Concepts CONFIDENTIAL 13.12.2004
FLA-46

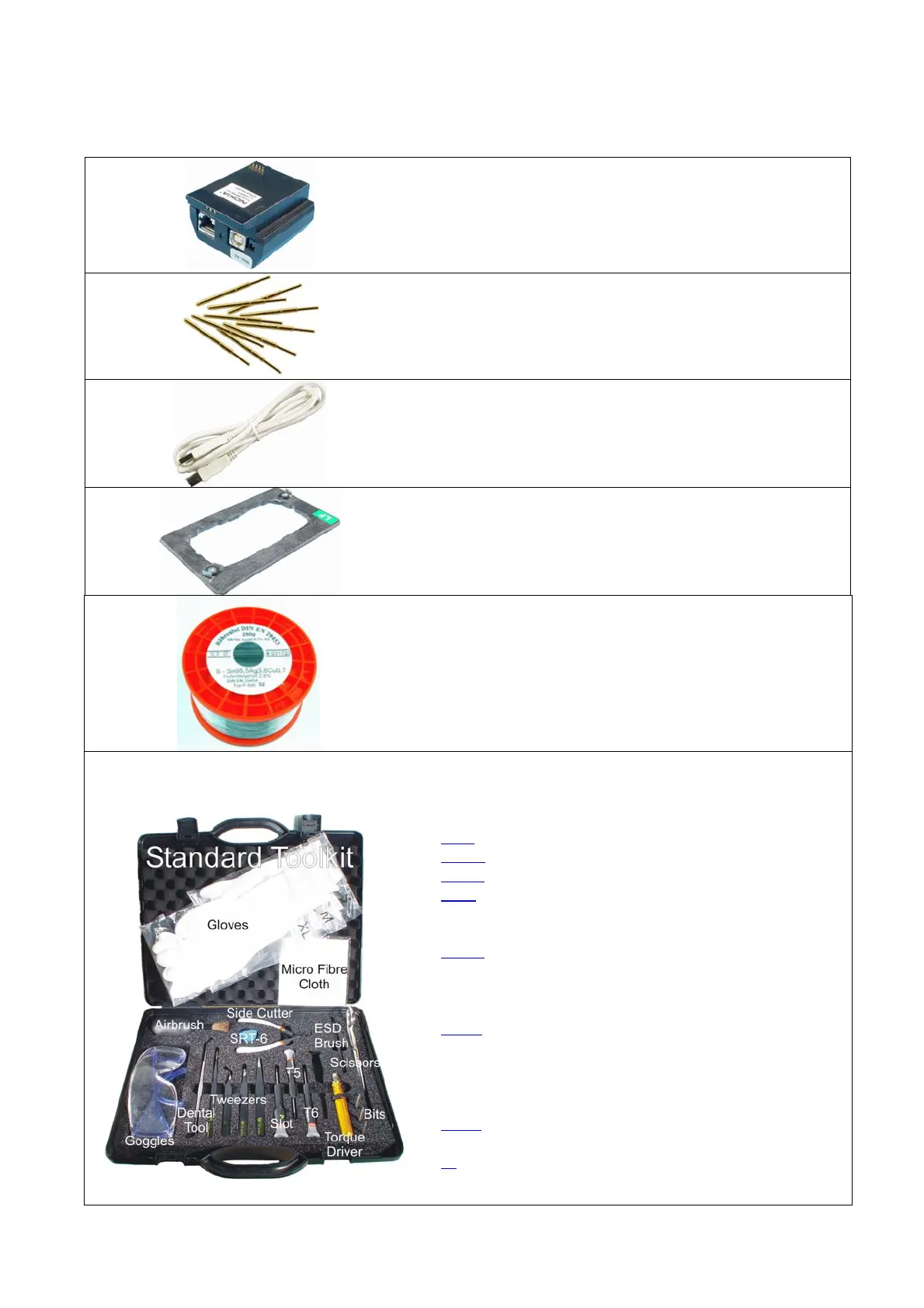

POS Flash Adapter is used in POS (Point of Sales) environment for
software updating. It provides controlled supply voltage and
necessary connections between the phone and the Flash Device.
It substitutes for the phone’s standard battery during the
software update.
Test Pins
For Flash Adapter FLA-46
Standard USB A-B Cable
For Flash concept.
RJ-37
Soldering Jig
Lead-free Solder Wire
Mandatory for lead-free products (Level 2 only).
0772040 NMP Standard Toolkit
 Nokia opening tool SRT-6 Nokia No. 0770431
 Tonichi torque driver Nokia No. 6901525

Hoya micro fibre cloth MX304

Dastex gloves S, M, XL

Artilux goggles AH166

Wera bit T5 867/4TX 5x50
 Wera bit T6 867/4TX 6x50
 Wera bit T6 PLUS® 867/4TX 6IP

Facom side cutter 416E
 Facom T5 driver SP.14032
 Facom T6 driver SP.14033
 Facom slot screwdriver AEF. 2x35.E

Wetec tweezers 7abb SA-ESD
 Wetec tweezers 22 SA-ESD
 Wetec tweezers 13 SA-SMD ESD
 Wetec tweezers PSF SA-ESD
 Wetec ESD brush E1211

Kaiser Fototechnik airbrush 6315
 Wetec dental tool DEM83266/0

RS Components Scissors 323-5732
Service Manual 7710 Level 1&2 Copyright © 2004 Nokia Corporation. All rights reserved.

Nokia 7710 Specifications

General

Operating System	Symbian OS 7.0s, Series 90 UI
Internal Storage	90 MB
Expandable Storage	MMC, up to 2 GB
Weight	189 g (6.67 oz)
Announced	2004, November
Status	Discontinued
SIM	Mini-SIM
Alert types	Vibration; Downloadable polyphonic, monophonic ringtones
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
GPS	No
Radio	No
USB	Pop-Port
Messaging	SMS, MMS, Email, Instant Messaging
Browser	WAP 2.0/xHTML, HTML
Java	Yes, MIDP 2.0
Stand-by	Up to 240 h
Talk time	Up to 3 h 30 min
Network	GSM 900 / 1800 / 1900
Infrared port	Yes
Display	3.5 inches, 640 x 320 pixels
Camera	1 MP, 1152 x 864 pixels
Battery	Removable Li-Ion 1300 mAh battery (BP-5L)
CPU	150 MHz ARM9
Bluetooth	Yes
