Nokia 7710 - Disassembly Instructions (also See the Video Clips on Care Point)

nokia
CONNECTING PEOPLE
PAGE 12 (25) Approved 1.0
CMO Sales and Marketing Customer Care EMEA
DJk
Service & Support Readiness, Repair Concepts CONFIDENTIAL 13.12.2004
9. DISASSEMBLY INSTRUCTIONS (ALSO SEE THE VIDEO CLIPS ON CARE POINT)

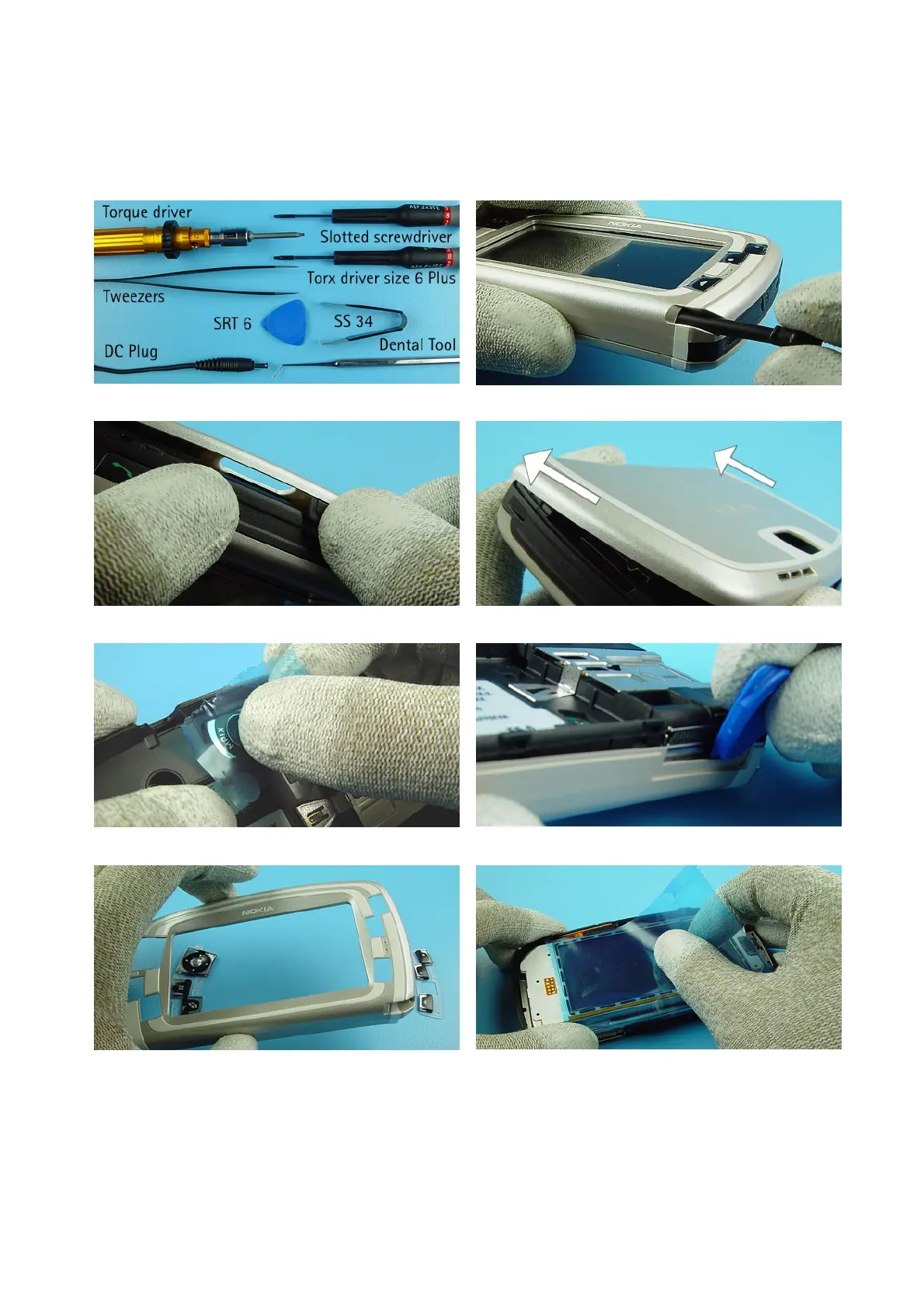

1.) Needed tools for disassembly/assembly.
2.) Remove the Stylus.
3.) Unlock and lift the B-Cover Assy. 4.) Push the B-Cover Assy in shown direction.
5.) Protect the Camera Window with a film.
6.) Unlock the clips of the A-Cover with the SRT-6.
7.) Remove the Keymats.
8.) Protect the LCD with a film.
Service Manual 7710 Level 1&2 Copyright © 2004 Nokia Corporation. All rights reserved.
