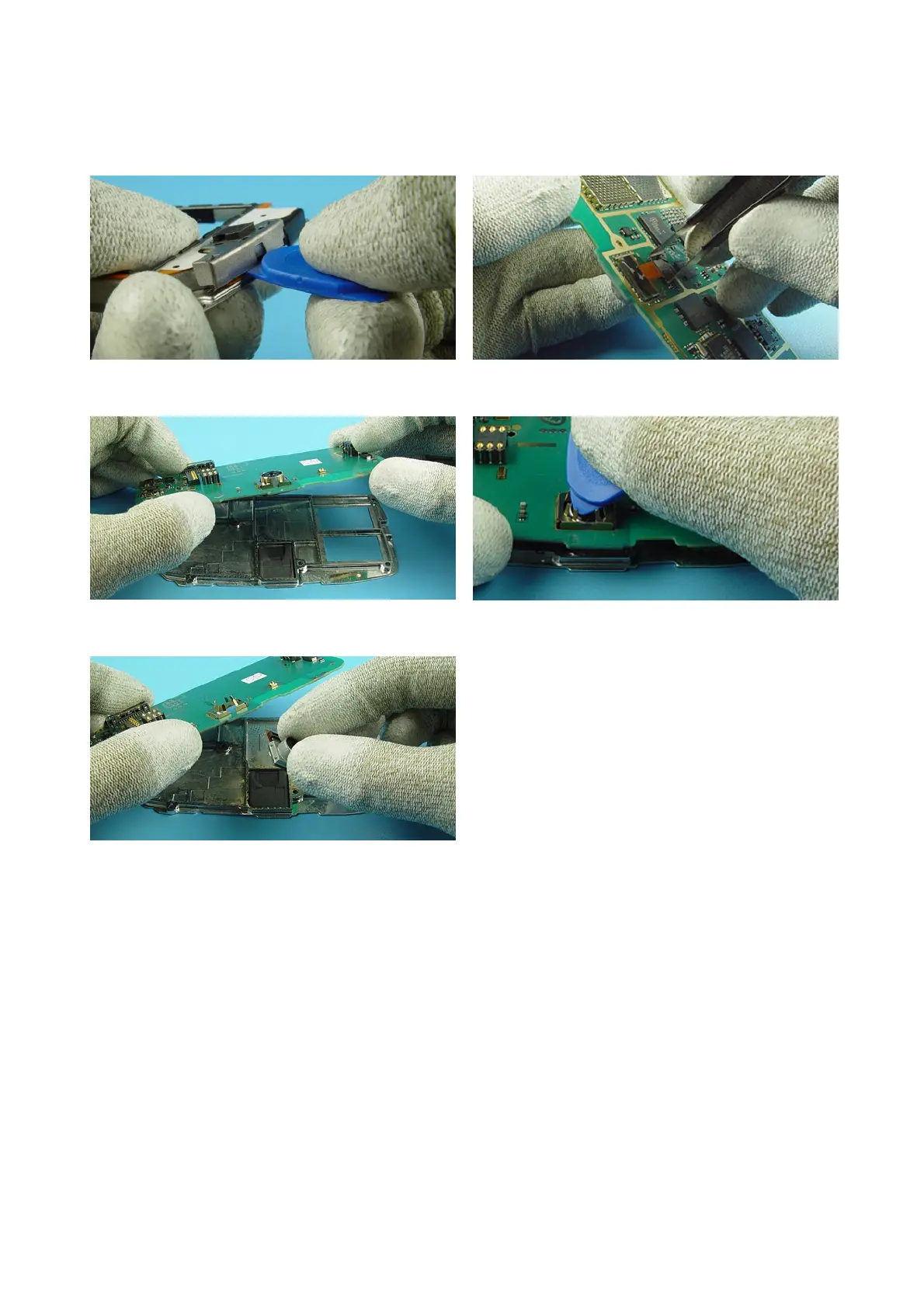

33.) Remove the Earpiece Adapter Assy, use the SRT-6 if
necessary.
34.) Open the Flex connector of the Camera Module with
the SS-34.
35.) Use the Shield Assy as support while removing the
Camera Module.
36.) Push out the Camera Module with the SRT-6.
37.) Take away the Camera Module.
