For assembly only!

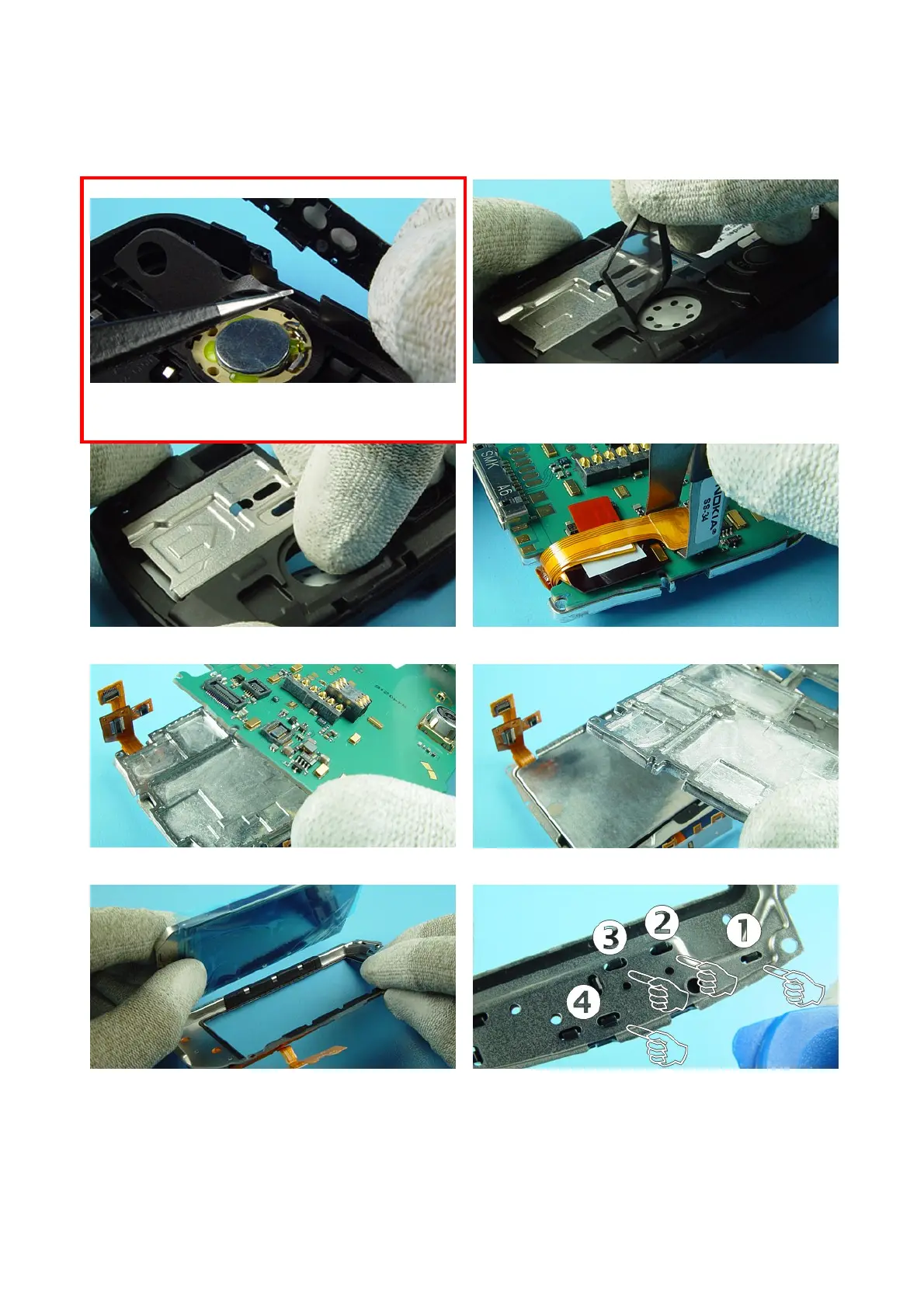

25) For Assembly lift up the IHF Backvolume first , then
place the Sidekey Assy.
26.) Remove the IHF Frontvolume Gasket.
27.) Push out and take away the IHF Speaker.
28.) Disconnect the 3 Flex connectors with the SS-34.
29.) Remove the Engine Module.
30.) Remove the Shield Assy.
31.) Remove the LCD Module Assy.
32.) Unlock the 4 clips of the Earpiece Adapter with the
SRT-6.
Service Manual 7710 Level 1&2 Copyright © 2004 Nokia Corporation. All rights reserved.
