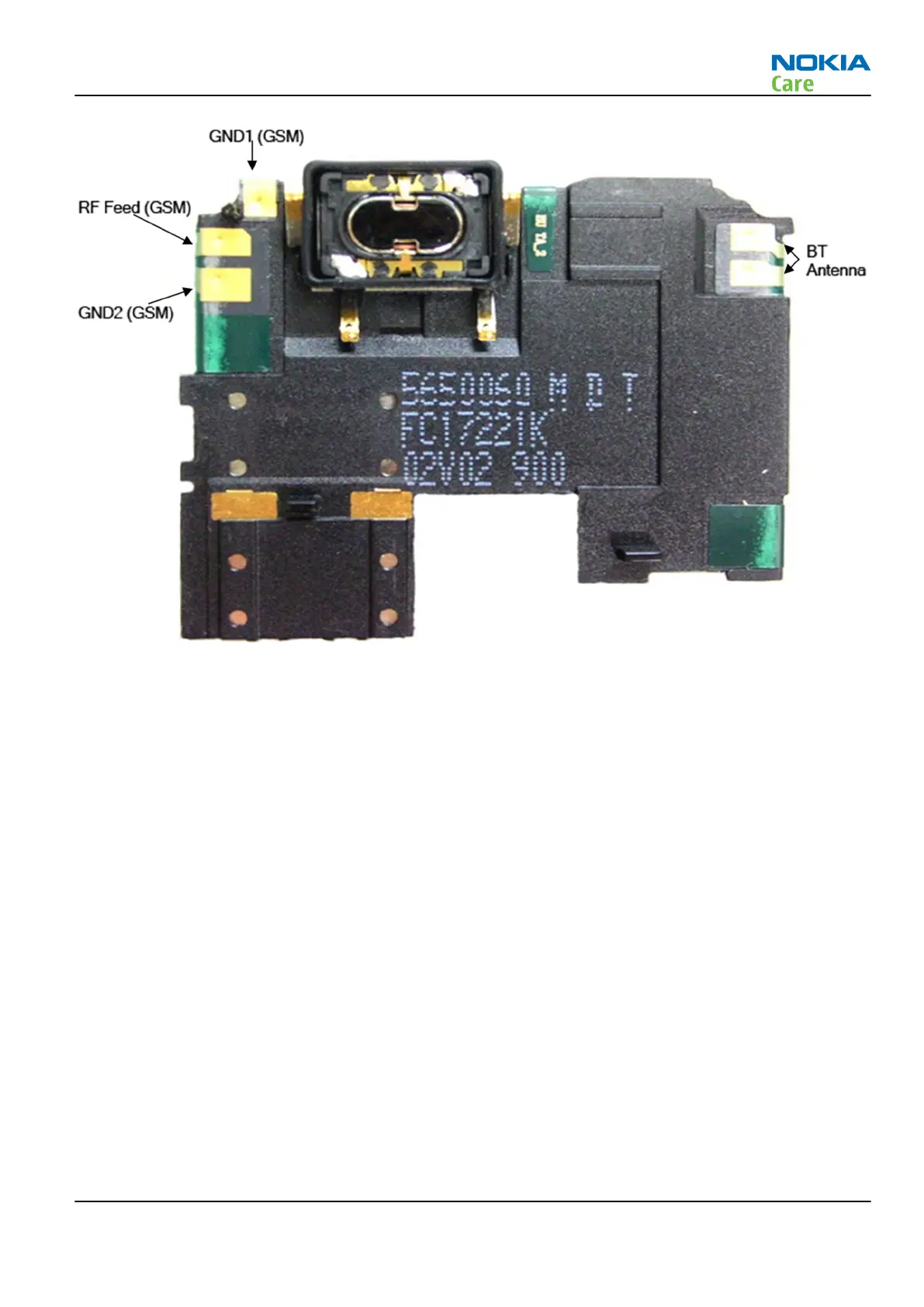

Figure 24 GSM and BT antenna contact pads on the antenna module
Antenna C-clips
When checking the antenna functionality, you can also check that the antenna C-clips are intact (that is, there
are no cracks/bends in them).
RM-272; RM-273
RF Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 4 –19
Copyright © 2007 Nokia. All rights reserved.
