Nokia RM-272 - RF Testing Concept with RF Coupler

Type Description
GPIB control cable

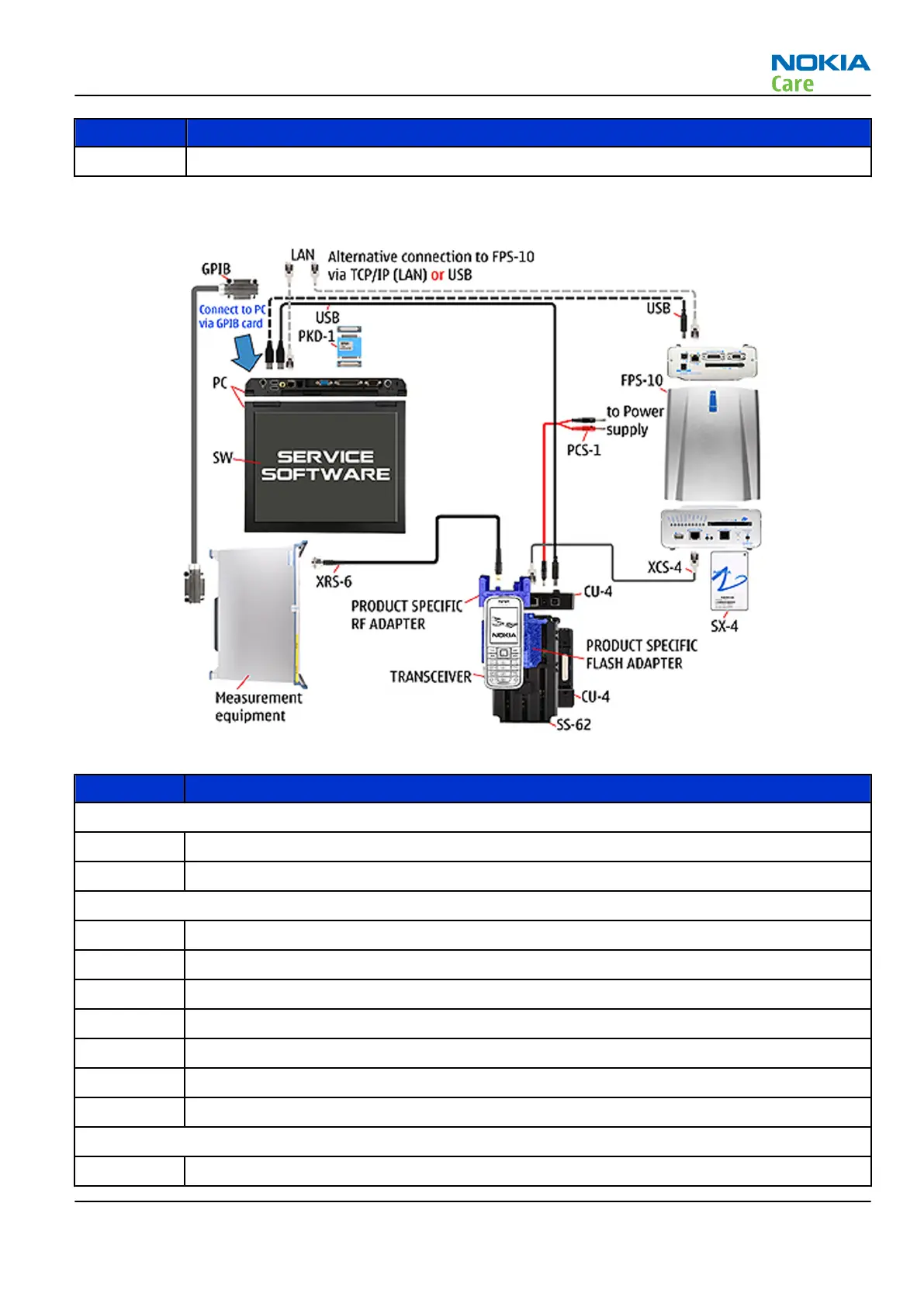

RF testing concept with RF coupler
Figure 6 RF testing concept with RF coupler
Type Description
Product specific devices
FS-47 Flash adapter
SA-123 RF coupler
Other devices
CU-4 Control unit
SX-4 Smart card
FPS-10 Flash prommer box
PKD-1/PK-1 SW security device
SS-62 Flash adapter base
Measurement equipment
PC with Phoenix service software
Cables
PCS-1 Power cable
RM-272; RM-273
