The primary display is controlled by MSM8960 over DSI interface. The DSI Interface is used for data transfer
and control. Other display signals, RESET and TE, are interfaced to MSM8960.

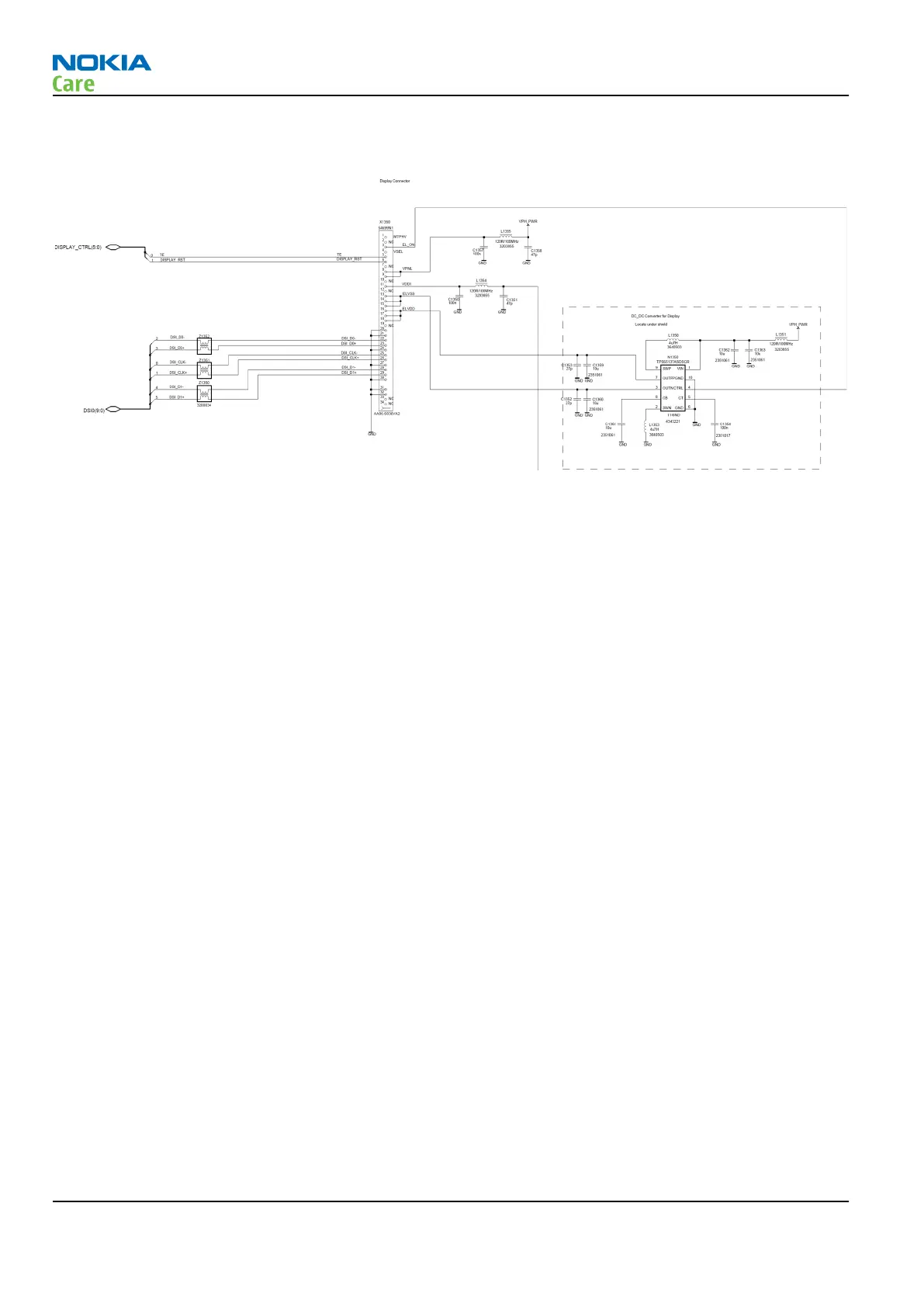

Figure 42 Display diagram
Cameras
This phone has two cameras, an 8 MPix resolution main (rear) camera and a VGA resolution secondary (front)
camera. A dual LED flash is used for the main camera.
Primary camera (Lada)
The primary camera is an 8 Megapixel AF (autofocus) camera module. The module size is 8.5 mm x 8.5 mm
x 5.9 mm and it fits into the 18-pin camera socket on the phone. The camera module is SMIA profile 2
compliant, directly connected to MSM8960 and controlled by the I2C bus. Image data is transferred to the
MSM8960 for furher processing over CSI-2 (PRI_CAM_CSI).
RM-824; RM-825; RM-826
System Module
Page 6 – 18 NOKIA INTERNAL USE ONLY Issue 2
Copyright © 2012 Nokia. All rights reserved.
