BB troubleshooting
PWB markings in RM-826 and RM-824
Mechanically RM-826 and RM-824 are identical and thus the HW differences are noticeable only by taking a
closer look at the PWB. As illustrated in the figure below, the markings on the PWB enable quick
differentiation between the two variants.

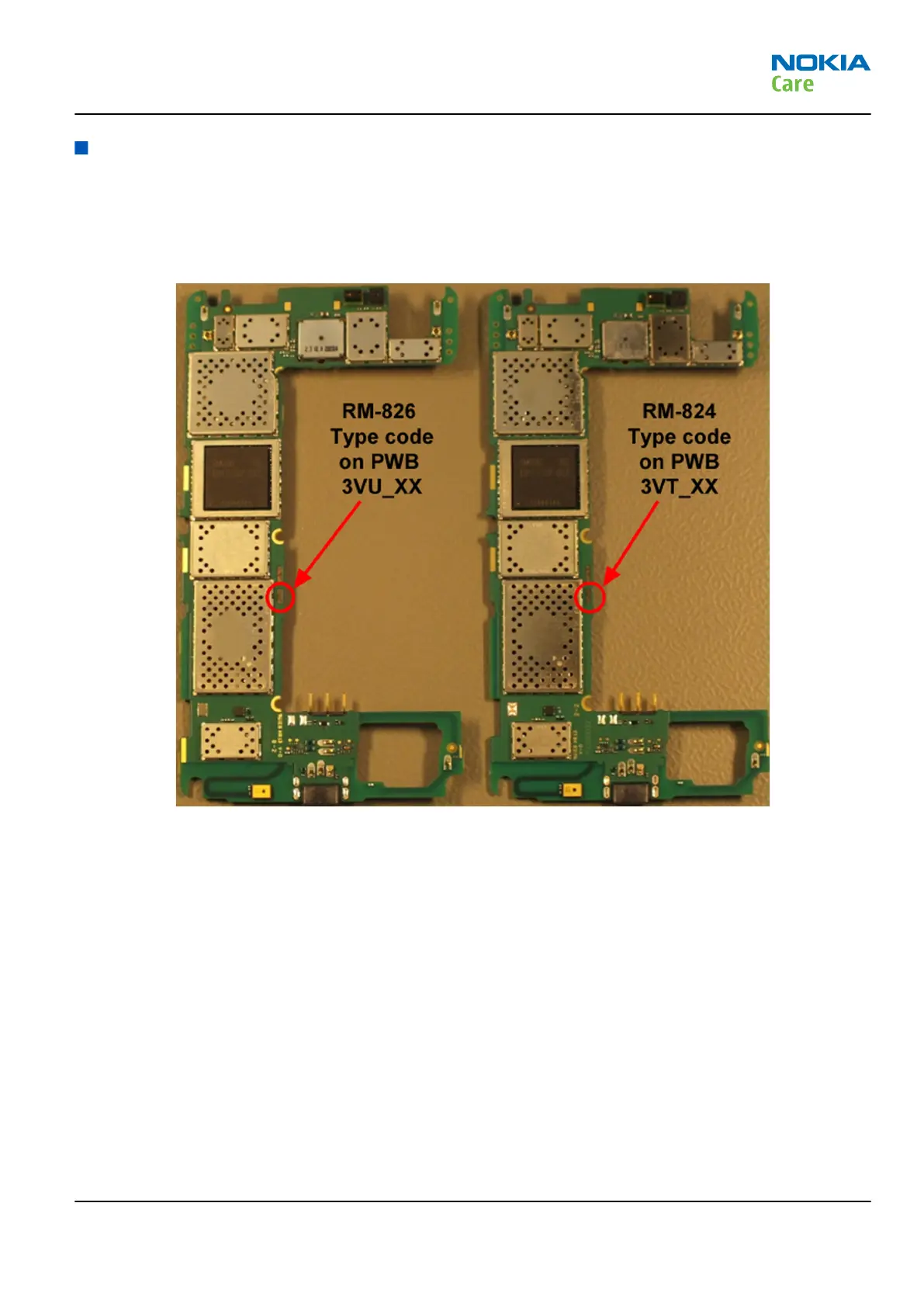

Figure 62 PWB markings in RM-826 and RM-824
RM-824; RM-825; RM-826
Service information differences between RM-826 and
RM-824
