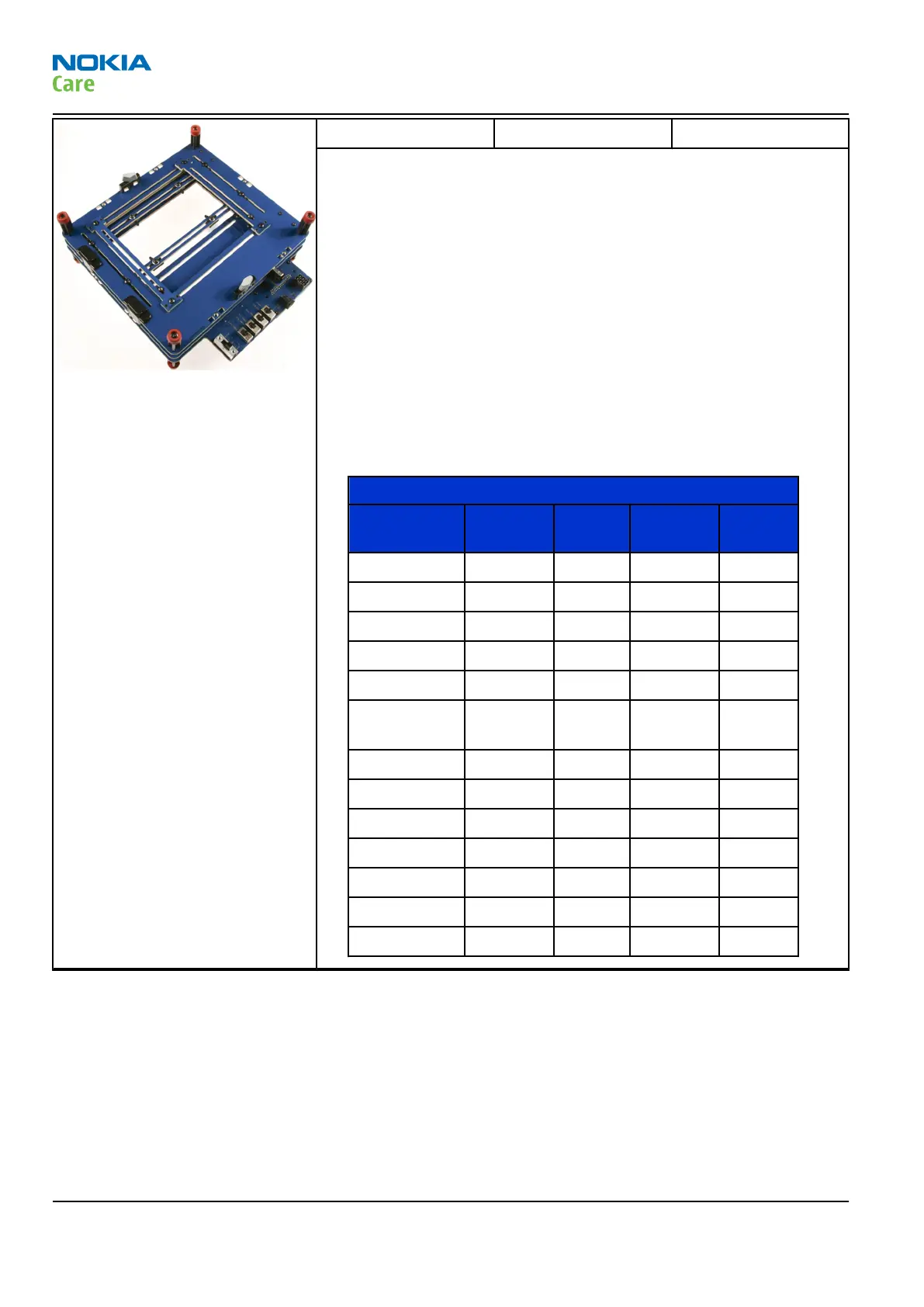

MJ-305 Module jig 0781487
Module jig MJ-305 can be used for flashing via USB and RF, battery and
system testing.
The main functions are:
•
Powering with external power
•
WLAN/BT/GPS RF-interfaces with probes
•
GSM/WCDMA RF-interfaces with probes
•
BSI mode selector (Tabby and Lynx interface, selected with battery
cable)
•
VBATT interface (Tabby and Lynx interface, selected with battery
cable)
•
SS-293 RF guiding plate is required with this jig
•
CA-205PS power cable is used with this jig
•
CA-158RS cable is used together with this jig for RF testing
•
Attenuation values for CA-158RS cable
Band Default f/
MHz RX
Att. RX Default f/
MHz TX
Att. TX
GSM 850 881.6 -0.2 836.6 -0.2
GSM 900 942.4 -0.2 897.4 -0.2
GSM 1800 1842.8 -0.3 1747.8 -0.3
GSM 1900 1960.0 -0.3 1880.0 -0.3
WCDMA I 2140.0 -0.4 1950.0 -0.3
WCDMA II /
LTE B2 1960.0 -0.3 1880.0 -0.3
WCDMA IV 2140.0 -0.4 1740.0 -0.3
LTE B4 2132.5 -0.4 1732.5 -0.3
WCDMA V 880.0 -0.2 835.0 -0.2
LTE B5 881.5 -0.2 836.5 -0.2
WCDMA VIII 942.6 -0.2 897.6 -0.2
LTE B17 740.0 -0.2 710.0 -0.2
WLAN n/a n/a 2442.0 -0.4
RM-824; RM-825; RM-826
Service information differences between RM-824 and
RM-825
Page 7 – 12 NOKIA INTERNAL USE ONLY Issue 2
Copyright © 2012 Nokia. All rights reserved.
