Nomadic NC-S1 - Itemized Parts List

NC-S
1
Install & Operations Guide Ver. 240411 6 Nomadic Cooling Co
ITEMIZED PARTS LIST
B
DC
L

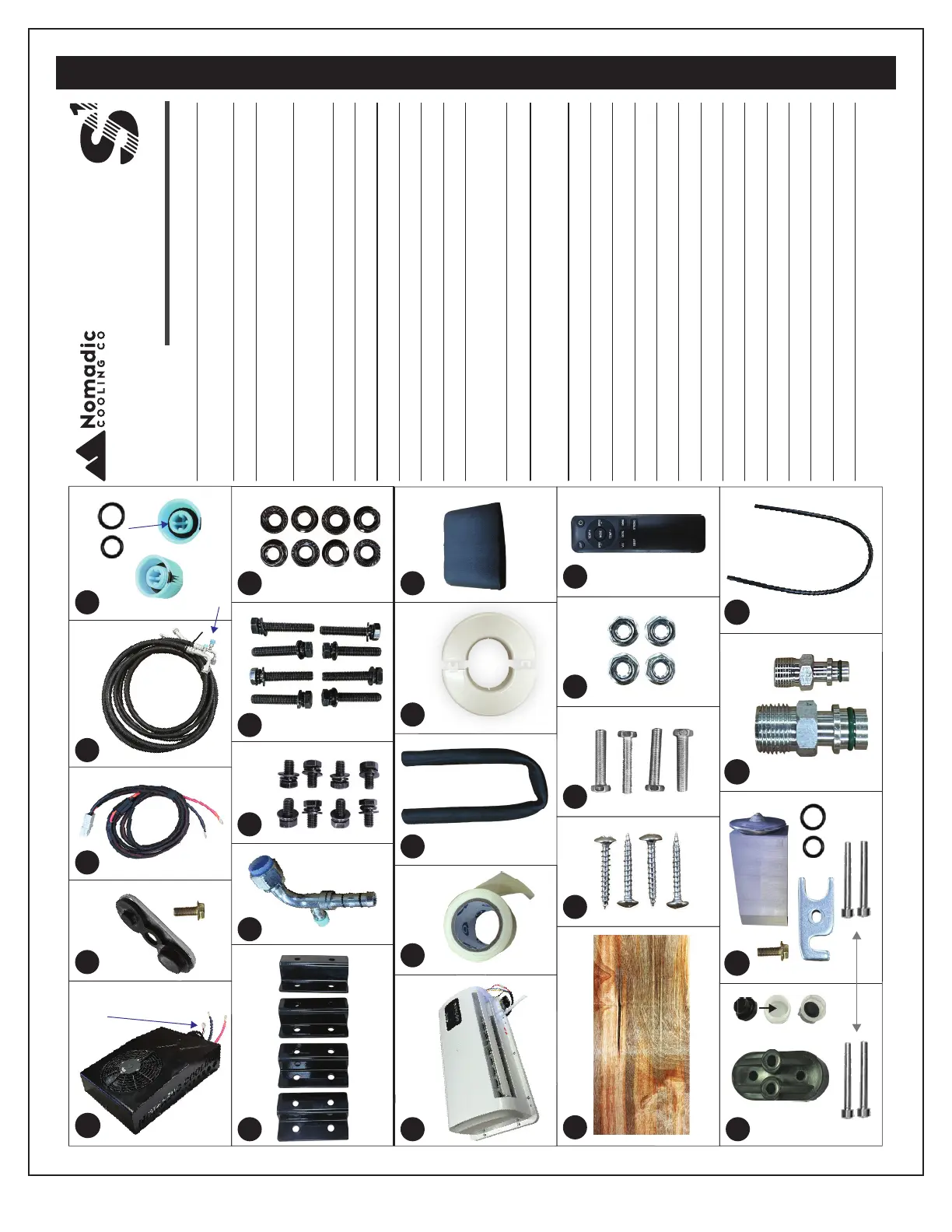

Box 1 (Host Box)
ID Qty Part Name √
A 1 Exterior unit, power harness*, communication
■
wires*, capped valves (Parts B)
B 1 Rubber stopper*, metal pate*, bolt*
■
C 1 9'10" power wire harness with 100A inline
■
fuse, Anderson style connector, copper rings
D 2 12' aluminum pipes and hoses:
■
3/4" high pressure, and 3/8" low pressure
E 2 Blue charging caps with rubber o-rings*
■
F 4 Mounting brackets
■
G 1 Elbow pipe with Schrader valve
■
H 8 Short back bolts, washers, lock washers
■
I 8 Long back bolts, washers, lock washers
■
J 8 Back nuts for long bolts
■
Box 2 (Interior Controller)
ID Qty Part Name √
K 1 Interior controller, communications wire harn-
■
ess*
,
drainage tube*, capped valves (Part U)*
L 1 Heat-reducing wrap
■
M 1 Long foam sleeve
■
N 1 White polyurethane wall sleeve
■
O 1 Back foam ring for wall sleeve
■
P 1 Interior mounting board (optional)
■
Q 4 Stainless steel mounting board wood screws
■
R 4 Stainless steel bolts for interior unit
■
S 4 Stainless steel nuts for interior unit
■
T 1 Remote (2 AAA batteries not included)
■
U 1 Back pastic cap*, dust covers*, 2 M4 bolts*
■
V 1 Expansion valve, bracket, 1+2 bolts, 2 o-rings
■
W 1 3/4" and 3/8" couplings
■
X 1 Drainage hose extension (optional)
■
NC-S
1
AC Unit includes:
WV X
A
Pre-connected to Schrader valves*
Communication
wire harness
pre-connected*
H
GF I
E
K
J
O
P
Q R
S
T
U
M N
*pre-connected/installed
O
C
