GATEWAY QUICK START GUIDE
May 2019 Information subject to change without notice. 7
Step 1c: PPPoE Dynamic IP Client Configuration
Enter p[ppoe] when prompted. Enter the following mandatory settings for a PPPoE connection with dynamic PPP IP
configuration shown in Figure 6.

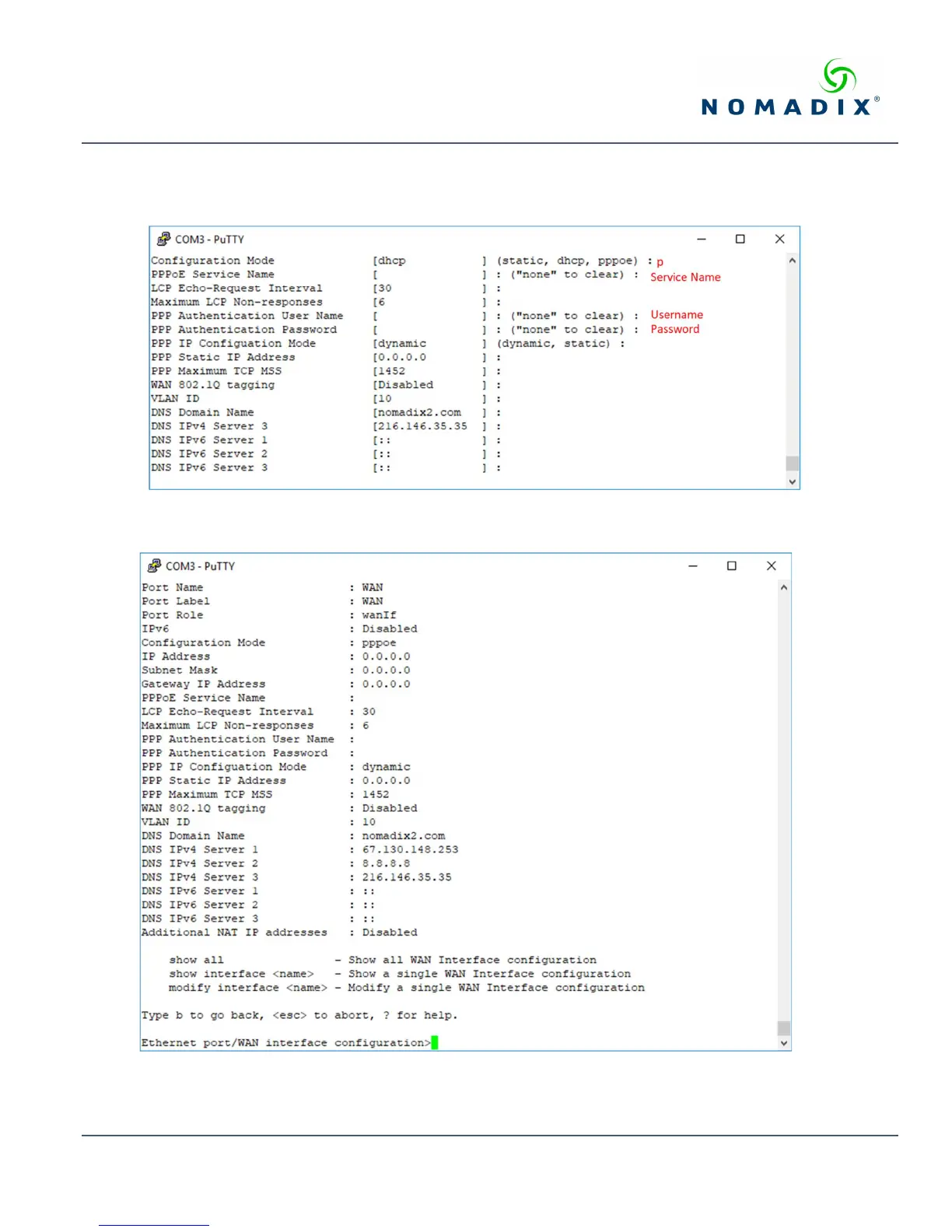

Figure 6: Selecting PPPoE with dynamic IP configuration
A WAN port summary page will then be displayed as shown in Figure 7.
Figure 7: WAN port PPPoE client configuration summary page
