member the bracket is mounted onto.
Cable-tie the connector in place. The cable
must not be allowed to hang below the
boom (Figure 6).

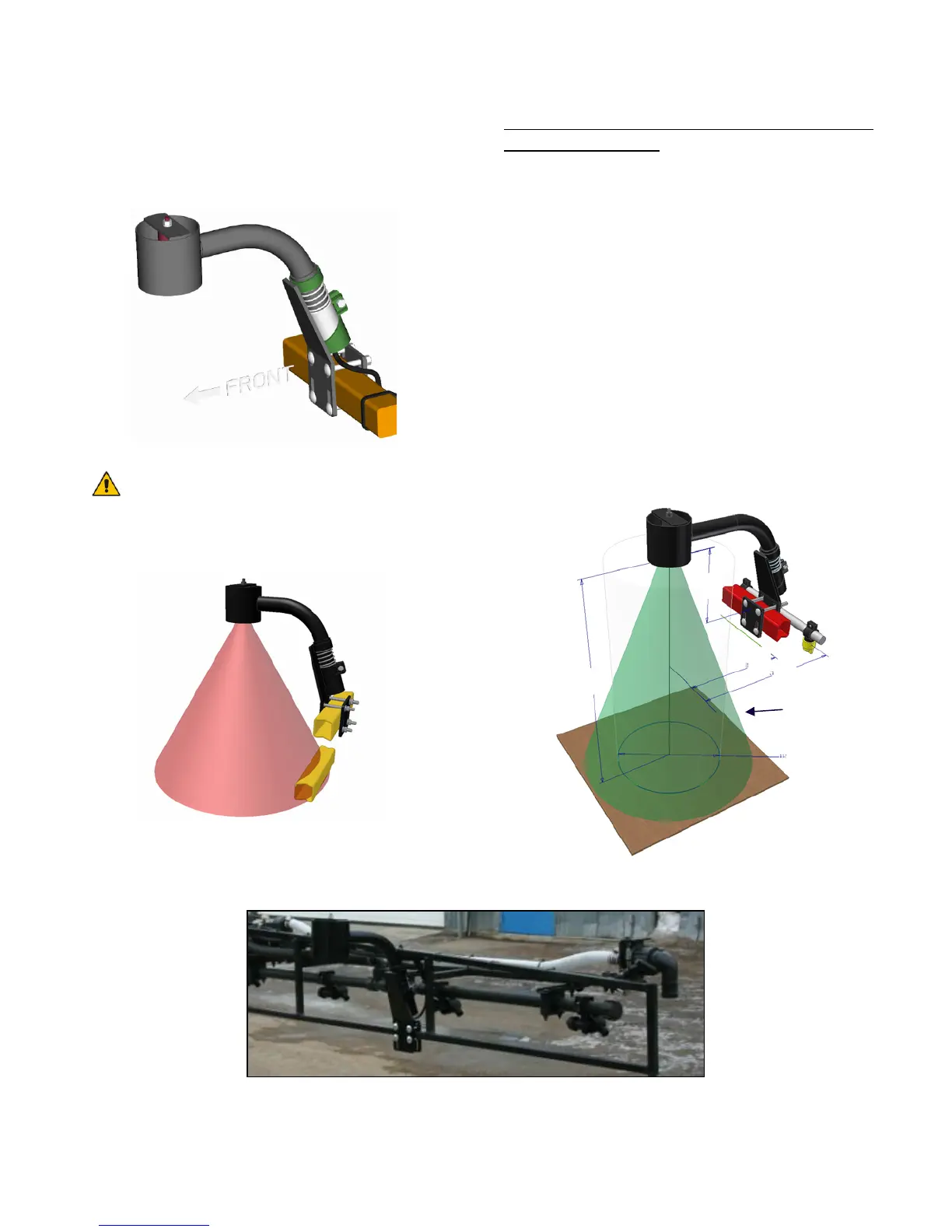

Figure 6 – Another Acceptable Mounting
Avoid mounting sensors in
locations where they may read
from parts of the boom as shown in
Figure 7.
Figure 7 – Poor Mounting
(Sensor Reading off Boom)
General mounting rules for UC4+
ultrasonic sensors:
a) In its lowest position, the sensor mouth
must be 9 inches or more from the
ground.
b) The bottom of the sensor must be at
least 9 inches in front of the spray
nozzles.
c) The bottom of the sensor must be at
least 9 inches above the spray nozzles.
d) Ensure that there are no obstructions
within a 12-inch diameter circle
projected directly below the center of
the sensor.
e) The sensor should be approximately
vertical at normal operating heights.
Figure 8 – Sensor Mounting Guidelines
Figure 9 - Wing Sensor Mounting
Ultrasonic
Acoustic Cone
