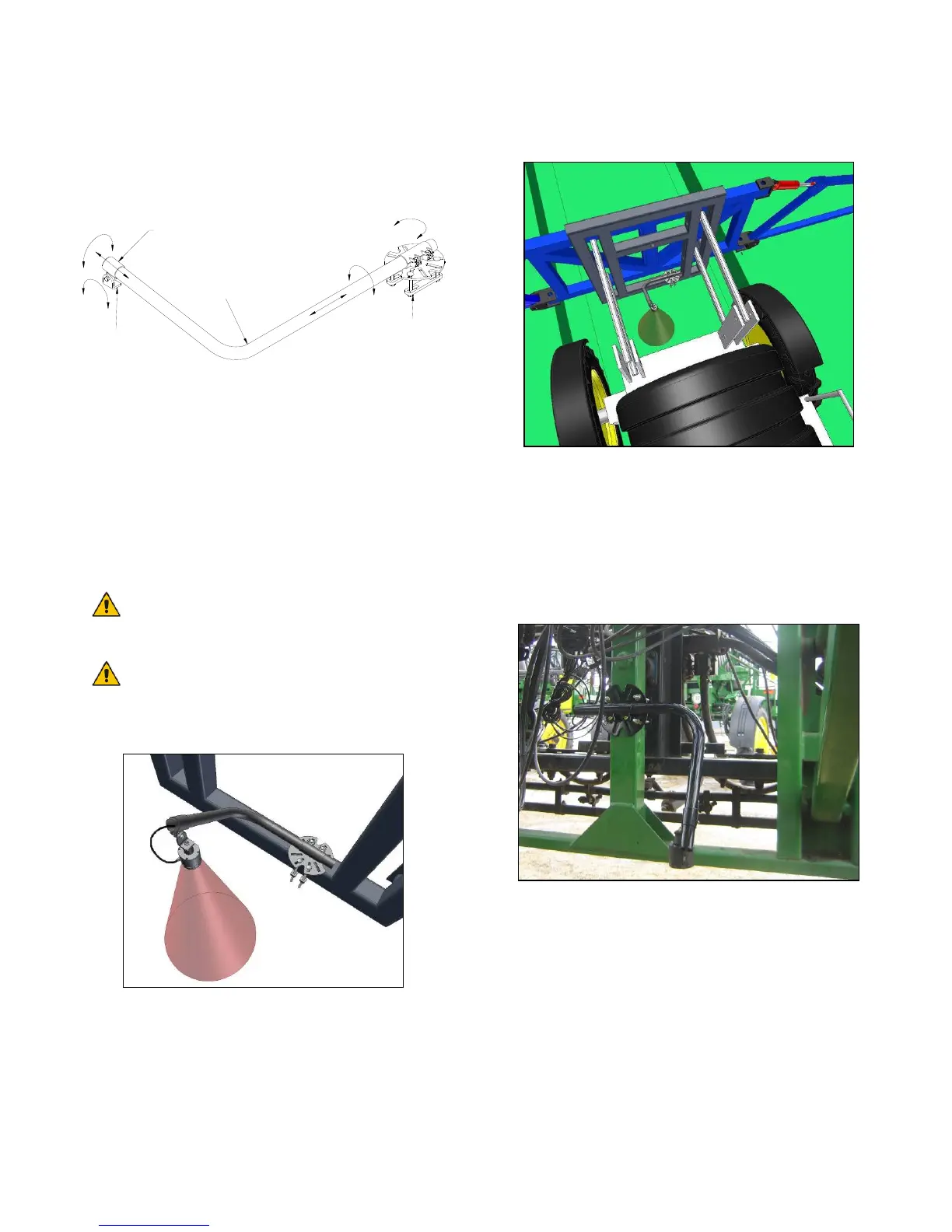

4.4 MAIN LIFT SENSOR INSTALLATION
1. Assemble the main lift sensor bracket (B14)
as shown in Figure 11.
Figure 11 – Main Lift Sensor Bracket
2. The bracket can then be mounted to the
lowest frame member on the center section
of the sprayer. The bracket should be
mounted so the sensor mounting collar is in
approximately the center of the sprayer and
ahead of the boom (Figure 12 and Figure
13).
The sensor mounting collar must
not be behind the sprayer’s wheel.
The General Mounting Rules for
UC4+ Ultrasonic Sensors, from the
previous section, must be followed.
Figure 12 – Main Lift Sensor Bracket
Mounting Position
3. Mount the sensor onto the sensor
mounting collar (Figure 12).
Figure 13 – Main Lift Sensor Mounted in
the Correct Location
A common mounting location for the main lift
sensor on a John Deere sprayer is shown in
Figure 14. If desired, the tube part of the
bracket can be cut to a shorter length.
Figure 14 - Mounting Location of Main Lift
Sensor
Bracket Tube
Sensor
Mounting Tab
Sensor Mounting
Colla
Bracket Base
