Norac UC4+ - Target Installation and Alignment

17
4.6 TARGET INSTALLATION AND ALIGNMENT
NOTE: It is very important that the
rods be installed on the right hand
side of the sprayer.
The sprayer must be level when
installing the UC4+ Roll Control
System. The sprayer booms
should be level as well, parallel to
the sprayer’s lift frame.
1. To ease the installation of the UC4+
Roll Control system, unfold the sprayer
on a level area and lower the center
section to three or four feet above the
ground. A ladder or step will also be
required to complete the installation.

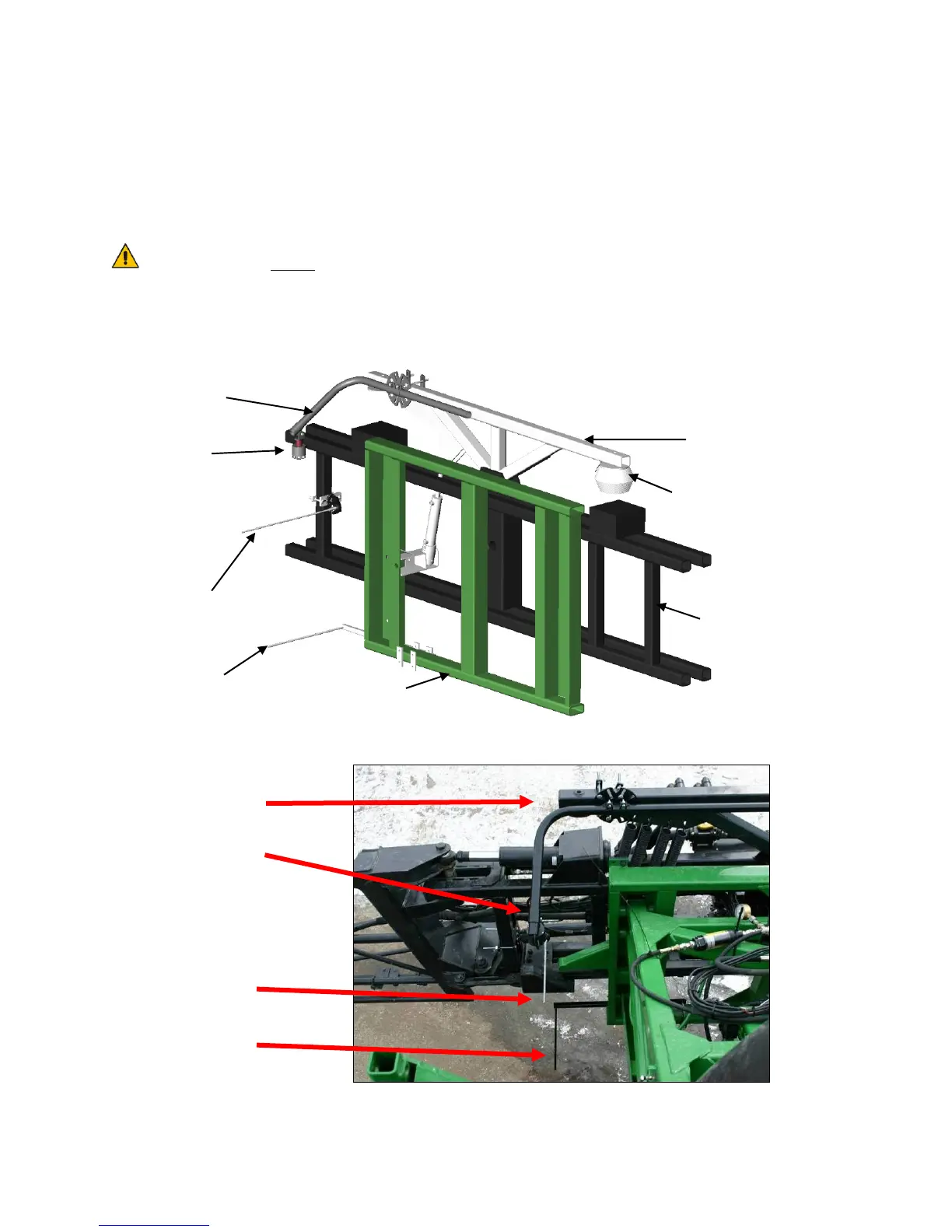

Figure 17 – Roll Control Items
Figure 18 – Typical Roll Control Install
Bumpe
r
Frame
Target
Roll
Control
Frame
Sprayer Pa
r
allel Lift
Frame
Sensor
Bracket
Roll
Sensor
Spring
Target
Boom Centre
Frame
Frame Target (B07)
Spring Target (B12)
Sensor Bracket (B11)
Remove the Rubber
Bumper
