17. Tee the Load Sense line (H06) directly in to
the port S of the shuttle valve manifold using
fitting F03 as shown in Figure 35, Figure
36 or Figure 37.
There are multiple versions of JD
load sense blocks on sprayers.
Choose the picture that most closely
resembles your sprayer valve block
and tee in accordingly.
On some installs the Load sense hose
(H06) may be too long and the excess
hose must be coiled and secured
where it will not interfere with other
components.

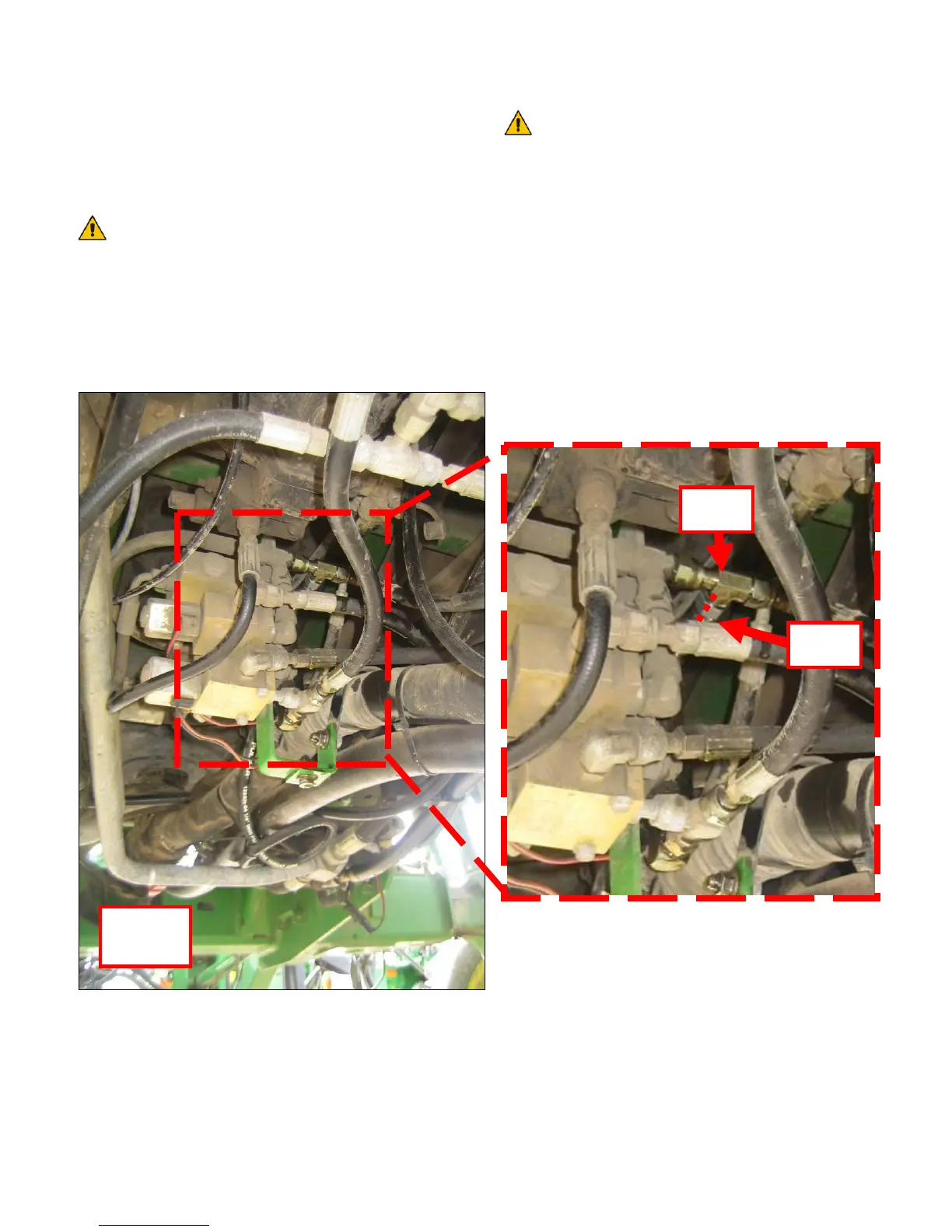

Figure 35 - Looking towards the rear of the sprayer on a JD4700, JD4710
Rear of
Sprayer
F03
H06
To Next Page
