NORBIT iWBMS - Page 28

10.4.3 User Manual Contents April 17, 2020
Firmware: 5.2.1 Page 28 of 142

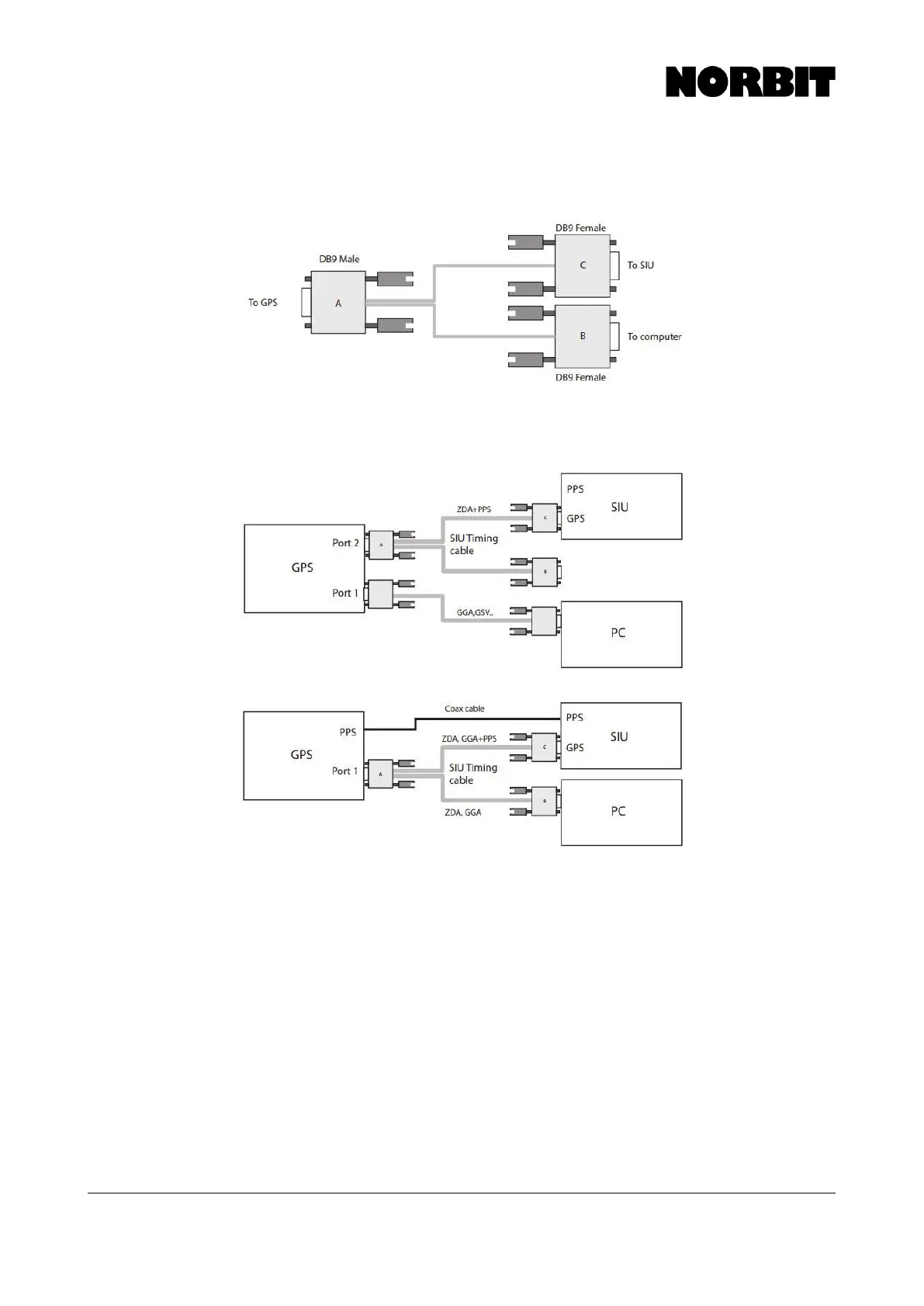

To connect a GNSS to a stand-alone WBMS, the accompanying timing cable should be used. The
cable splits the signal so that both the survey computer and SIU can be connected to the same port
from the GNSS.
The following are two examples of ways to connect the SIU and PC to the GNSS:
