Step 6. Configure Multibeam Device

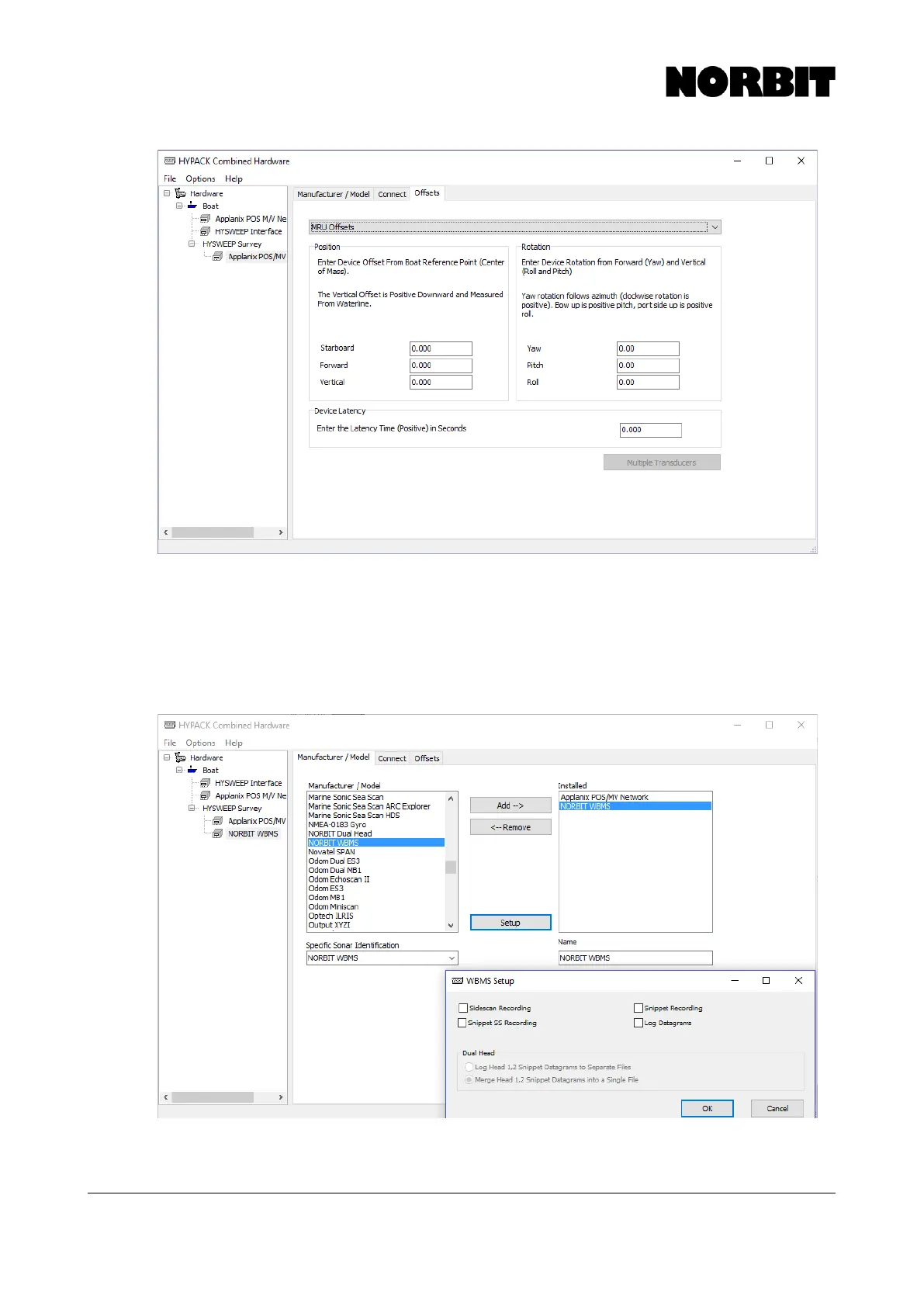

Next, go to HYSWEEP Survey and select NORBIT WBMS as shown below. In WBMS Setup,
select Sidescan Recording for recording Sidescan only, or Snippet SS Recording for Snippet-
Sidescan, or Snippet Recording for logging Snippets. If Snippet data is requested, users must
also select Log Datagrams. Note that the bathymetry data automatically includes beam intensity
values at the bottom detection point, which provides coarse backscatter, separate from side scan
and snippets.
