1200 SERIES - PARTS LIST- Page 16

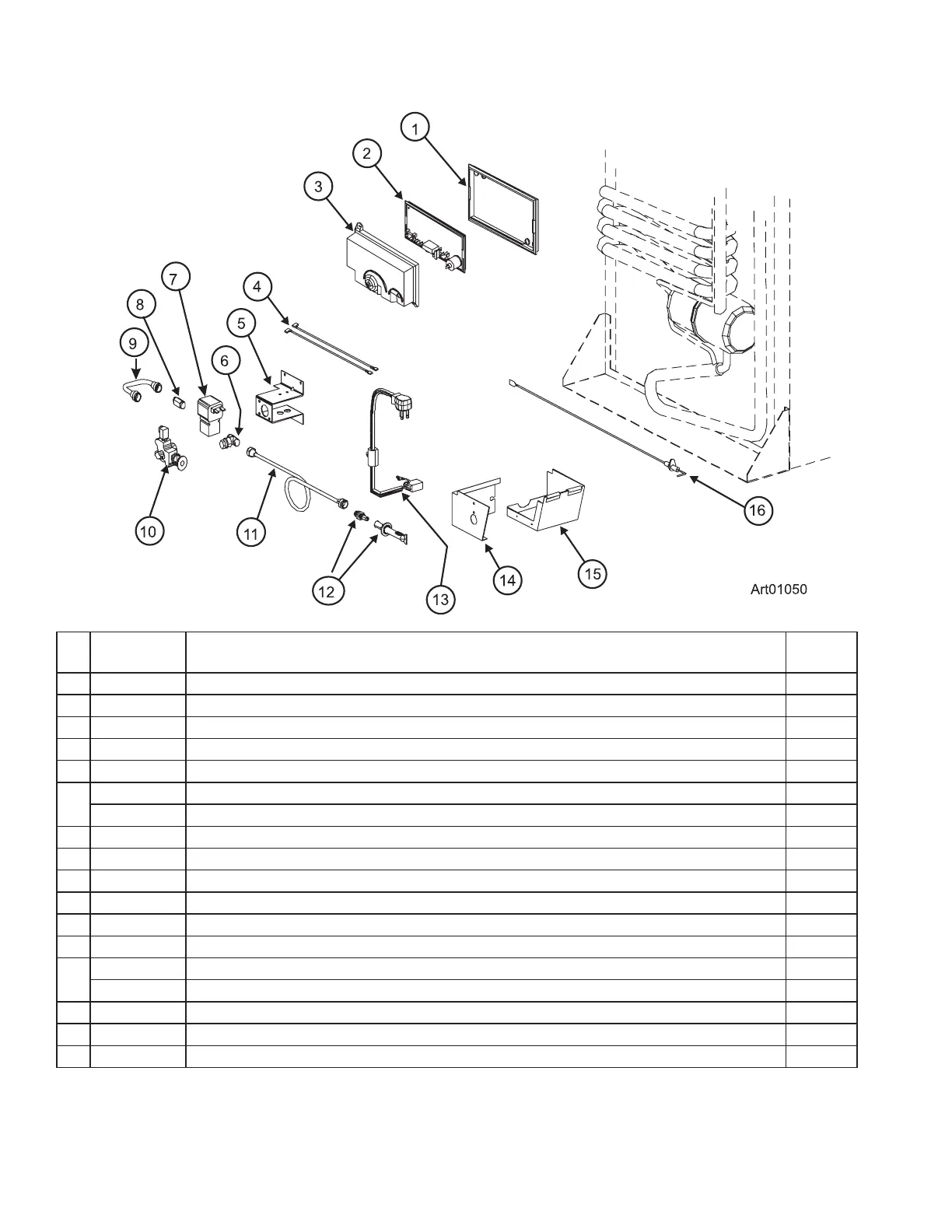

CABINET - REAR VIEW CONTROLS (02/14/1999 & BEFORE) - 1200 SERIES (G/E)
NOTE: FOR MODELS WITH A SEPERATE MANUAL SHUT OFF VALVE (SERIAL # 300000 TO 657908).
NO. PART # DESCRIPTION
1200LR
SERIES
1 618186 BASE-POWER BOARD X
2 624869 KIT-CONTROL ASSY/POWER BOARD/1200 SERIES/GRAY (SERIAL # 0300000 TO 0657908) SEE NOTE
3 618185 COVER-POWER SUPPLY X
4 621448 WIRE-WHITE/9"/GAS VALVE (2 PER ASSEMBLY) X
5 61694022 BRACKET-MOUNTING/GAS VALVE X
6 61594422 PRESSURE TAP X
61445322 PLUG-1/8" FOR PRESSURE TAP X
7 621334 KIT-GAS VALVE/BRACKET/WIRES X
8 61546822 CONNECTOR-MALE X
9 61694622 UNION TUBE X
10 61694922 MANUAL SHUT OFF VALVE ASSY (USE 621445) X
11 618937 BURNER TUBE (USE 621445) X
12 629013 KIT-BURNER ORIFICE ADAPTER ASSY X
13 61554422 CORD-AC POWER (SERIAL # 300000 TO 657908 FOR MODEL 1200LRIM) X
618406 CORD-AC POWER/IM (SERIAL # 300000 to 657908) X
14 618910 COVER ASSY-BURNER BOX X
15 618902 BASE-BURNER BOX X
16 61692222 ELECTRODE-SPARK/SENSE/SINGLE ELECTRODE/0.25" X
NOTE: IF THE CONTROL ASSY-OPTICAL HAS BEEN REPLACED WITH A KIT-CONTROL ADAPTOR, THE POWER BOARD MUST BE
REPLACED WITH A NEW KIT-CONTROL ADAPTER.
To Next Page
