Norcold 1200AC - Cabinet Assembly - Rear View (Cooling Unit); Cooling Unit Components; Heater and Burner Box Components; Fan and Thermostat Components

1200 SERIES - PARTS LIST- Page 15

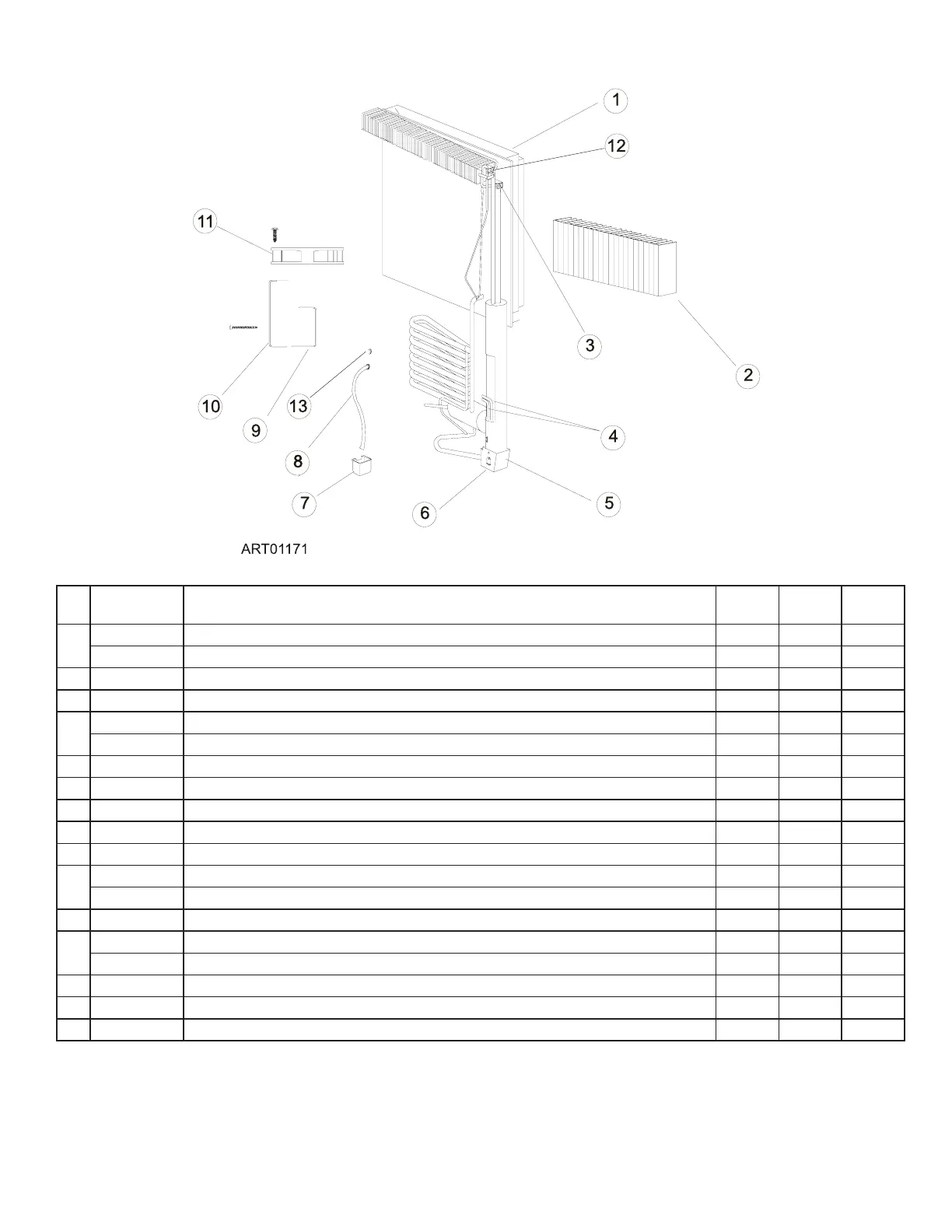

CABINET ASSEMBLY - REAR VIEW (COOLING UNIT AREA) - 1200 SERIES
NO. PART # DESCRIPTION
1200AC
SERIES
1200LR
SERIES
1201LR
SERIES
1 634746 NSC SYSTEM PACK-COOLING UNIT/STEP (REF SERIAL # 8835499 & ABOVE) X X X
634747 NSC SYSTEM PACK-COOLING UNIT (REF SERIAL # 8835498 & BELOW) X X X
2 618785 FINS-EVAPORATOR X X X
3 629100 KIT-SERVICE/CAP-HEAT DEFLECTOR X X X
4 618872 HEATER-AC (2 PER SYSTEM)(COOLING UNIT SERIAL$ 11231145 & BELOW) X X X
630807 HEATER-AC/BACKER (2 PER SYSTEM)(COOLING UNIT SERIAL# 11231146 & ABOVE) X X X
5 618902 BASE-BURNER BOX X X X
6 618910 COVER ASSY-BURNER BOX X X X
7 622546 DRIP CUP-REAR/PLASTIC X X X
8 622392 DRAIN HOSE ASSY X X X
NS 622857 KIT-DRAIN HOSE REPAIR X X X
9 628747 BRACKET-DC FAN (2 PER SYSTEM)(SERIAL # 9144576 & ABOVE) X X X
618857 BRACKET-DC FAN (2 PER SYSTEM)(SERIAL# 914575 & BELOW) X X X
10 618912 SUPPORT-DC FAN (2 PER SYSTEM) X X X
11 628685 FAN-EXTERNAL DC (2 PER SYSTEM)(914576 & ABOVE) X X X
618856 FAN-EXTERNAL DC (2 PER SYSTEM)(300000 TO 914575) X X X
12 618093 THERMOSTAT-DC FAN/THERMO DISC X X X
13 61505122 HOSE CLAMP (SERIAL # 300000 TO 1035934) X X
NS 618915 BAFFLE DIFFUSER/WIRE ASSY-COOLING UNIT/55.15” (NOT SHOWN) X X X
NS = NOT SHOWN
